Wiznet Rudge Pico is an Industrial Digital 8 Input/ 8 Output PLC device with PoE and RS-485 connectivity.

Alan

Published April 03, 2023

104 UCC

42 WCC

129 VAR

Original author: Manuel Alejandro Iglesias AbbatemarcoOriginal source (new tab)

Project description

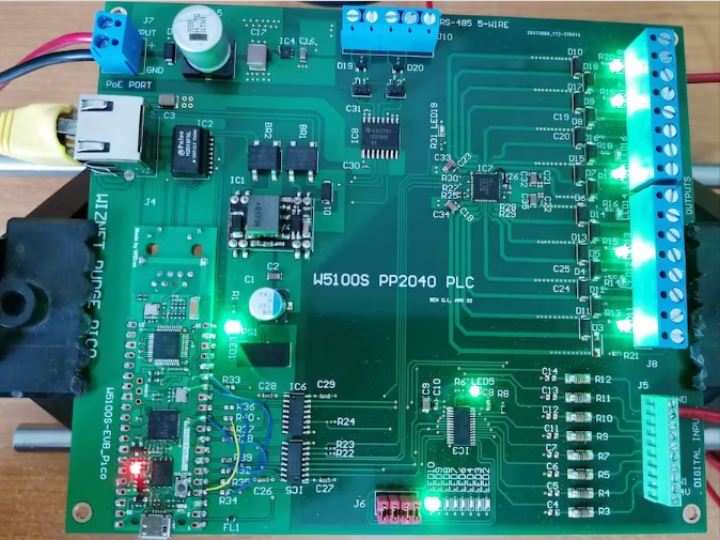

Story About. The W5100S-EVB-Pico board from Wiznet is an Ethernet ready compatible Rapsberry Pi Pico board. The board uses W5100S IC from Wiznet to provide Ethernet and RP2040 microcontroller from Raspberry Pi. Is a nice compact board that can be used for many project, it can run be programmed in micropython and arduino for easy development, or using the C SDK for full control. I decided to create a Industrial board capable of doing Digital Inputs and Outputs and well as communications over RS-485. In addition I have added Power Over Ethernet hardware and fully isolation of MCU from field…
