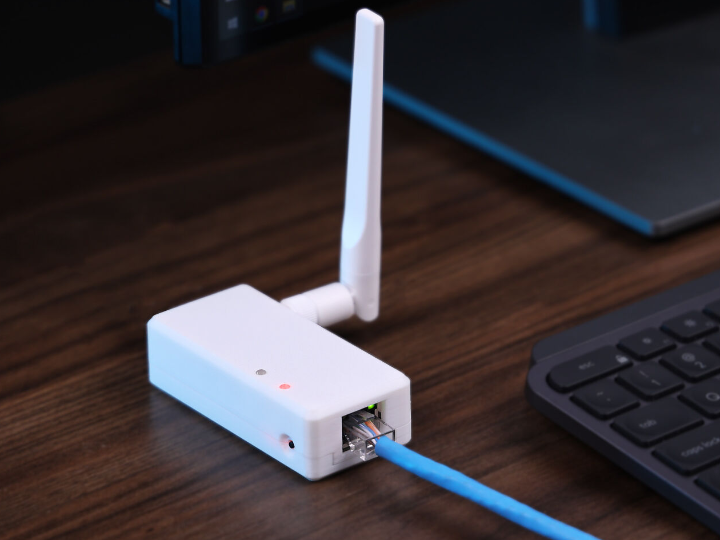

XIAO W5500 Ethernet Adapter

A compact PoE development board featuring the XIAO ESP32S3 Plus, with an integrated, isolated PoE module

COMPONENTS

PROJECT DESCRIPTION

Feature

High-Performance Microcontroller: Built on the XIAO ESP32S3 Plus platform, our board delivers robust processing power and efficient wireless connectivity, making it ideal for complex IoT and embedded applications.
Integrated PoE with Isolation & Power Conversion: Featuring a robust PoE module with built-in isolation, the board safely accepts a 12V Ethernet power input. A high-efficiency TPS563201 buck converter then steps the 12V down to a stable 5V rail, providing optimal power to the XIAO ESP32S3 Plus.
Reliable Ethernet Connectivity: Equipped with an onboard W5500 Ethernet chip and a standard RJ45 jack, the board ensures stable wired network access for seamless data transmission and remote management.
Versatile I/O Options: With dual-sided I/O outputs, you can easily expand functionality and interface with a range of sensors and peripherals to customize your application to exact specifications.
Compact & Ready-to-Deploy Design: Combining integrated PoE, isolation circuitry, and Ethernet connectivity in a small form factor, this board simplifies prototyping and enables efficient deployment in smart home, industrial automation, or network appliance projects.

Specification

Parameter	Description
MCU	XIAO ESP32-S3 Plus
Antenna	2.4GHz Rod Antenna (2.81dBi)
USB Type-C	Input voltage (Type-C): 5V
PoE Chip	MQ7813T120
PoE Power Supply	PoE IEEE802.3af Ootput Current: 12V/1.1A High Efficiency 86% (Input 48V, Load 12V@1.1A)
Ethernet Chip	WIZnet W5500
Ethernet Interface	RJ45 10/100Mbps Ethernet
TCP/IP Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
LED Indicator	Power x 1 User x 1
Button	Reset
I/O Interface	XIAO ESP32-S3 Plus: D0/D2/D3/D4/D5/D6/D7/D11/D12/D13/D14/D15/D16/D17/D18/D19
Product Size	83 x 118 x 26 mm
Product Weight	75g
Enclosure	3D-Printed in White

Hardware Overview

Application

Documents

ECCN/HTS

Part List

XIAO W5500 Ethernet Adapter	×1
2.4GHz Rod Antenna (2.81dBi) for Seeed Studio XIAO	x 1
