T-ETH-Elite

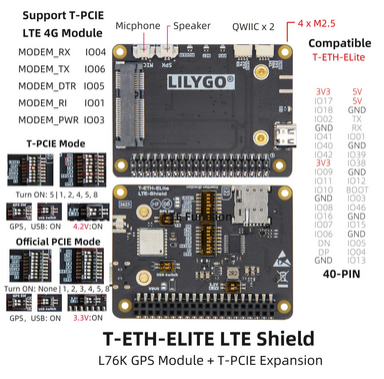

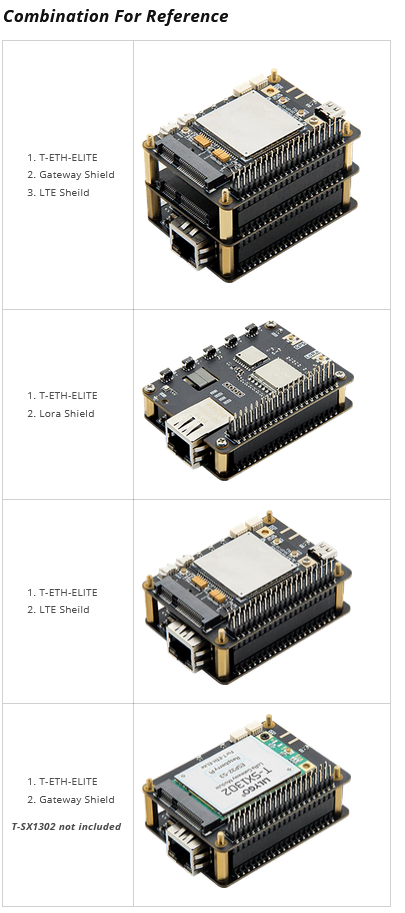

It is based on ESP32-S3+Ethernet POE as the mainboard. By expanding the T-SX1302+T-PCIE 4G module expansion board
Introduction
In the world of Internet of Things (IoT) and embedded systems, the need for powerful, versatile development boards with robust connectivity options is ever-increasing. The T-ETH Elite 1 by LilyGO is an advanced development board based on the ESP32 microcontroller, equipped with Ethernet capabilities. This board provides a comprehensive solution for developers looking to create networked applications with ease and efficiency. This article explores the features of the T-ETH Elite 1, its integration of WIZnet technology, and the potential applications of this versatile development platform.
Project Description

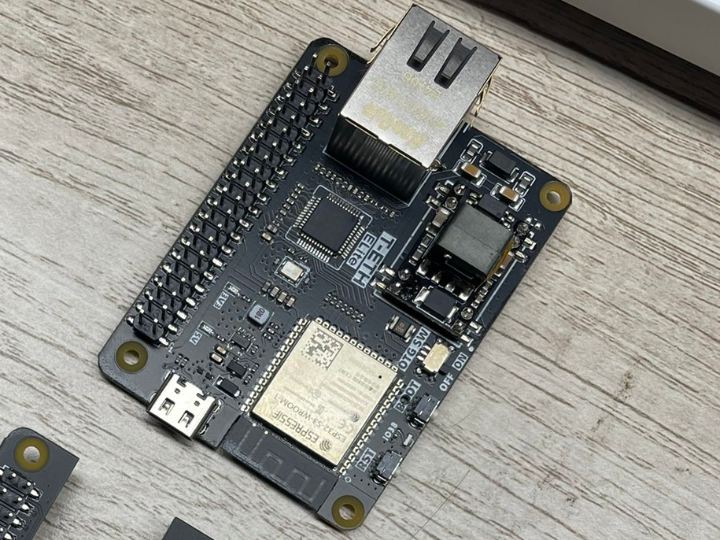

The T-ETH Elite 1 is a feature-rich development board that combines the powerful ESP32 microcontroller with Ethernet connectivity. Designed for IoT applications, this board supports a wide range of networking capabilities, making it an ideal choice for projects that require reliable and high-speed data communication.

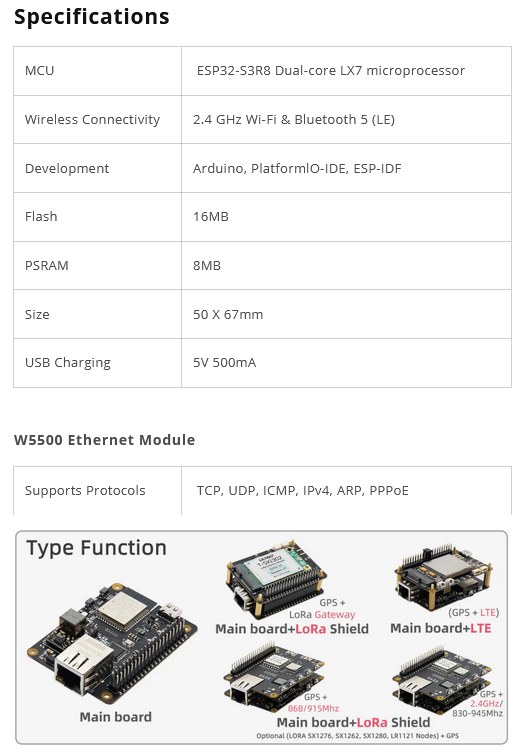

Key Features:
- ESP32 Microcontroller: Equipped with dual-core Xtensa LX6 processors, Wi-Fi, and Bluetooth capabilities, the ESP32 provides robust processing power and versatile connectivity.

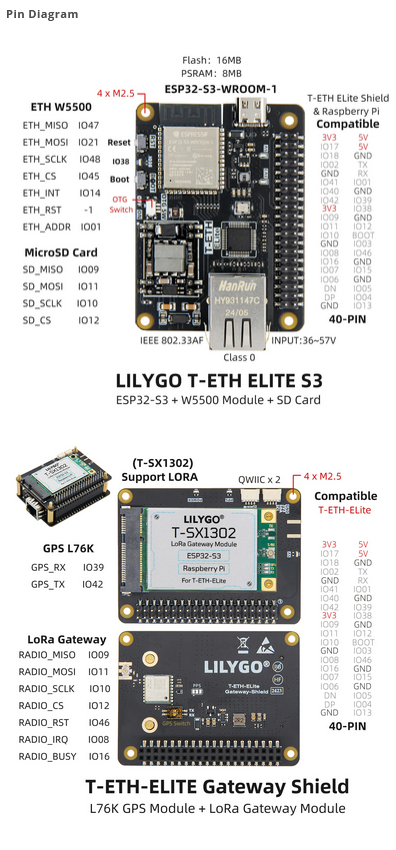

- Ethernet Connectivity: The board includes an Ethernet module, specifically the WIZnet W5500, which ensures stable and high-speed network communication.
- Rich Interface Options: The T-ETH Elite 1 offers multiple GPIOs, ADCs, DACs, I2C, SPI, UART, and PWM, allowing for extensive interfacing with sensors, actuators, and other peripherals.
- Storage and Memory: Features ample flash storage and RAM, making it suitable for complex applications that require significant processing power and memory.
- Power Management: Supports various power supply options and efficient power management, suitable for both battery-operated and mains-powered applications.
- Easy Programming and Development: Compatible with popular development environments such as Arduino IDE, PlatformIO, and ESP-IDF, simplifying the development process for both beginners and experienced developers.

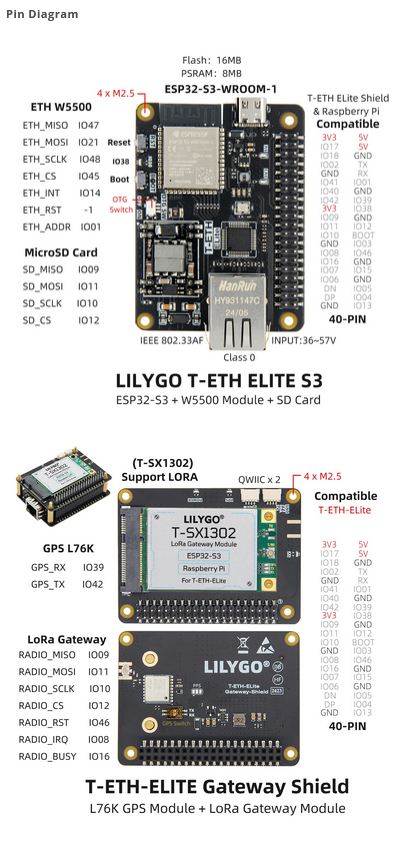

How and Why WIZnet Product Was Used
The T-ETH Elite 1 leverages the WIZnet W5500 Ethernet module to provide reliable Ethernet connectivity. The W5500 is known for its high performance, low power consumption, and ease of integration, making it an excellent choice for enhancing the network capabilities of the ESP32 microcontroller.
Benefits of Using WIZnet W5500:
- Reliable Ethernet Connection: The W5500 provides a stable and consistent Ethernet connection, crucial for applications requiring uninterrupted network communication.
- High Data Transfer Rates: Capable of handling high-speed data transfer, the W5500 ensures efficient and timely data communication.
- Hardware TCP/IP Stack: The W5500 includes a hardware-implemented TCP/IP stack, offloading the network processing from the ESP32 and improving overall system performance.
- Ease of Integration: Designed to integrate seamlessly with microcontrollers, the W5500 simplifies the addition of Ethernet capabilities to the T-ETH Elite 1.
By incorporating the WIZnet W5500, the T-ETH Elite 1 achieves a robust and efficient network setup, enhancing its functionality for a wide range of IoT applications.
About LilyGO
LilyGO is a renowned manufacturer of development boards and modules for IoT and embedded systems. Their products are known for their quality, versatility, and affordability, making them popular among hobbyists, educators, and professional developers. LilyGO's commitment to innovation and customer satisfaction is evident in their comprehensive product lineup and the continuous development of new and improved solutions for the IoT market.
Conclusion
The T-ETH Elite 1 by LilyGO is a powerful and versatile development board that combines the capabilities of the ESP32 microcontroller with the reliable network connectivity of the WIZnet W5500 Ethernet module. This integration provides developers with a robust platform for creating networked IoT applications, offering a wide range of features and extensive interfacing options.
LilyGO's dedication to delivering high-quality development tools is reflected in the T-ETH Elite 1, making it an ideal choice for both beginners and experienced developers looking to create innovative and efficient IoT solutions. Whether you are working on a simple networked sensor project or a complex industrial automation system, the T-ETH Elite 1 offers the performance and flexibility needed to bring your ideas to life.
