Redesigned from our popular Guardian III series, Our new modular Guardian device is coming: The new device supports more Northbound and southbound connections, We can provide Wi-Fi, Ethernet, and cellular for northbound to connect your device to the Azure Sphere IoT cloud. we support more southbound devices such as Bluetooth sensors, LoRa devices, southbound Ethernet devices, RS485/RS422 devices, and CAN devices. Our phone App can help you configure the Guardian.

Specifications:

• WF-M620-RSD2 module
• Northbound link:
  • Dual Band (2.4GHz & 5GHz) Wi-Fi
  • 4G/LTE (Cat-M1/Edge)
  • 10 Base-T/100 Base-TX Ethernet
• Southbound link:
  • Bluetooth 5.0
  • 10 Base-T Ethernet
  • RS 232/RS422/RS485
• GNSS
• OTA
• SD Storage
• Programmable GPIO
• Modbus protocol supported
• 3 LEDs:
  • 2 programmable LEDs
  • 1 BLE activity LED
• Micro-HDMI: MCU programming and debugging port
• AC adapter: 9~36V
• Dimensions: 95mm*95mm*25mm
• Enclosure: Mountable, black
• Operating temperature: -10 °C to 60 °C

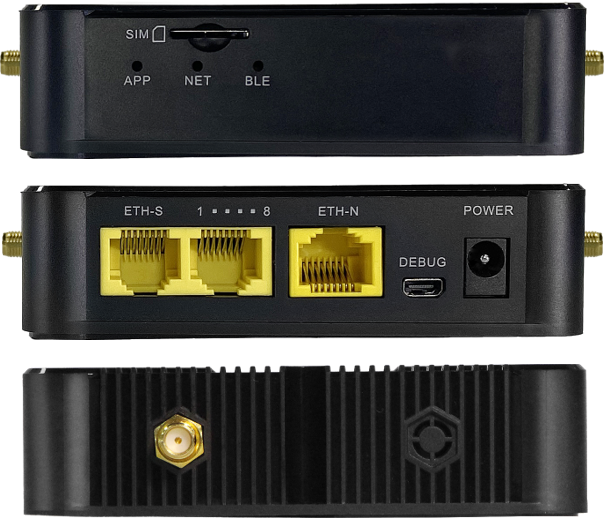

Ports:

• RJ45: For Southbound Ethernet.
• RJ45: For Northbound Ethernet.
• RS 232/422/485 port
• SIM card slot
• Debug Port
• GPIO
• Power Port: DC Power supply.
• 3 LEDs

We currently accepting orders for four standard models for customers with different southbound connectivity requirements. All models support Wi-Fi, Ethernet, and optional cellular.
