MyGateway

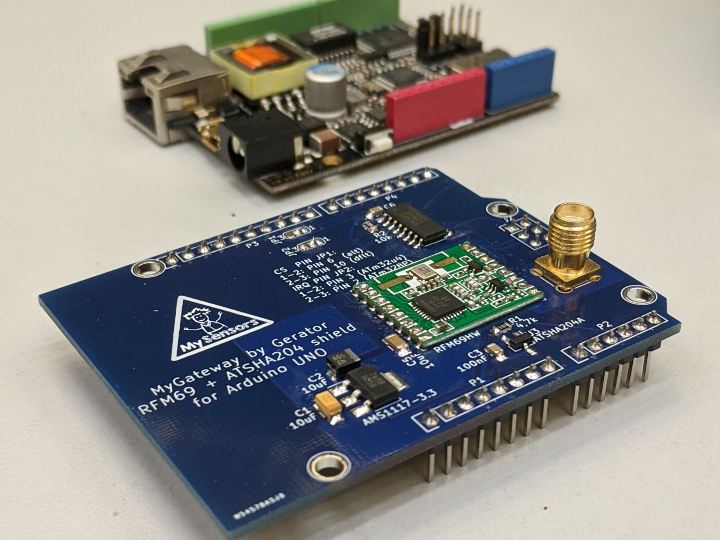

RFM69 + ATSHA204A Shield for Arduino.

COMPONENTS Hardware components

x 1


x 1


PROJECT DESCRIPTION

Original : https://www.openhardware.io/view/8223/MyGateway#tabs-instructions

Configuration

There are two jumpers to configure CS and IRQ RFM69 pins. JP1 is used to choose between pins 6 or 10 for the RFM69 CS line. This is necessary to use an ethernet module in the same SPI bus. JP2 is used to choose between pins 2 or 3 for the RFM69 IRQ line. Default for ATmega328P seems to be pin 2 but for ATmega32u4 is pin 3.

  • Serial gateway using an Arduino UNO JP1 and JP2 should be both 2-3.
  • Ethernet gateway using Arduino UNO with Ethernet shield stacked JP1 should be 1-2 and JP2 2-3.
  • Ethernet gateway with DFRobot DFR0342 JP1 and JP2 should be both 1-2.

Compact POE powered MySensors ethernet gateway

I have been using the shield with DFRobot DFR0342 board with success. This is a very compact POE powered ethernet gateway setup. DFRobot DFR0342 board is basically an Arduino Leonardo board with built in W5500 ethernet module and POE powered.

Documents
  • Gateway32u4-W5500.ino

  • Design Files
