Testing Wizfi360io-H using 3.3V FTDI Cable
am working on a project where I want to use a WizFi360 to provide WiFi services to a Teensy 4.0. It looks (at least at first glance) much l
COMPONENTS
Hardware components
WIZnet - WizFi360
x 1
PROJECT DESCRIPTION
Original : https://bigdanzblog.wordpress.com/2023/01/06/testing-wizfi360io-h-using-3-3v-ftdi-cable/
Author : Dan TheMan
Published On : 2023-01-06
The author working on a project where he wants to use a WizFi360 to provide WiFi services to a Teensy 4.0.

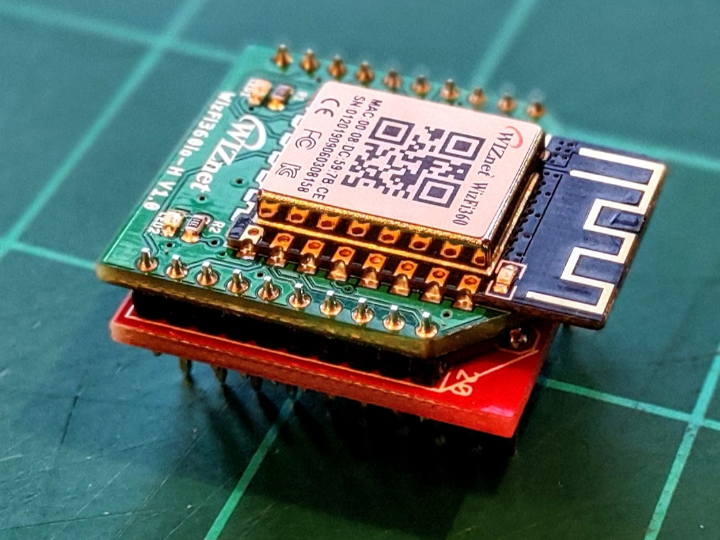

He needs a 2.54mm pitch module, but WizFi360 has a 2mm pitch.

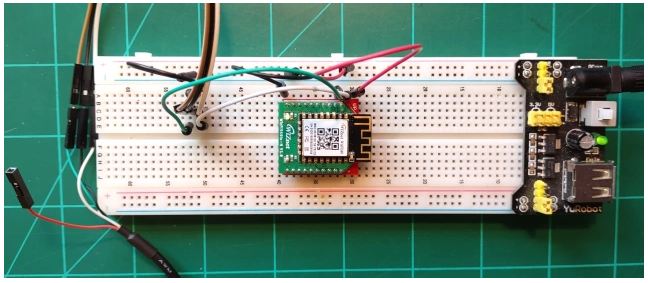

So he bought some PCB to convert the pitch. Finally, he can check the ready and AT-OK.
It is a well-written post to follow for beginners.
Thank you for reading.
