ESPRTK NTRIP Caster Server Base F9P Ardusimple ESP32 WIFI Ethernet DDNS AGOPENGPS RTK ? James Duggan

COMPONENTS Hardware components

- ESP32

x 1

- NTRIP/MQTT RTK Base Station

x 1

- W5500 Module

x 1

Software Apps and online services

- CORS RTK SERVER

x 1

PROJECT DESCRIPTION

Original : https://esprtk.com/james_duggan_agopengps_ntrip_caster_server_rtk/

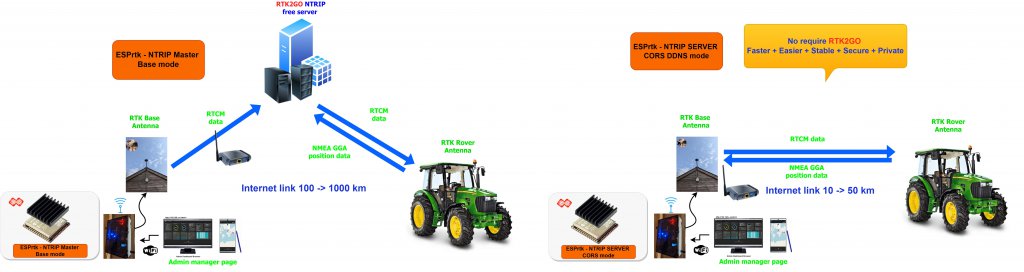

[embed]https://youtu.be/lc_2h__7QOc[/embed] Hello ESPrtk User and happy to the 2022 summer ! This is the ESPrtk NTRIP Base + CORS project of James Duggan . (NTRIP CORS Server without rtk2go) He used ESP32 DEV kit and F9P Ardusimple board/module to build an RTK CORS Server for his AGOPENGPS tractor . Initially he had a problem with the hardware but then everything was resolved. Then he experimented with building NTRIP Base station with ESPrtk WIFI and Ethernet.

App Build : NTRIP/MQTT RTK Base Station+Rover+CASTER
ESP32 : ESP32 DEV KIT C Espressif (?ESP32_WROOM_32U?or?ESP32_WROOM_32UE?CHIP)
RTK GNSS: F9P or PX1122R
Display: OLED SSD1306 0.96 inch or SH1106 1.3 inch( option !)
Ethernet: W5500 ( option !)
Power supply: 5V 2.5A Adapter
Other: LED , Button, Switch , 2.4Ghz WiFi Antenna , GNSS RTK Antenna, RJ45 Etheret cable, Micro USB Cable , 3.3V Active Buzzer , …
