M5Stack ATOM series, powered by the W5500 ch
Compact PoE Ethernet base for M5Stack ATOM series, powered by the W5500 chip. Supports IEEE 802.3 AF PoE and 10/100 Mbps Ethernet for reliable wired IoT and emb

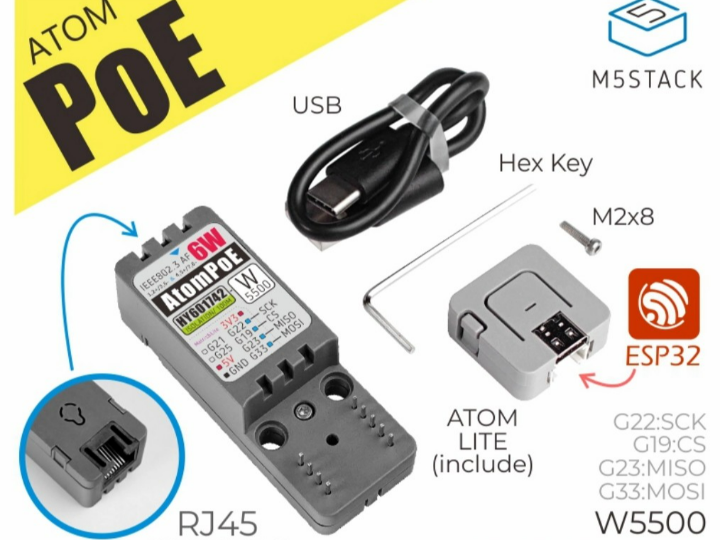

The ATOM PoE from M5Stack is a compact PoE-enabled Ethernet controller base module designed for ATOM series development boards. With an integrated W5500 chip supporting hardware TCP/IP stack and PoE power delivery (IEEE 802.3 AF), this board simplifies wired network connectivity and power supply for embedded and IoT projects.
Description
The ATOM PoE module brings together reliable wired Ethernet communication and Power over Ethernet (PoE) in one compact form factor. Built around the W5500 Ethernet controller, it features eight independent hardware sockets, full TCP/UDP/ICMP/IPv4/ARP/IGMP/PPPoE protocol support, and 10/100 Mbps link capability. PoE support (IEEE 802.3 AF) allows you to power the device directly from a PoE hub or switch—reducing wiring complexity and overall system cost. Measuring only 24 × 48 × 18 mm, the ATOM PoE is ideal for remote control, industrial IoT, and embedded systems requiring robust wired connectivity.
