Design and Implementation of Medical Negative Pressure Machine Monitoring System Based on the IoT

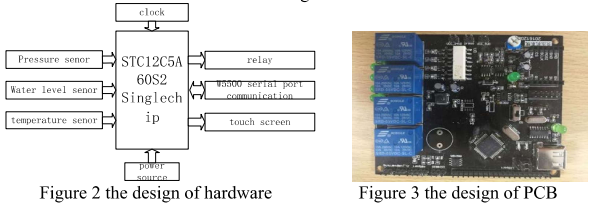

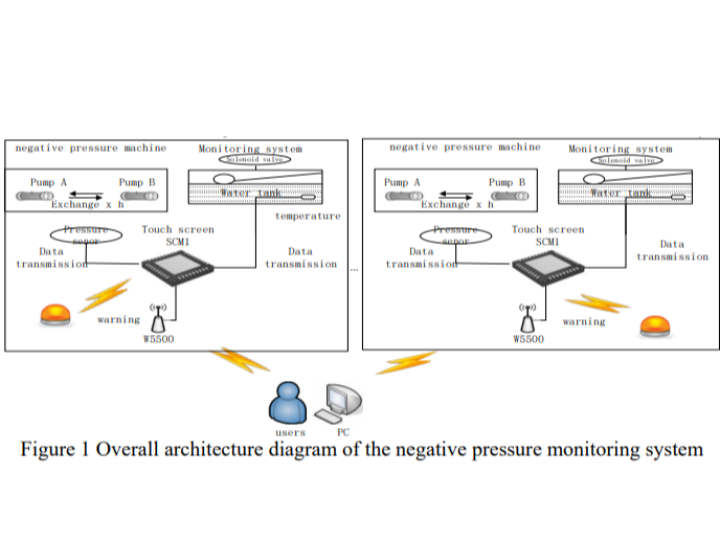

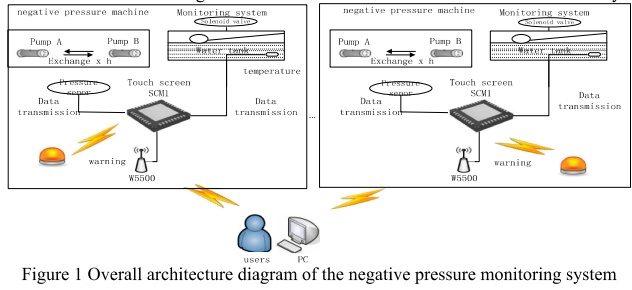

The system is constituted by several modules of pressure, water level, temperature, serial communication and touch screen control.
7
Components
Hardware components
SparkFun - Altitude/Pressure Sensor Breakout MPL3115A2
x 1
Atlas Scientific - 8:1 Serial Port Expander
x 1
LUSTER ELECTRONICS - Water Level Depth Detection Sensor
x 1
electronicscomp - Water Temperature Sensor
x 1
Electronicscomp - Touch Screen TFT Display Shield
x 1
Project description
Introduction The negative pressure is mainly used for the suction of sputum, blood, pus and other pollutants in the patient's body. However, most of the medical negative pressure machines' intelligence are not convenient and the machine can cause risks. So it is necessary to design an automatic monitoring system which can behave better. This system can save energy greatly and improve the life of the vacuum pump. The technology is involved in the local network or the Internet and other communication technologies to connect people and things together in a new way, which is made use of to…
