Are you curious about the intricate world of Ethernet cables and how they power our connected lives? In this comprehensive guide, we'll unravel the mysteries of Ethernet cables, exploring their types, features, and how they impact your network's performance.

Hello and welcome to our deep dive into the fascinating realm of Ethernet cables! In today's digital age, understanding the backbone of our internet and network connections is more crucial than ever. Whether you're setting up a home network, managing a bustling office environment, or simply curious about the cables that keep us connected, this article is your go-to resource.

Ethernet cables, often unnoticed yet vital, are the lifelines of our internet connectivity. They come in various types and categories, each designed to meet specific networking needs and environments. From the humble beginnings of Cat1 to the advanced capabilities of Cat8, these cables have evolved significantly, offering varying speeds, shielding, and lengths to optimize your network's performance.

But what makes these cables so essential? How do they differ, and why should you care about things like cable shielding, length, and jacket ratings? In this article, we'll explore these questions and more, providing you with valuable insights and practical tips to help you make informed decisions for your networking needs.

Join us as we embark on this enlightening journey through the world of Ethernet cables, where we'll uncover the secrets behind their types, features, and much more. Get ready to transform your understanding of these crucial components and enhance your network's efficiency and reliability!

Understanding Ethernet Cable Categories

 When it comes to setting up a robust and efficient network, the choice of Ethernet cable can make a significant difference. Ethernet cables, categorized from Cat1 to Cat8, each bring unique characteristics and applications to the table, shaping the way we connect and communicate in our digital world.

• Cat1 and Cat2: The Pioneers
  Cat1 cables, primarily used in traditional telephone systems, laid the groundwork for Ethernet technology. Though now obsolete for modern data networking, they represent the early stages of network cabling. Cat2 cables, a step up from Cat1, were used in early IBM Token Ring networks, supporting data transmission rates of up to 4 Mbps.
• Cat3: The Dawn of Ethernet
  The introduction of Cat3 marked a significant leap, being the first to support 10BaseT Ethernet networks. With a data rate of 10 Mbps and four twisted pairs, Cat3 was a game-changer in the early '90s, although it's now considered too slow for current standards.
• Cat4 and Cat5: Advancing Speeds
  Cat4, primarily used in IBM Token Ring networks, offered a data rate of 16 Mbps. The real breakthrough came with Cat5, which boosted the data rate to 100 Mbps. Cat5 cables were instrumental in standard Ethernet and Fast Ethernet networks, marking a new era of network efficiency.
• Cat5e: The Enhanced Version
  Cat5e, an enhanced version of Cat5, supports speeds up to 1 Gbps. Its improved design reduces crosstalk, making it a popular choice for both home and office networks.
• Cat6 and Cat6a: Gigabit Ethernet
  Cat6 cables offer higher bandwidth and data transfer rates up to 1 Gbps over 100 meters. Cat6a, an augmented version, extends this capability to 10 Gbps over the same distance, making them ideal for high-speed networks.
• Cat7 and Cat7a: High-Performance Options
  Although not standardized by IEEE, Cat7 and Cat7a cables offer robust performance with data rates of up to 10 Gbps and 40 Gbps, respectively. Their enhanced shielding makes them suitable for demanding network environments.
• Cat8: The Frontier of Network Cabling
  Cat8 cables represent the pinnacle of Ethernet cabling, supporting bandwidths up to 2 GHz (2000 MHz) and data rates of up to 40Gbps over short distances. Ideal for data centers and high-performance networking, Cat8 is the future-proof choice for cutting-edge network infrastructures.

  Here's a table summarizing these categories for a quick overview:

Understanding these categories is crucial for anyone involved in network setup or maintenance. Each category serves specific needs, from basic home networks to complex data centers. By choosing the right category of Ethernet cable, you can ensure optimal performance, reliability, and scalability of your network infrastructure.

 In the ever-evolving landscape of digital connectivity, staying informed about these categories is not just a technical necessity but a strategic advantage in harnessing the full potential of your network.

Speed and Data Rate Explained

 In the world of Ethernet cables, understanding the concepts of speed and data rate is crucial. These factors are not just technical jargon; they are the backbone of network performance. Let's delve into how these elements work together to keep our digital world spinning.

• The Essence of Speed in Ethernet Cables
  Speed in Ethernet cables refers to the maximum rate at which data can be transmitted over the network. It's like the speed limit on a highway; the higher the speed limit, the faster the traffic (data) can move. This speed is typically measured in megabits per second (Mbps) or gigabits per second (Gbps).
• Data Rate: The Data Transmission Capacity
  Data rate, often used interchangeably with speed, is slightly different. It represents the amount of data that can be transmitted over the cable at any given time. Think of it as the volume of traffic the highway can handle at its speed limit. Higher data rates mean more data can be transferred simultaneously.
• How Speed and Data Rate Impact Performance
  The interplay between speed and data rate is critical for network efficiency. A cable with a higher speed and data rate can transmit more data quickly, reducing bottlenecks and improving overall network performance. This is particularly important in environments with high data usage, such as data centers or large office networks.
• Choosing the Right Cable for Your Needs
  Selecting the right Ethernet cable depends on your network's speed and data rate requirements. For basic home internet usage, a Cat5e cable, offering speeds up to 1 Gbps, is usually sufficient. However, for more demanding tasks like streaming high-definition video or large-scale data transfers, Cat6 or higher categories are recommended.
• Future-Proofing Your Network
  As technology evolves, so do the demands on our networks. Investing in cables with higher speed and data rate capacities can future-proof your network, ensuring it can handle increased data loads and higher internet speeds in the coming years.

 In conclusion, the speed and data rate of an Ethernet cable are pivotal in determining its suitability for different networking environments. By understanding these concepts, you can make informed decisions to ensure your network is not just functioning, but thriving in the fast-paced digital landscape.

The Significance of Cable Shielding

 In the intricate world of Ethernet cables, shielding is a critical feature that often goes unnoticed but plays a vital role in ensuring data integrity and network performance. Shielding in Ethernet cables is akin to an armor that protects the data traveling through the cables from external interferences. Let's delve into why shielding is so important and how it impacts your network.

• Defending Against Electromagnetic Interference (EMI)
  One of the primary roles of cable shielding is to guard against Electromagnetic Interference (EMI). EMI can come from various sources like electrical appliances, wireless devices, and even other cables. Unshielded cables are vulnerable to this interference, which can distort or degrade the data signals, leading to errors and reduced network performance.
• Reducing Crosstalk for Clearer Signal Transmission
  Shielding also plays a crucial role in minimizing crosstalk - a phenomenon where signal from one cable leaks into another. This can happen when multiple cables are laid close to each other, as is often the case in office environments. By reducing crosstalk, shielding ensures that data signals remain clear and unimpeded, enhancing overall transmission quality.
• Types of Shielding in Ethernet Cables

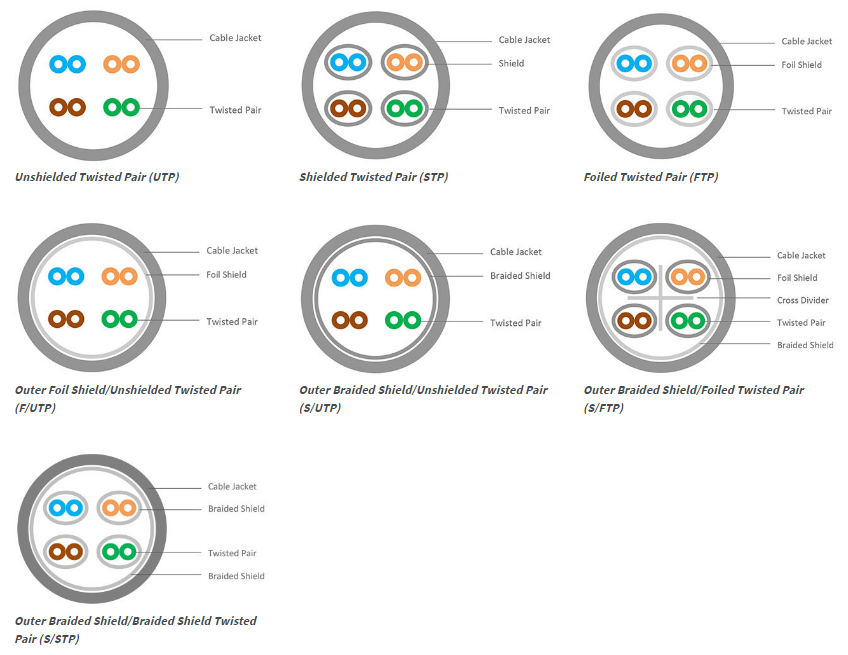

  There are different types of shielding used in Ethernet cables, each designed for specific environments:
  • Foil Shielding: Involves wrapping the cable in a thin layer of aluminum foil. It's effective at preventing EMI and is commonly used in residential and office settings.
  • Braided Shielding: Consists of a mesh of woven copper wires. While slightly less effective against EMI than foil, it's more durable and better suited for environments where cables are frequently handled or moved.
  • Combination Shielding: Some high-end cables use both foil and braided shielding for maximum protection.
• Choosing the Right Shielded Cable
  The choice of shielded vs. unshielded Ethernet cable depends on your specific environment and needs. In areas with high EMI, such as industrial settings or near heavy electrical equipment, shielded cables are a must. For home or small office environments, unshielded cables might suffice, but considering shielded cables can be a wise choice for future-proofing.
• Impact on Network Performance
  While shielding is crucial for protecting against interference, it's important to note that it can also slightly increase the overall weight and rigidity of the cable. This means installation might require a bit more effort, but the trade-off is a more reliable and stable network performance.

 Here's a table summarizing the different types of cable shielding:

 This comprehensive overview provides a clear understanding of the various Ethernet cable shielding types, their capabilities, and applications, helping you make informed decisions to optimize your network's performance and longevity.

Choosing the Right Cable Length

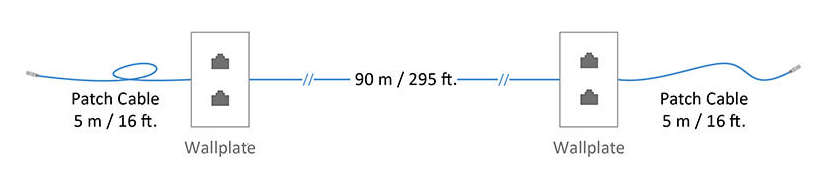

 Selecting the appropriate length for an Ethernet cable is not just a matter of convenience; it's a crucial decision that impacts the efficiency and reliability of your network. The length of an Ethernet cable can significantly affect data transmission, especially over longer distances. Let's explore the nuances of cable length and its implications on network performance.

• Understanding Maximum Length Standards
  Ethernet cables have specific maximum length standards, beyond which data transmission can become unreliable. For most home and office networks using Cat5e and Cat6 cables, the maximum recommended length is 100 meters (approximately 328 feet). This length includes the total run of the cable, from the router or switch to the device.
• Signal Attenuation Over Distance
  One of the primary concerns with longer cable lengths is signal attenuation, which is the weakening of the signal as it travels. The longer the cable, the more the signal degrades, potentially leading to slower internet speeds and data transfer rates. This is particularly crucial in environments where high-speed data transfer is essential.
• Quality Matters in Long-Distance Transmission
  The quality of the Ethernet cable plays a significant role in how well it can transmit data over long distances. Higher quality cables, often with better shielding and thicker conductors, can maintain signal strength over longer runs. This is especially important in larger buildings or setups where cables need to cover significant distances.
• Shorter Cables for Reduced Crosstalk and Interference
  While long cables are sometimes necessary, shorter Ethernet cables can reduce the chances of crosstalk and electromagnetic interference (EMI), leading to a more stable and efficient network. In setups where devices are close to routers or switches, opting for shorter cables can enhance network performance.
• Custom Lengths for Organized and Efficient Setups
  Custom-length Ethernet cables can be a practical solution for maintaining an organized and efficient network setup. Tailoring cable length to your specific needs can reduce clutter and the potential for cable damage, which can affect network performance.

 In conclusion, the length of your Ethernet cable is a key factor in ensuring optimal network performance. Understanding the maximum length standards and considering the quality of the cable are essential steps in choosing the right Ethernet cable for your needs.

Installation Essentials: Jacket Ratings and Locations

When installing Ethernet cables, one aspect that demands attention but is often overlooked is the cable jacket rating. This rating is not just a technical specification; it's a crucial factor that ensures safety and compliance, especially in various installation environments like risers and plenums.

• What are Cable Jacket Ratings?
  Cable jacket ratings indicate the level of fire resistance offered by the cable and its suitability for different environments. These ratings are essential for adhering to building codes and ensuring safety in case of a fire. The material used in the cable jacket determines how it will behave in fire conditions - whether it will resist flames, emit toxic fumes, or contribute to the fire spread.
• Common Types of Cable Jacket Ratings
  • CM (Communications Multipurpose): Suitable for general use, including residential and office applications. These cables are designed for areas with minimal fire risks.
  • CMR (Communications Riser): Designed for vertical runs between floors through risers or shafts. CMR-rated cables are engineered to prevent the spread of fire from floor to floor.
  • CMP (Communications Plenum): Required for installation in plenum spaces where air circulates for heating, ventilation, or air conditioning systems. CMP cables are made with materials that resist fire and emit low smoke and no toxic fumes.
• Choosing the Right Cable for Your Installation
  Selecting the correct cable jacket rating is crucial for compliance with local building codes and for ensuring safety. For instance, using a CM-rated cable in a plenum space could be hazardous, as these cables are not designed to inhibit fire spread or limit toxic fume emissions in such environments.
• The Role of Jacket Ratings in Network Performance
  While the primary purpose of jacket ratings is safety, they also indirectly impact network performance. A properly rated cable ensures that the network remains intact and functional in various environmental conditions, thereby reducing the risk of downtime due to cable damage.
• Installation Considerations in Different Environments
  When planning cable installation, consider the environment. In residential settings, CM-rated cables might suffice, but in commercial buildings, especially those with complex HVAC systems, CMP-rated cables are often necessary. Always consult local building codes and standards to determine the appropriate cable type for your specific installation scenario.

Here's a table summarizing these jacket ratings:

In summary, understanding and adhering to cable jacket ratings is a critical aspect of Ethernet cable installation. It ensures not only the safety and compliance of your network infrastructure but also its reliability and performance in different environmental conditions.

Decoding Ethernet Cable Connectors

In the intricate network of Ethernet cabling, connectors play a pivotal role in ensuring a stable and efficient connection. These small but crucial components are responsible for linking your devices to the network. Understanding the different types of Ethernet cable connectors and their specific uses is key to setting up a reliable network.

• RJ45 Connectors: The Standard in Ethernet Cabling
  The RJ45 connector is the most commonly used in Ethernet networks. It's a rectangular connector that fits into Ethernet ports on computers, routers, and switches. The RJ45 connector is designed for Cat5, Cat5e, Cat6, and Cat6a cables, supporting up to 10 Gbps speeds, depending on the cable category.
• The Role of RJ45 in Network Performance
  The quality and design of an RJ45 connector significantly impact network performance. A well-crafted RJ45 connector ensures minimal signal loss and protects against EMI and crosstalk, which are critical for maintaining high-speed data transmission.
• Specialized Ethernet Connectors for Unique Needs
  • GG45 and TERA Connectors: These are advanced versions of the RJ45, designed for higher performance networks. Used primarily with Cat7 and Cat7a cables, they support higher frequencies and faster data rates.
  •

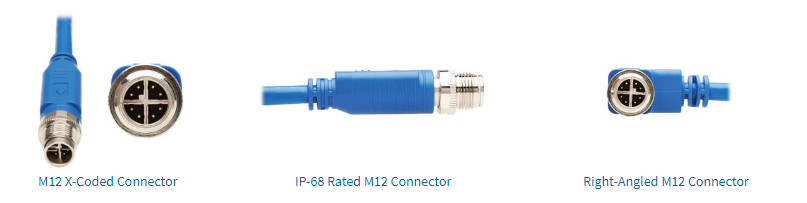

  • M12 Connectors: Primarily used in industrial settings, M12 connectors offer a robust and waterproof connection, ideal for environments exposed to moisture, dust, and vibrations.
  •
• Choosing the Right Connector for Your Setup
  Selecting the appropriate connector depends on your network's requirements. For most home and office networks, standard RJ45 connectors are sufficient. However, for specialized environments or high-performance networks, considering advanced connectors like GG45 or M12 might be necessary.
• The Importance of Proper Termination
   Proper termination of Ethernet cables with the right connectors is crucial. Poorly terminated connectors can lead to signal loss, reduced network speed, and intermittent connectivity issues. It's always recommended to have cable terminations done by professionals or with the right tools for DIY projects.

In conclusion, Ethernet cable connectors, though small, are integral to the performance and reliability of your network. Understanding the different types of connectors and their applications ensures that your network is not only connected but also optimized for performance.

The Role of Cable Gauge in Network Performance

In the world of Ethernet networking, the gauge of the cable, often overlooked, plays a significant role in determining the overall network performance. The gauge, which refers to the thickness of the cable's internal conductors, is a key factor in how much data the cable can transmit and over what distance. Let's explore the impact of cable gauge on network performance and its importance in meeting various network demands.

• Understanding Cable Gauge and Its Impact
  The gauge of an Ethernet cable is measured in American Wire Gauge (AWG). A lower AWG number indicates a thicker wire. Thicker wires have less resistance to the flow of electrical current, which is crucial for maintaining signal strength over longer distances. This means that cables with a lower gauge (thicker wires) are better suited for longer runs without signal degradation.
• Balancing Distance and Data Transfer Rates
  For shorter distances, such as in a home or small office, higher gauge (thinner) cables, like 24 AWG, are typically sufficient and more cost-effective. However, for longer runs, especially in larger buildings or outdoor installations, lower gauge cables (like 22 AWG) are preferable as they can carry the signal farther without loss.
• Gauge and Network Speeds: A Critical Relationship
  The relationship between cable gauge and network speeds is also vital. Thicker wires can carry more data at higher speeds. This is particularly important for networks that require high data transfer rates, such as in data centers or for high-definition video streaming.
• Choosing the Right Gauge for Your Network
  Selecting the right cable gauge is not just about maximum length or speed; it's about the efficiency and reliability of your network. For standard office or home networks, a higher gauge cable might be adequate. However, for networks with higher bandwidth requirements or longer cable runs, opting for a lower gauge cable is advisable.
• Cable Gauge and Power Over Ethernet (PoE)
  Cable gauge also affects the capability of Ethernet cables to carry power along with data, known as Power Over Ethernet (PoE). Thicker cables (lower gauge) can carry more power, which is essential for networks that power devices like security cameras, VoIP phones, or wireless access points through Ethernet cables.

Here's a table summarizing the typical gauges and diameters of various Ethernet cables:

In conclusion, the gauge of Ethernet cables is a critical component in network design and performance. It influences not only the distance and speed of data transmission but also the overall efficiency and reliability of the network. Understanding and choosing the right cable gauge based on your specific network demands is essential for building a robust and high-performing network.

Twist Rates: A Key Factor in Cable Performance

When discussing the intricacies of Ethernet cables, the concept of twist rates often emerges as a critical factor in determining cable performance. This aspect, though not immediately visible, plays a fundamental role in enhancing signal quality and reducing interference. Let's explore the significance of twist rates in Ethernet cables.

• Understanding Twist Rates in Ethernet Cables

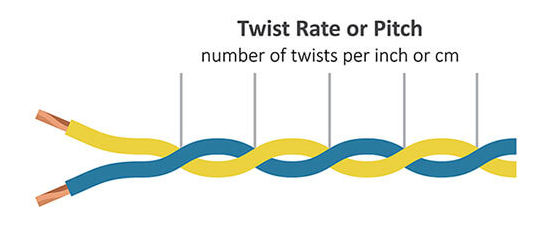

  Twist rate refers to the frequency at which the pairs of wires inside an Ethernet cable are twisted. The principle behind this is simple yet ingenious: by twisting the wires, electromagnetic interference (EMI) from external sources and crosstalk between adjacent pairs within the cable are significantly reduced.
• The Science Behind Twisting Pairs
  Each pair of wires in an Ethernet cable carries signals, and these signals can create electromagnetic fields that interfere with other pairs. By twisting the wires, these electromagnetic fields are effectively cancelled out. This cancellation is crucial in maintaining the integrity of the data being transmitted over the cable.
• How Twist Rates Affect Cable Performance
  The effectiveness of this interference cancellation is directly related to the twist rate. Generally, a higher twist rate (more twists per inch) means better performance in terms of reducing interference and crosstalk. This is particularly important in environments with a high level of electromagnetic noise or when running cables over longer distances.
• Twist Rates and Cable Categories
  Different categories of Ethernet cables have different standard twist rates. For example, Cat6 cables typically have a higher twist rate than Cat5e, which is one of the reasons they can support higher data transfer rates and better performance over longer distances.
• Choosing the Right Cable for Your Needs
  When selecting Ethernet cables, considering the twist rate is essential, especially if the cables will be used in environments with potential for high EMI or over extended distances. For most home and office applications, standard Cat5e or Cat6 cables are sufficient. However, in industrial settings or for advanced networking requirements, opting for cables with a higher twist rate might be necessary.

In summary, the twist rate of Ethernet cables is a key element that contributes to the overall performance of a network. By understanding and considering the twist rates, you can ensure that your network is equipped to handle data transmission efficiently and with minimal interference.

Specialized Ethernet Cable Types

In the diverse world of Ethernet cabling, specialized cable types have been developed to meet unique networking needs and environmental challenges. These specialized cables, such as slim, ultra-slim, and armored variants, offer unique features and benefits for specific applications. Understanding these specialized types can help in selecting the perfect cable for your specific networking scenario.

• Slim and Ultra-Slim Ethernet Cables
  • Design and Use: Slim and ultra-slim Ethernet cables are designed with a smaller diameter compared to standard cables. This reduced size makes them more flexible and easier to manage, especially in tight spaces or when a large number of cables are required.
  • Benefits: These cables are ideal for high-density network racks where space is at a premium. Their smaller size also helps in improving airflow around network equipment, which is crucial for maintaining optimal operating temperatures.
  • Applications: Slim and ultra-slim cables are often used in data centers, server rooms, and offices where cable management and space utilization are key concerns.
• Armored Ethernet Cables
  • Robust Protection: Armored Ethernet cables are designed with an additional protective layer, typically made of metal or heavy-duty plastic. This layer provides extra protection against physical damage, crushing, and rodent attacks.
  • Outdoor and Industrial Use: These cables are particularly useful in outdoor installations or industrial environments where cables might be exposed to harsh conditions. The armor not only protects the cable but also ensures consistent performance in challenging environments.
  • Applications: Armored cables are often used in outdoor network installations, industrial settings, and in areas where cables are exposed to potential physical hazards.
• Choosing the Right Specialized Cable
  • Assessing the Environment: When selecting a specialized Ethernet cable, it's important to assess the environment in which the cable will be used. Factors like space constraints, exposure to physical damage, and the need for flexibility should guide your choice.
  • Performance Considerations: While specialized cables offer unique benefits, it's also crucial to ensure they meet the performance requirements of your network. This includes compatibility with the desired data transfer speeds and network standards.

In conclusion, specialized Ethernet cables like slim, ultra-slim, and armored types provide solutions for specific networking challenges and environments. Their unique designs and features make them suitable for a range of applications, from space-constrained data centers to harsh industrial settings.

Thank you for providing the original text. Based on this, let's expand on the section about Auto MDI/MDIX in the context of crossover cables and wiring standards:

Crossover Cables and Wiring Standards

In the realm of Ethernet networking, understanding crossover cables and their associated wiring standards is essential for anyone involved in network setup or maintenance. These cables, though less commonly used in modern networks due to advancements in technology, still hold significance in certain scenarios. Let's delve into the world of crossover cables, their wiring standards, and how Ethernet cable wiring configurations have evolved.

• What are Crossover Cables?
  Crossover cables are a type of Ethernet cable used to directly connect two devices without the need for a switch or hub. These cables have a unique wiring configuration that allows for the transmission and receiving pins to be crossed.
• Typical Use Cases for Crossover Cables
  In the past, crossover cables were commonly used for connecting two computers directly or linking switches and hubs. However, with the advent of auto-sensing technology in most modern network devices, the need for crossover cables has significantly diminished.
• Wiring Standards: T568A and T568B
  There are two main wiring standards for Ethernet cables: T568A and T568B. Both standards arrange the wire colors in a specific order, which is crucial for the functionality of the network.
  • T568A Wiring Standard: Often used in residential and government installations.
  • T568B Wiring Standard: More common in commercial installations and widely used in crossover cable configurations.
  •

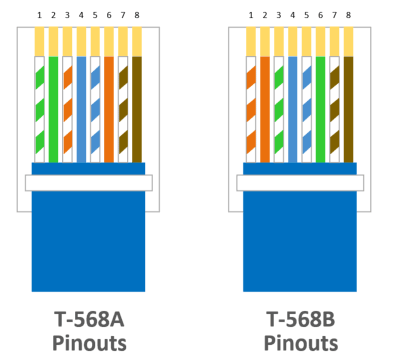

Here's a table illustrating the pin configurations for T568A and T568B wiring standards:

• Crossover vs. Straight-Through Cables

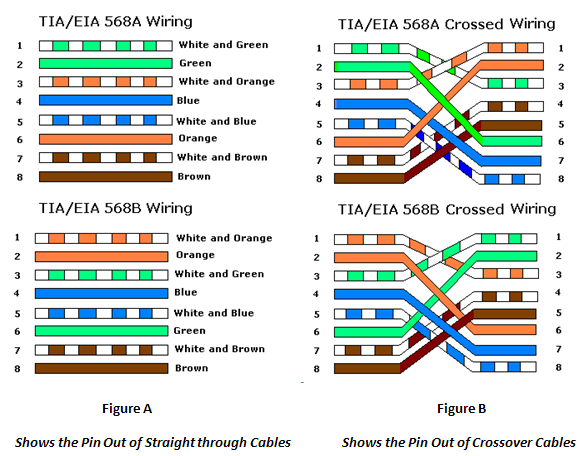

   The key difference between crossover and straight-through cables lies in the way the RJ45 connectors are wired.
  • Straight-Through Cables: The most common type of Ethernet cable, used to connect different types of devices, such as a computer to a switch or a router. Both ends of a straight-through cable are wired identically according to either T568A or T568B standards.
  • Crossover Cables: Used to connect similar devices, such as two computers directly or two switches. The wiring on one end of the cable is mirrored on the other end, following T568A on one end and T568B on the other, effectively crossing over the transmission and receiving lines.
  •
• The Evolution of Ethernet Cable Wiring
  The evolution of Ethernet cable wiring standards reflects the advancements in networking technology. Initially, the distinction between T568A and T568B was significant, especially for crossover cable applications. However, modern network devices are generally equipped with auto-MDI/MDIX capabilities, allowing them to automatically detect and configure the required cable type, thereby eliminating the need for specific crossover cable configurations.
• Understanding When to Use Crossover Cables
  Despite the reduced necessity in contemporary networks, understanding when and how to use crossover cables remains important. In situations where older network equipment without auto-sensing capabilities is used, or in specific network testing scenarios, crossover cables are still relevant.
• The Role of Auto MDI/MDIX in Modern Networking
   Auto MDI/MDIX is a technology that automatically adjusts the transmission and receiving pins on a network device, eliminating the need for crossover cables in most situations. This feature detects whether a straight-through or crossover connection is required and configures the network interface accordingly. It simplifies network setups and reduces the need for different types of cables, making network management more efficient and user-friendly.

In conclusion, while the traditional use of crossover cables has decreased due to technological advancements like Auto MDI/MDIX, understanding their purpose, wiring standards, and appropriate use cases remains a valuable part of network knowledge. This understanding ensures compatibility and optimal performance in various networking environments, from older setups to modern, automated systems.

Power Over Ethernet: Revolutionizing Cable Functionality

The advent of Power over Ethernet (PoE) technology has been a game-changer in the world of networking, revolutionizing how devices are connected and powered. PoE simplifies network installations and device connectivity by combining power and data transmission over a single Ethernet cable. This innovation has significant implications for the design and implementation of network infrastructures.

• Understanding Power over Ethernet (PoE)
  PoE technology allows electrical power to be passed along with data on Ethernet cabling. This capability eliminates the need for separate power supplies or electrical outlets near each networked device. It's particularly beneficial for devices like IP cameras, VoIP phones, wireless access points, and IoT devices, where power accessibility might be limited.
• The Impact on Network Installations
  With PoE, the complexity and cost of network installations are significantly reduced. It enables easier deployment of devices in locations that are hard to reach or where running separate power lines would be impractical or too expensive. This flexibility is invaluable in modern network design, especially in large buildings or outdoor areas.
• PoE Standards and Capabilities
  Over the years, PoE technology has evolved, with standards like IEEE 802.3af and IEEE 802.3at (PoE+) defining the power output capabilities. These standards ensure that a wide range of devices can be safely powered over Ethernet cables without the risk of damage.
• Advantages of Using PoE
  • Cost-Efficiency: Reduces the need for additional electrical wiring, lowering installation costs.
  • Flexibility: Facilitates the installation of networked devices in locations without easy access to power outlets.
  • Safety: Minimizes the risk of electrical hazards as PoE operates at lower voltages.
  • Reliability: Ensures a consistent power supply, which is crucial for critical network devices.
• Future of PoE in Networking
  The future of PoE holds immense potential, with advancements leading to higher power outputs and more efficient power management. This progress will further expand the range of devices that can be PoE-enabled, paving the way for more innovative and integrated network solutions.

In conclusion, Power over Ethernet is a transformative technology that simplifies network installations and enhances the functionality of Ethernet cables. Its ability to deliver power and data over a single cable has opened up new possibilities in network design and device connectivity.

Making the Right Choice: Selecting the Perfect Ethernet Cable

Selecting the right Ethernet cable is a critical decision that can significantly impact the efficiency and reliability of your network, whether at home or in a commercial setting. With various types and categories available, it's essential to understand what makes each one distinct and suitable for specific networking needs. Let's delve into the key considerations for choosing the most appropriate Ethernet cable for your situation.

• Understanding Cable Categories and Their Uses
  The first step in selecting an Ethernet cable is understanding the different categories, such as Cat5e, Cat6, Cat6a, and Cat8. Each category has its own data transmission speed, bandwidth capacity, and maximum length. For basic home internet usage, a Cat5e or Cat6 cable is often sufficient. However, for environments with higher data transfer needs, such as commercial buildings or data centers, Cat6a or Cat8 cables might be more appropriate.
• Consider the Network Environment
  The environment where the cable will be used plays a significant role in your choice. If you're running cables in an area with high electromagnetic interference (EMI), such as near heavy machinery or power lines, choosing a shielded cable (STP) might be necessary to prevent data loss and ensure stable connectivity.
• Assessing Cable Length Requirements
   Cable length is another crucial factor. While longer cables offer more placement flexibility, they can also lead to signal degradation. Ensure the cable is long enough for your needs but as short as possible to maintain signal integrity. Remember, the maximum recommended length for most Ethernet cables is 100 meters.
• Flexibility and Durability Needs
  If the cable needs to be frequently moved or bent, opting for a cable with a more durable and flexible jacket is wise. In contrast, for permanent installations, stiffer cables might be more economical and just as effective.
• Power Over Ethernet Compatibility
  If you plan to power devices through your Ethernet cable, such as with IP cameras or wireless access points, ensure the cable is PoE compatible. Cables with higher quality and lower gauge (thicker) conductors are typically better suited for PoE applications.
• Budget Considerations
  While it's tempting to opt for the highest category cable, it's important to consider your budget. Higher-category cables are more expensive and might offer features that are unnecessary for your specific use case.

In conclusion, choosing the right Ethernet cable involves a careful assessment of your network's speed and bandwidth requirements, environmental factors, length needs, flexibility, durability, PoE compatibility, and budget. By considering these factors, you can select a cable that not only meets your current needs but also accommodates future network expansions.

Conclusion: Navigating the World of Ethernet Cables

In this comprehensive guide, we've explored the various aspects of Ethernet cables, from understanding different categories and their specific uses to the significance of cable shielding, gauge, and twist rates. We delved into the nuances of crossover cables, Power over Ethernet, and the factors to consider when selecting the perfect Ethernet cable for both home and commercial environments. This guide aims to provide you with the knowledge and insights needed to make informed decisions about Ethernet cabling, ensuring optimal network performance and efficiency.

FAQs

Q. What is the main difference between Cat5e and Cat6 Ethernet cables?

A. The main difference lies in their performance capabilities. Cat6 cables have a higher bandwidth (up to 250 MHz) compared to Cat5e (up to 100 MHz), which allows Cat6 to support higher data transfer rates. Additionally, Cat6 cables are better at handling crosstalk and interference.

Q. Can I use a longer Ethernet cable without losing signal quality?

A. Ethernet cables can run up to 100 meters without significant signal loss. However, for longer distances, signal degradation can occur. It's advisable to use repeaters or switches for longer runs to maintain signal integrity.

Q. Are shielded Ethernet cables always necessary?

A. Shielded Ethernet cables are not always necessary but are recommended in environments with high electromagnetic interference (EMI), such as near heavy machinery or in industrial settings, to prevent data loss and ensure stable connectivity.

Q. What is Power over Ethernet (PoE), and why is it useful?

A. Power over Ethernet (PoE) is a technology that allows electrical power to be passed along with data over Ethernet cables. It's useful for powering devices like IP cameras and wireless access points in areas where it's impractical to run separate power lines.

Q. How do I choose the right Ethernet cable for my home network?

A. For most home networks, a Cat5e or Cat6 cable is sufficient. Consider the length you need, whether you require shielding based on potential EMI, and if you'll use PoE. Also, consider future-proofing your network for potential upgrades.
