Ever puzzled over how your home or office network manages to connect devices so effortlessly, regardless of the type of Ethernet cable you use? The secret lies in a clever feature known as Auto MDI/MDI-X, a technology that has quietly revolutionized Ethernet networking by simplifying connections and enhancing compatibility. Discover how this innovation makes network setup a breeze and why it's a game-changer for both tech novices and seasoned IT professionals.
Hello and welcome to our deep dive into the world of Auto MDI/MDI-X, the unsung hero of Ethernet networking. In today's digital age, the ability to connect various devices seamlessly is more than a convenience—it's a necessity. Whether you're setting up a new home network, upgrading an office infrastructure, or simply curious about how your internet connection works, understanding Auto MDI/MDI-X is key to unlocking the full potential of your network.
In this article, we'll explore the magic behind Auto MDI/MDI-X, from its technical foundations to its practical benefits. We'll also look back at its development and forward to its future, providing you with a comprehensive understanding of a technology that keeps our world connected. So, whether you're a networking newbie or an experienced IT professional, join us as we unravel the mysteries of Auto MDI/MDI-X and reveal how it shapes our connected experiences.
Understanding MDI and MDI-X
In the realm of Ethernet networking, two fundamental concepts that ensure the seamless connection and communication between devices are the Medium-Dependent Interface (MDI) and Medium-Dependent Interface Crossover (MDI-X). These interfaces are pivotal in determining how devices like computers, switches, and routers connect and interact over a network. Let's delve into the basics and historical evolution of these technologies to appreciate their role in modern networking.
The Basics of MDI and MDI-X
MDI and MDI-X refer to the physical and electrical interfaces used in Ethernet networking. The **MDI** is typically found on end devices such as network interface cards (NICs) in computers, where it serves as the point of connection to the network. On the other hand, **MDI-X** interfaces are commonly located on networking hardware like switches and hubs. They are designed to automatically adjust and complement the MDI for a straightforward, error-free connection.
The primary difference between MDI and MDI-X lies in the way they handle transmission and reception of data signals:

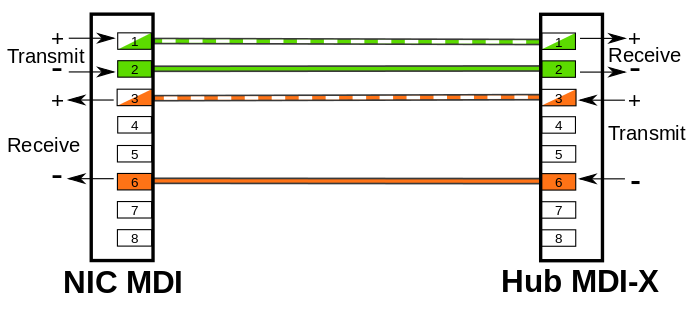

- MDI ports transmit on pins 1 and 2 and receive on pins 3 and 6.
- MDI-X ports, conversely, receive on pins 1 and 2 and transmit on pins 3 and 6.
This arrangement ensures that when an MDI device connects to an MDI-X device, the transmit and receive signals align correctly, enabling data to flow smoothly between devices.
The Essence of Auto MDI/MDI-X
In the intricate web of network connectivity, Auto MDI/MDI-X stands as a cornerstone technology that has significantly simplified the way devices communicate over Ethernet. This feature embodies the essence of modern networking: seamless connectivity, simplicity, and intelligent automation. Let's explore the transformative impact of Auto MDI/MDI-X on network setups and delve into the technical wizardry that makes it all possible.
Auto-Negotiation Revolution
The advent of Auto MDI/MDI-X marked a pivotal moment in the evolution of network technology. Before its introduction, connecting devices required a clear understanding of cable types—straight-through or crossover—and the correct application of MDI (Medium-Dependent Interface) and MDI-X (Medium-Dependent Interface Crossover) standards. This often led to confusion and frustration, especially in complex network environments.
Auto MDI/MDI-X revolutionized this landscape by introducing a dynamic system that automatically configures network interfaces. This means that devices can now detect the type of cable connected and adjust their settings accordingly, eliminating the need for manual cable selection. The impact of this innovation cannot be overstated:
- Simplified Network Setup: With Auto MDI/MDI-X, setting up a network is as straightforward as plugging in the cables. The technology automatically handles the configuration, making network setup accessible to everyone, regardless of their technical expertise.
- Enhanced Compatibility: Auto MDI/MDI-X ensures that devices from different manufacturers can connect without compatibility issues, fostering a more inclusive and versatile networking ecosystem.
Technical Breakdown
At its core, Auto MDI/MDI-X is a testament to the ingenuity of network engineering. This feature relies on sophisticated detection and switching mechanisms that assess the type of connection required and adjust the interface settings in real-time. Here's a closer look at how it works:
- Detection Mechanism: When an Ethernet cable is connected to a port, the device sends out signals to determine whether the connected device is configured as MDI or MDI-X. This initial handshake is crucial for establishing a compatible connection.
- Switching Capabilities: Based on the detection results, the device automatically switches its configuration to either MDI or MDI-X mode. This ensures that the transmit and receive signals are correctly aligned, allowing for seamless data transmission.
This dynamic process is underpinned by a set of algorithms that manage the detection and switching functions efficiently. The algorithms are designed to minimize connection delays and optimize performance, ensuring that devices can communicate effectively without manual intervention.
Auto MDI/MDI-X represents a significant leap forward in network technology, offering a blend of simplicity, efficiency, and intelligence. By automating the configuration process, it has made network connectivity more accessible and reliable, paving the way for future innovations in networking. As we continue to explore the capabilities and implications of this technology, it's clear that Auto MDI/MDI-X will remain a key player in the evolution of Ethernet networking.
Historical Development and Standards
The journey from manual cable switching to the sophisticated automation of Auto MDI/MDI-X is a fascinating chapter in the history of Ethernet technology. This evolution reflects the broader narrative of networking—a shift towards greater simplicity, efficiency, and user-friendliness. Let's trace this progression and explore the critical role of standardization in the widespread adoption of Auto MDI/MDI-X.
From Manual Switching to Automatic Detection
The early days of Ethernet networking were marked by a certain level of complexity in connecting devices. The use of MDI (Medium-Dependent Interface) and MDI-X (Medium-Dependent Interface Crossover) required network administrators to carefully select the appropriate type of cable—straight-through or crossover—to ensure connectivity. This manual process was prone to errors and often resulted in connectivity issues, especially in more complex network setups.
The introduction of Auto MDI/MDI-X represented a significant leap forward. Developed to address the challenges of manual cable selection, Auto MDI/MDI-X introduced a system where devices could automatically detect the type of connection required and adjust their interface settings accordingly. This innovation eliminated the need for crossover cables in most scenarios, simplifying network setup and reducing the potential for human error.
Key milestones in the development of Auto MDI/MDI-X include:
- The Initial Concept: The idea of automatic cable type detection began to take shape in the late 1990s, as network engineers sought ways to simplify Ethernet connectivity.
- Early Adoption: The first implementations of Auto MDI/MDI-X started appearing in network devices in the early 2000s, offering a glimpse into the future of networking.
- Widespread Implementation: Over time, Auto MDI/MDI-X became a standard feature in Ethernet switches, routers, and network interface cards, marking its transition from a novel feature to a fundamental aspect of network hardware.
Standardization Efforts
The standardization of Auto MDI/MDI-X played a crucial role in its adoption and implementation across the networking industry. The IEEE (Institute of Electrical and Electronics Engineers) has been instrumental in this process, incorporating Auto MDI/MDI-X into its Ethernet standards.
- IEEE 802.3: The inclusion of Auto MDI/MDI-X in the IEEE 802.3 standard for Ethernet was a pivotal moment. This standardization ensured that Auto MDI/MDI-X was universally recognized and implemented, fostering compatibility and interoperability among devices from different manufacturers.
- Continuous Evolution: The IEEE continues to update and refine its standards to accommodate new developments in Ethernet technology, including enhancements to Auto MDI/MDI-X. These efforts ensure that the standards remain relevant and that network devices can take full advantage of the latest advancements in auto-detection and switching technologies.
The historical development of Auto MDI/MDI-X and its standardization are testament to the networking industry's commitment to innovation and user-centric design. By transforming the way devices connect and communicate, Auto MDI/MDI-X has not only simplified network setups but also laid the groundwork for future advancements in Ethernet technology.
Cabling and Connectivity
Navigating the world of Ethernet cabling can seem daunting, but understanding the basics of how cables connect devices is crucial for setting up a reliable and efficient network. The interplay between MDI (Medium-Dependent Interface) and MDI-X (Medium-Dependent Interface Crossover) significantly influences the type of cable required for different network setups. Let's break down these requirements and offer practical advice for selecting the right cable for your networking needs.
Cable Requirements for Ethernet Links

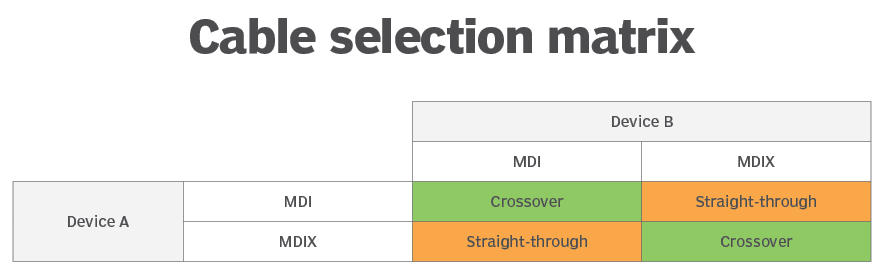

The type of cable needed for an Ethernet connection depends on the configuration of the devices being connected (MDI to MDI-X, MDI to MDI, or MDI-X to MDI-X) and whether they support auto-negotiation.
- MDI to MDI-X: This is the most common scenario, where an end device (like a computer) connects to a network device (such as a switch or hub). Traditionally, a straight-through cable is used for this connection, as the transmit and receive pins align correctly across the devices.

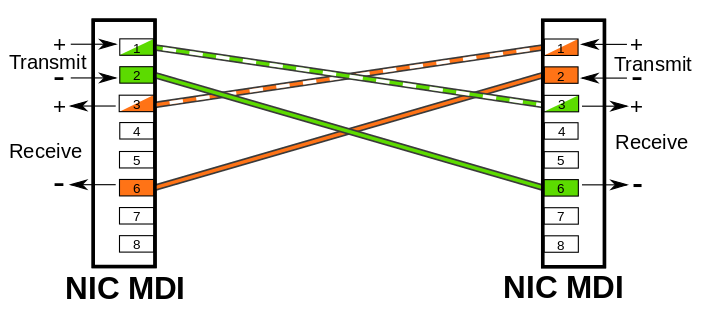

- MDI to MDI or MDI-X to MDI-X: Before auto-negotiation became prevalent, connecting two like devices required a crossover cable. This cable type swaps the transmit and receive pairs, ensuring that the transmitting pins on one device connect to the receiving pins on the other, and vice versa.
- Auto-Negotiation: Modern devices equipped with auto-negotiation technology can automatically configure themselves to work with whatever cable is used, eliminating the need for specific types of cables in most situations. However, understanding the traditional requirements remains important for troubleshooting and working with older equipment.
Practical Cable Selection Guide
Choosing the right Ethernet cable doesn't have to be complicated. Here are some tips to ensure you select the best cable for your network setup:
- Know Your Devices: Check if your devices support auto-negotiation. If both devices have this feature, you can use either a straight-through or a crossover cable.
- Consider Network Speeds: Ensure the cable category (Cat5e, Cat6, Cat6a, etc.) matches the maximum speed of your network devices. For gigabit or faster networks, Cat6 or higher is recommended.
- Length Matters: Be aware of the maximum cable length supported by your Ethernet standard. For most home and office networks, the limit is 100 meters (328 feet) for stable connectivity.
- Quality Counts: Opt for cables from reputable manufacturers to avoid issues with signal degradation, especially in environments with a lot of electromagnetic interference.
- Flexibility for the Future: If you're laying cable in walls or ceilings, consider future-proofing your investment by choosing a higher category cable than currently needed. This can save you from having to re-cable if you upgrade your network later.
By understanding the specific needs of your network and the capabilities of your devices, you can make informed decisions about Ethernet cabling. This ensures not only the reliability and efficiency of your network today but also its adaptability to future technologies and standards.
Advanced Features and Configurations
Fast Link Pulses (FLP) and Link Code Words
In the realm of Ethernet auto-negotiation, Fast Link Pulses (FLP) and Link Code Words stand out as sophisticated mechanisms that facilitate seamless communication between devices. These features are at the heart of ensuring devices not only connect but also achieve the best possible networking conditions based on their mutual capabilities.
FLP is a series of signals sent between Ethernet devices to initiate the auto-negotiation process. Unlike the regular link pulses used to maintain the link integrity, FLPs carry detailed information about a device's networking capabilities, such as supported speeds and duplex modes.
Link Code Words are embedded within these FLPs, serving as the actual data packets that convey each device's capabilities. Each Link Code Word contains 16 bits of information, detailing not just the operational modes supported by the device but also other critical settings that might affect the connection, such as power management and specific Ethernet standards compatibility.
Encoding and Decoding Link Code Words
The structure of Link Code Words is meticulously designed to ensure that all necessary information is transmitted efficiently and accurately. Here’s how they are typically broken down:
- Selector Field: The first few bits specify the type of Ethernet standards the device supports, ensuring compatibility.
- Technology Ability Field: This segment details the specific capabilities, such as whether the device supports 10BASE-T, 100BASE-TX, or 1000BASE-T, and whether it can operate in half or full duplex.
- Remote Fault and Acknowledgement: These bits are used to indicate any issues in the link or to acknowledge the successful reception of configuration details.
- Next Page: Indicates whether additional information will follow, allowing for a comprehensive exchange of capabilities.
Understanding and correctly interpreting these code words is crucial for devices to negotiate the most compatible and efficient connection settings, optimizing network performance.
The Role of Auto-Negotiation
In the intricate dance of network connectivity, auto-negotiation plays a pivotal role, acting as the mediator that ensures devices speak the same language, figuratively. This process is not just about compatibility; it's about achieving the highest possible efficiency and performance in Ethernet networks. Let's delve into the essence of auto-negotiation and its synergy with MDI and MDI-X interfaces.
Auto-Negotiation Explained
Auto-negotiation is a protocol feature embedded within Ethernet devices, enabling them to automatically determine the best possible modes of operation over a network link. This includes aspects like transmission speed (10 Mbps, 100 Mbps, 1 Gbps, etc.) and duplex mode (half or full). The beauty of auto-negotiation lies in its ability to facilitate a handshake between connected devices, negotiating parameters that both ends support, thereby optimizing the connection without human intervention.
The process begins the moment an Ethernet cable connects two devices, initiating a series of signals that communicate each device's capabilities. Through this initial conversation, devices agree on the highest common performance settings, ensuring data flows as efficiently as possible.
MDI/MDI-X and Auto-Negotiation
The relationship between MDI/MDI-X interfaces and auto-negotiation is a testament to the elegance of Ethernet technology. MDI, typically found on end devices like computers and routers, and MDI-X, commonly seen on switches and hubs, need to match correctly for data to transmit smoothly. Before the widespread adoption of auto-negotiation, this matching required manual cable selection (straight-through or crossover) based on the devices being connected.
Auto-negotiation simplifies this process immensely. When an Ethernet device is connected to another, the auto-negotiation protocol automatically configures the MDI or MDI-X setting to complement the other device, eliminating the need for crossover cables in most scenarios. This not only streamlines network setup but also reduces potential errors and compatibility issues.
For instance, when two auto-negotiation-enabled devices are connected, regardless of whether they're configured as MDI or MDI-X, the devices will negotiate and dynamically configure themselves for a successful connection. This adaptability is crucial in modern networks, where devices of various types and capabilities must coexist and communicate effectively.
In essence, auto-negotiation, in concert with MDI and MDI-X interfaces, ensures that Ethernet networks are both flexible and efficient. By automatically determining the best connection parameters and adjusting the MDI/MDI-X configuration as needed, these technologies together provide a seamless, user-friendly networking experience. This synergy not only enhances network performance but also significantly simplifies network management and setup, marking a significant advancement in Ethernet technology.
