Understanding Ethernet Auto-Negotiation

Ethernet auto-negotiation is a vital protocol in modern Ethernet networks, enabling devices to automatically configure optimal communication settings. This process, crucial for network efficiency, involves devices negotiating over capabilities like speed and duplex mode.

Historical Development

- Originated with Fast Ethernet in the 1990s, auto-negotiation was a solution for devices operating at varying speeds (10 Mbps and 100 Mbps) to communicate effectively.
- Standardized as part of IEEE 802.3u, it became essential for ensuring devices from different manufacturers could seamlessly interact.

Impact on Networks

- Auto-negotiation simplifies network setup by automatically configuring network parameters, reducing manual configuration errors.
- It enhances network performance by ensuring devices operate at optimal speed and duplex settings, thus maximizing data throughput and efficiency.

In essence, Ethernet auto-negotiation is a cornerstone of network communication, pivotal in the evolution of efficient and reliable Ethernet networks.

Key Components of Auto-Negotiation

Auto-negotiation in Ethernet networks hinges on three technical aspects: speed, duplex mode, and flow control. These elements work together to optimize network performance.

Speed and Duplex Mode

- Speed in Ethernet, typically ranging from 10 Mbps to 1 Gbps, is crucial for determining how fast data travels across the network.
- Duplex mode dictates data transmission direction. Half-duplex allows one-way data flow at a time, while full-duplex supports simultaneous two-way communication.

Flow Control

- This mechanism manages data transmission, preventing loss when the receiving device is overwhelmed.

The Role of IEEE 802.3

- IEEE 802.3 standard defines auto-negotiation protocols, ensuring different devices communicate effectively.

In essence, these components ensure efficient and reliable data transmission in Ethernet networks.

The Evolution of Ethernet Auto-Negotiation

The journey of Ethernet auto-negotiation from its inception to becoming an indispensable standard is a fascinating evolution in network technology.

From Fast Ethernet to Gigabit

- Initially, Ethernet technology operated at 10 Mbps. With the advent of Fast Ethernet (100 Mbps), the need for a system to manage different speeds became evident. This led to the development of auto-negotiation.
- As network demands escalated, Gigabit Ethernet (1 Gbps) emerged. Auto-negotiation evolved to manage not just speed differences but also to negotiate other parameters like duplex mode, enhancing overall network efficiency.

Mandatory in Modern Standards

- The real turning point for auto-negotiation was its inclusion as a mandatory feature in the IEEE 802.3ab standard, which governs Gigabit Ethernet. This standardization was crucial for ensuring seamless interoperability between devices from different manufacturers.
- Today, auto-negotiation is not just a convenience but a necessity, especially in complex network environments where various devices and speeds coexist. It ensures that all connected devices operate at their optimal capacity, maximizing network performance and reliability.

The evolution of Ethernet auto-negotiation mirrors the growth of network technology itself, adapting and becoming more sophisticated to meet the ever-increasing demands of data communication.

Auto-Negotiation in the OSI Model

Auto-negotiation, a critical component in Ethernet networking, finds its place within the OSI (Open Systems Interconnection) model, specifically in the physical layer. Understanding its role and interaction with other layers is key to appreciating its impact on network communication.

Positioned in the Physical Layer

- The OSI model consists of seven layers, each with a specific role in network communication. Auto-negotiation resides in the physical layer, the first and most fundamental layer.
- In the physical layer, auto-negotiation is responsible for establishing and managing the physical link between network devices. It negotiates the transmission parameters like speed and duplex mode, crucial for setting up a reliable physical connection.

Interaction with Other Layers

- While auto-negotiation operates at the physical layer, its effects cascade up through the other layers of the OSI model. For instance, the data link layer, which handles frame synchronization, directly benefits from the stable connection established by auto-negotiation.
- The efficiency and reliability of auto-negotiation in the physical layer ensure that higher layers, like the network and transport layers, can perform their functions without concern for the basic integrity of the physical connection.

In essence, auto-negotiation's role in the OSI model is foundational. By efficiently managing the physical link parameters, it sets the stage for effective and seamless network communication across all layers.

Challenges and Solutions in Auto-Negotiation

Auto-negotiation, while pivotal in Ethernet networks, has faced its share of challenges, particularly in its early implementations. Understanding these issues and their resolutions is crucial for network stability and efficiency.

Interoperability Issues in Early Implementations

- Initially, auto-negotiation protocols varied among manufacturers, leading to interoperability issues. Devices from different vendors sometimes failed to correctly negotiate network parameters, resulting in suboptimal network performance.
- The solution came with stricter standardization, particularly through the IEEE 802.3 standards. These standards provided a common framework for all manufacturers, ensuring that devices could effectively communicate and negotiate settings regardless of their make.

Duplex Mismatches and Their Impact

- A significant challenge in auto-negotiation is duplex mismatch. This occurs when one device in a network operates in full-duplex mode while the other is in half-duplex, leading to performance issues like data collisions and loss.
- Duplex mismatches often result from manual configuration errors or when one device in the network does not support auto-negotiation. These mismatches can severely degrade network performance, often going unnoticed due to the subtle nature of their symptoms.

Resolving Duplex Mismatches

- The key to resolving duplex mismatches lies in ensuring that all devices in the network either support auto-negotiation or are manually configured to match their link partner's settings.
- Network administrators are advised to enable auto-negotiation wherever possible. In cases where manual configuration is necessary, careful attention must be paid to ensure that both ends of the connection are set to the same duplex mode.

In summary, while auto-negotiation has faced challenges like interoperability issues and duplex mismatches, the evolution of standards and best practices in network configuration have provided effective solutions. These advancements ensure that auto-negotiation continues to be a vital tool in optimizing network performance.

The Mechanics of Auto-Negotiation

Understanding the mechanics of auto-negotiation involves delving into its core signaling processes, primarily the Normal Link Pulses (NLP) and Fast Link Pulses (FLP), as well as the critical role of link code words.

Normal Link Pulses (NLP)

- NLPs are fundamental to the auto-negotiation process. They are regular, unidirectional pulses sent by Ethernet devices to indicate their presence and readiness to communicate.
- These pulses serve as a baseline communication signal, allowing devices to detect each other on the network. They are essential for initiating the auto-negotiation process.

Fast Link Pulses (FLP)

• Initial Detection with NLPs: Once devices detect each other using Normal Link Pulses (NLPs), they switch to Fast Link Pulses (FLPs). FLPs are more complex than NLPs and are crucial for the next stage of the auto-negotiation process.
• Information Exchange with FLPs: FLPs are used to exchange detailed information about each device's capabilities. They carry a wealth of information, including supported speeds, duplex modes, and other operational abilities. This detailed exchange is what allows devices to negotiate the best possible connection parameters.
• Structure of FLP Bursts: An FLP burst consists of 17 NLPs, spaced at a time interval of 125 microseconds (μs) with a tolerance of 14 μs. Between each pair of consecutive NLPs, at 62.5 μs after the first NLP of the pair, an additional positive pulse may be present.
• Encoding Logic in FLPs: The presence of this additional pulse within an FLP burst represents a logical '1', while its absence signifies a logical '0'. This encoding method allows each FLP burst to contain a 16-bit data word, known as a Link Code Word (LCW).
• Composition of Link Code Word (LCW): The LCW within an FLP burst is composed of 16 bits, numbered from 0 to 15. Bit 0 corresponds to the first possible pulse in the sequence, and bit 15 corresponds to the last. This 16-bit structure allows for the encoding of a significant amount of information, crucial for determining the best connection parameters.

In essence, the FLPs and their encoded LCWs are fundamental to the auto-negotiation process in Ethernet networks. They enable a detailed and efficient exchange of capabilities between connected devices, ensuring optimal network performance.

Significance of Link Code Words

In the mechanics of Ethernet auto-negotiation, the role of link code words, particularly within Fast Link Pulses (FLPs), is crucial. These code words carry detailed information about each device's capabilities, playing a pivotal role in the negotiation process.

Base Link Code Word: Each FLP burst transmits data known as a link code word, with the first word being the base link code word. This word is structured as follows:

• Selector Field (Bits 0-4): Indicates the standard used, differentiating between IEEE 802.3 and IEEE 802.9. (10000 = IEEE 802.3, 01000=IEEE 802.9)
• Technology Ability Field (Bits 5-12): Encodes the supported operational modes, such as 100BASE-T and 10BASE-T modes. This field is critical in determining the capabilities of the device.
• Remote Fault (Bit 13): Set to one if the device detects a link failure, signaling an issue in the connection.
• Acknowledgement (Bit 14): Indicates the correct reception of the base link code word from the other device. This is confirmed by receiving at least three identical base code words.
• Next Page (Bit 15): Used to signal the intention to send additional link code words, enabling further communication of capabilities.
  Technology Ability Field Breakdown

For IEEE 802.3, the technology ability field is composed as follows:


Extended Communication with Additional Pages

The base link code word, or base page, indicates if additional pages will be sent (Next Page bit set to 1). These additional pages, used for communicating further abilities, are sent only if both devices have the Next Page bit set to 1 in their base pages. Like the base page, these additional pages are encoded as link code words.

In summary, the sophistication of auto-negotiation lies in this intricate exchange of link code words. The detailed structure of these words allows for a comprehensive and precise negotiation process, ensuring that devices on an Ethernet network can establish the most efficient and compatible connection parameters. This system is fundamental in maintaining high-performance, reliable, and interoperable network environments.

Prioritizing Transmission Modes

In the realm of Ethernet auto-negotiation, determining the best mode of operation for network devices is a nuanced process. It involves a hierarchy of Ethernet standards, ensuring that the chosen mode maximizes efficiency and compatibility.

Determining the Best Mode of Operation

- During auto-negotiation, devices share a range of operational modes they support, including various speeds and duplex settings. The negotiation process involves each device assessing the other's capabilities.
- The best mode is determined based on a priority system. Generally, higher speeds take precedence, and within the same speed, full-duplex mode is preferred over half-duplex. This preference is because full-duplex allows simultaneous two-way communication, enhancing network efficiency.

Hierarchy in Ethernet Standards

- The Ethernet standards, as defined by IEEE, play a crucial role in this prioritization. Standards like IEEE 802.3ab for Gigabit Ethernet have specific requirements for auto-negotiation, ensuring devices adhere to a common protocol.
- This hierarchy not only dictates the preferred operational modes but also ensures backward compatibility. For instance, a Gigabit Ethernet device can still communicate effectively with a Fast Ethernet device by negotiating down to the highest common speed and duplex mode.

In summary, the prioritization of transmission modes in Ethernet auto-negotiation is a structured process guided by established standards. This process ensures that network devices operate in the most efficient manner possible, taking into account both their capabilities and the need for interoperability within diverse network environments.

Configuring Auto-Negotiation in WIZnet's W5500

WIZnet's W5500 Ethernet controller offers flexibility in configuring network settings, including auto-negotiation, through both hardware pins and software registers. Understanding how to utilize these features is key to optimizing network performance.

Hardware Pin Configuration

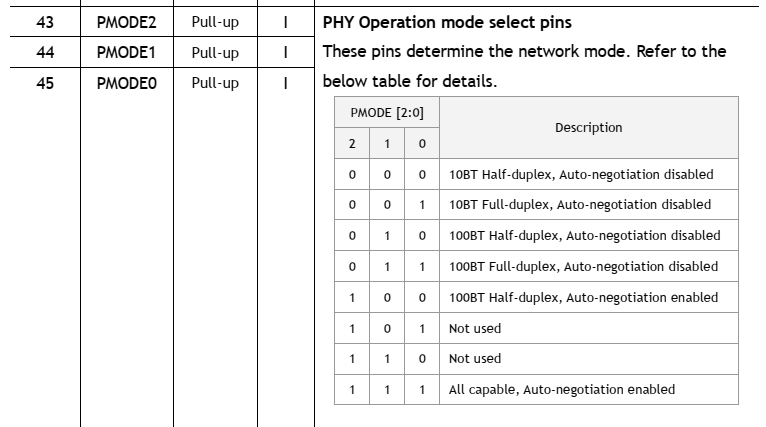

- The W5500 provides PHY Operation mode select pins (PMODE2, PMODE1, PMODE0) for configuring the network mode. These pins are instrumental in setting the desired operational mode of the Ethernet controller.
- The configuration is determined by the state of these pins:
 - `000` sets the controller to 10BT Half-duplex with auto-negotiation disabled.
 - `001` for 10BT Full-duplex without auto-negotiation.
 - `010` and `011` for 100BT Half and Full-duplex respectively, both without auto-negotiation.
 - `100` enables 100BT Half-duplex with auto-negotiation.
 - `111` configures the controller to operate in all capable modes with auto-negotiation enabled.
- These settings allow for precise control over the network mode based on the specific requirements of the application or network environment.

Software Register Configuration

- The W5500 also allows configuration through the PHYCFGR (PHY Configuration Register). This register not only sets the operation mode but also provides status information such as duplex, speed, and link status.

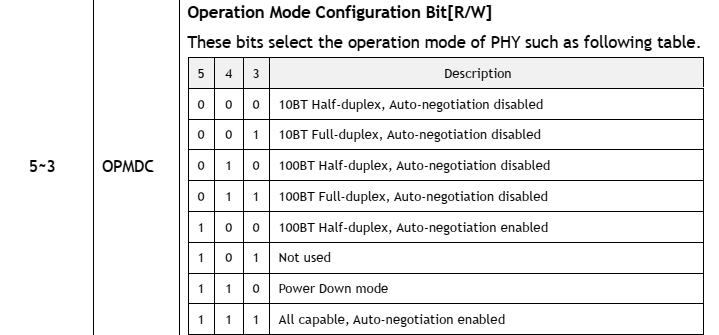

- The OPMDC bits (5 to 3) in the PHYCFGR are used to select the operation mode:
 - Similar to the hardware pins, `000` through `011` are used for specific half-duplex and full-duplex settings without auto-negotiation.
 - `100` enables 100BT Half-duplex with auto-negotiation.
 - `111` is used for enabling all capable modes with auto-negotiation.
 - The register also includes a Power Down mode (`110`) for energy-saving purposes.

In practice, the choice between using hardware pins or software registers for configuring the W5500 depends on the design and requirements of the specific application. Hardware pin configuration offers a more permanent and tamper-proof setting, ideal for environments where the network configuration is not expected to change. On the other hand, software register configuration provides flexibility and can be changed dynamically, which is suitable for environments where network conditions may vary.

Both methods provide robust control over the Ethernet controller’s operation, ensuring that the W5500 can be tailored to meet the diverse needs of various networking applications.

Conclusion: Mastering Ethernet Auto-Negotiation

In this comprehensive exploration of Ethernet auto-negotiation, we've delved into its fundamental concepts, practical applications, and advanced features. From understanding its role in the OSI model to addressing common challenges and misconceptions, we've covered the essential aspects that network professionals and enthusiasts alike need to know. The journey from the early days of Ethernet to the latest developments in single-pair Ethernet and WIZnet's W5500 controller highlights the dynamic nature of this technology. Auto-negotiation stands as a testament to the evolving landscape of network communication, continually adapting to meet the demands of modern networking needs.

FAQs

Q. What is Ethernet auto-negotiation?

A. Ethernet auto-negotiation is a protocol that allows connected Ethernet devices to automatically determine the best common network parameters, such as speed and duplex mode, for communication.

Q. Why is auto-negotiation important in Ethernet networks?

A. Auto-negotiation is crucial for ensuring optimal network performance and compatibility, as it allows devices to communicate efficiently by automatically selecting the best possible connection settings.

Q. Can auto-negotiation be manually configured?

A. Yes, auto-negotiation settings can be manually configured in some devices, like the WIZnet W5500, using hardware pins or software registers to set specific operational modes.

Q. How does auto-negotiation affect network speed and duplex mode?

A. Auto-negotiation optimizes network speed and duplex mode by allowing devices to agree on the highest performance mode they both support, thus enhancing network efficiency and reducing data collisions.

Q. What are the common misconceptions about auto-negotiation?

A. Common misconceptions include the belief that auto-negotiation slows down the network and that manual configuration is more reliable. In reality, auto-negotiation optimizes network speed and reliability.
