W55RP20-EVB-MKR Module MicroPython Practice (4) - TCP Server Communication

This is the 4th article in the WIZnet W55RP20 chip MicroPython tutorial series, written based on the latest official firmware. All code has been practically verified and can be directly flashed and run. Copyright Notice: This is an original technical article by WIZnet. Please indicate the source when reprinting.

Preface

In the previous practical tutorial, we completed the TCP Client communication for the W55RP20-EVB-MKR, where the development board can actively connect to the TCP Server on the computer, and complete data reception and echo.

This article will introduce TCP Server Communication. After the development board obtains an IP address via DHCP, it will create a TCP Server and listen on a specified port. The computer's SocketTester acts as a TCP Client to actively connect to the development board. After sending test data, the development board will receive the data and send back a response.

TCP Server is commonly used in scenarios such as local device listening, host computer active connection, local area network control, and debugging tool access.

The W55RP20 integrates a hardware TCP/IP protocol stack, and combined with MicroPython's socket interface, the development board can quickly implement TCP Server functionality. Developers do not need to manually handle low-level TCP protocol details, and only need to focus on application-layer logic such as socket creation, binding, listening, accepting connections, and data sending/receiving.

After reading this article, you will master:

The basic relationship between TCP Server and TCP Client

How to have the W55RP20-EVB-MKR listen on a port as a TCP Server

How to use SocketTester on the computer as a TCP Client to connect to the development board

How to receive data sent from the computer

How to send back data through TCP Server

Common troubleshooting methods when TCP Server communication fails

Series Tutorial Learning Path

This series consists of 16 articles, progressively covering the full process from basic networking to industrial-grade applications:

Article 1: Static IP Configuration and Network Basics

Article 2: DHCP Automatic Networking and Network Diagnostics

Article 3: TCP Client Communication

Article 4: TCP Server Communication (This Article)

Article 5: UDP Unicast Data Communication

Article 6: UDP Multicast/Broadcast Data Communication

Article 7: DNS Domain Name Resolution

Article 8: NTP - Getting Time from the Network

Article 9: HTTP Client Requests

Article 10: HTTP Server Setup

Article 11: HTTP Protocol and OneNET Platform Data Cloud Upload

Article 12: MQTT Protocol Basic Communication Verification

Article 13: MQTT Protocol Integration with Alibaba Cloud Platform

Article 14: MQTT Protocol Integration with OneNET Platform

Article 15: MQTT Protocol Integration with ThingSpeak Platform

Article 16: Modbus Industrial Protocol Communication

It is recommended to bookmark this series and follow the tutorials step by step. All code will besynced updated to the official Gitee repository.

Table of Contents

1 TCP Server Introduction

1.1 What is TCP Server

1.2 Relationship Between TCP Server and TCP Client

1.3 TCP Server Workflow

1.4 Advantages of TCP Server

2 Preparation

2.1 Software Preparation

2.2 Hardware Preparation

3 Flashing W55RP20 Dedicated MicroPython Firmware

4 Hardware Connection and Development Environment Configuration

4.1 Hardware Connection

4.2 Thonny Development Environment Configuration

5 SocketTester Configuration

6 TCP Server Example Code

6.1 Complete Code

6.2 Key Function Description

7 Running Results and Communication Verification

7.1 Thonny Serial Output Results

7.2 SocketTester Reception Results

7.3 TCP Server Communication Video Demonstration

8 Common Issues One-Stop Troubleshooting Guide

8.1 Computer TCP Client Connection Failed

8.2 Incorrect Server IP or Port

8.3 Port Occupied or Not Released

8.4 Program Stuck at accept()

8.5 Computer Cannot Receive Reply

9 W55RP20 Core Advantages Comparison

10 Typical Application Scenarios

Article Summary

11 Series Preview and Resource Access

11.1 Series Preview

11.2 Resource Access

1. TCP Server Introduction

In embedded IoT applications, a device can not only act as a TCP Client to actively connect to a server, but also as a TCP Server to listen on a local port, waiting for computers, host computers, or other network devices to actively connect.

TCP Server is a server-side program based on the TCP protocol. It binds to the local IP address and port number, and continuously listens for connection requests from TCP Clients. After a client successfully connects, the server can establish a reliable TCP connection with the client and perform bidirectional data communication.

1.1 What is TCP Server

TCP Server can be understood as "the party waiting for a connection."

Its main function is to listen for client connection requests on a specified port. Once a TCP Client connects, the Server can establish a connection with that client and perform data sending and receiving through this connection.

In simple terms:

TCP Server: Starts first, waits for client connections
TCP Client: Actively connects to TCP Server

1.2 Relationship Between TCP Server and TCP Client

TCP communication typically consists of two roles: Server and Client.

1.3 TCP Server Workflow

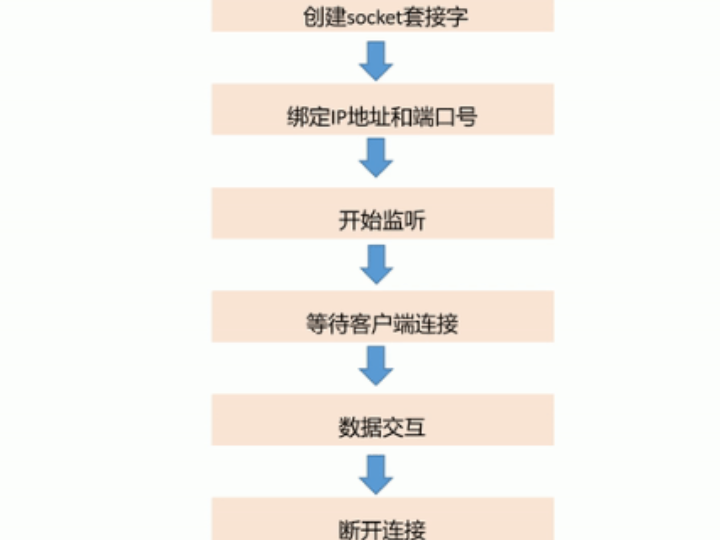

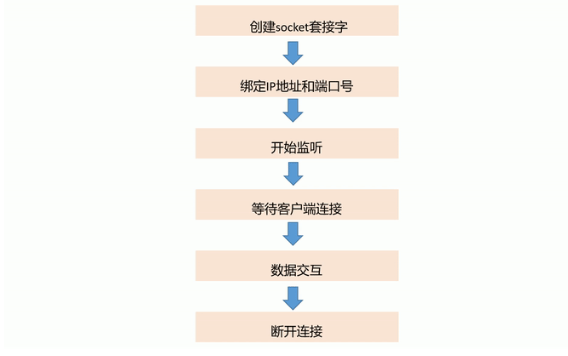

The communication process of TCP Server is shown in the following diagram:

 From the flow, it can be seen that the core of TCP Server is: creating a Socket, binding IP and port, listening for client connections, and performing data sending and receiving after the connection is successful.

1.4 Advantages of TCP Server

The main advantages of TCP Server are as follows:

For embedded devices, TCP Server is commonly used in scenarios where "the device waits for the host computer to connect." For example, after powering on, the device listens on a fixed port, and the host computer actively connects to the device to read device status, send control commands, or perform parameter configuration.

2. Preparation

2.1 Software Preparation

2.2 Hardware Preparation

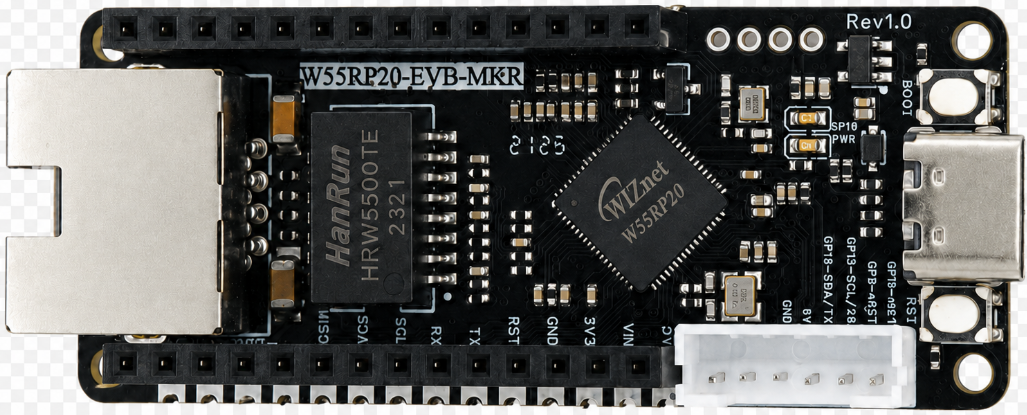

As shown in the figure, the physical image of the W55RP20-EVB-MKR development board.

The following hardware needs to be prepared:

W55RP20-EVB-MKR development board × 1

USB data cable (must support data transmission, pure charging cables cannot be used) × 1

Standard Ethernet cable × 1

Router or switch × 1

W55RP20-EVB-MKR has an onboard Ethernet interface, no additional soldering or wiring of other components is needed, it is plug-and-play. This greatly reduces the probability of wiring errors and hardware failures.

3. Flashing W55RP20 Dedicated MicroPython Firmware

W55RP20 is fully compatible with the Raspberry Pi Pico UF2 firmware flashing method, which is simple to operate and does not require an additional programmer:

Press and hold the BOOTSEL button on the W55RP20-EVB-MKR development board

Connect the development board to the computer using a Micro USB data cable

After the computer recognizes a USB drive named RPI-RP2, release the BOOTSEL button

Drag and drop the downloaded W55RP20_firmware.uf2 firmware file into the USB drive

The development board will automatically restart, and the firmware flashing is complete

Note: If the computer does not recognize the RPI-RP2 USB drive, please try replacing the USB data cable, re-plugging the development board, or changing the computer's USB port.

4. Hardware Connection and Development Environment Configuration

4.1 Hardware Connection

The connection of W55RP20-EVB-MKR is very simple, requiring only two steps:

Connect the development board to the computer using a USB data cable, for power supply, code flashing, and serial debugging

Connect the Ethernet interface of the development board to the LAN port of the router using an Ethernet cable

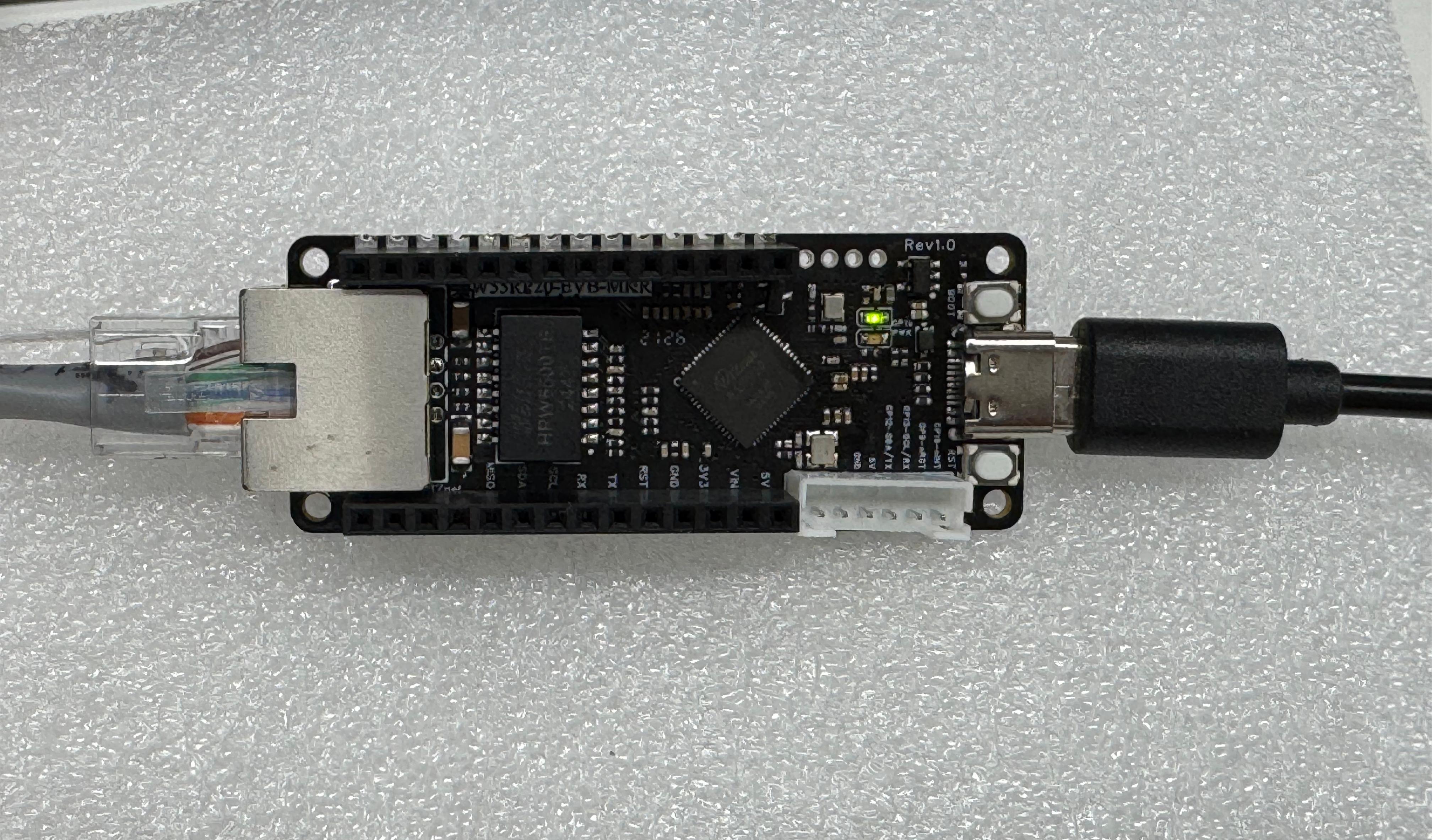

As shown in the figure, the hardware connection schematic diagram

4.2 Thonny Development Environment Configuration

Open Thonny software, click the top menu bar "Run" → "Configure Interpreter"

Switch to the "Interpreter" tab

Select MicroPython (generic) from the "Interpreter" dropdown list

Select the serial port corresponding to W55RP20-EVB-MKR from the "Port" dropdown list (usually displayed as Board CDC @ COMx)

Check "Restart interpreter before running code" and "Synchronize device's real-time clock"

Click "OK" to complete the configuration

If the development board does not appear in the port list, please try:

Re-plug the USB data cable

Replace with a USB data cable that supports data transmission

Close other software occupying the serial port (such as Serial Assistant, Arduino IDE, etc.)

Re-flash the MicroPython firmware

5. SocketTester Configuration

In this experiment, the development board acts as a TCP Server, and the computer's SocketTester acts as a TCP Client.

After opening SocketTester, configure it as follows:

After configuration is complete, click Connect, and the computer will actively connect to the development board's TCP Server.

Note: Server IP address needs to be filled with the IP address printed by the development board in Thonny. In this experiment, the development board IP is 192.168.1.123, and the listening port is 8087.

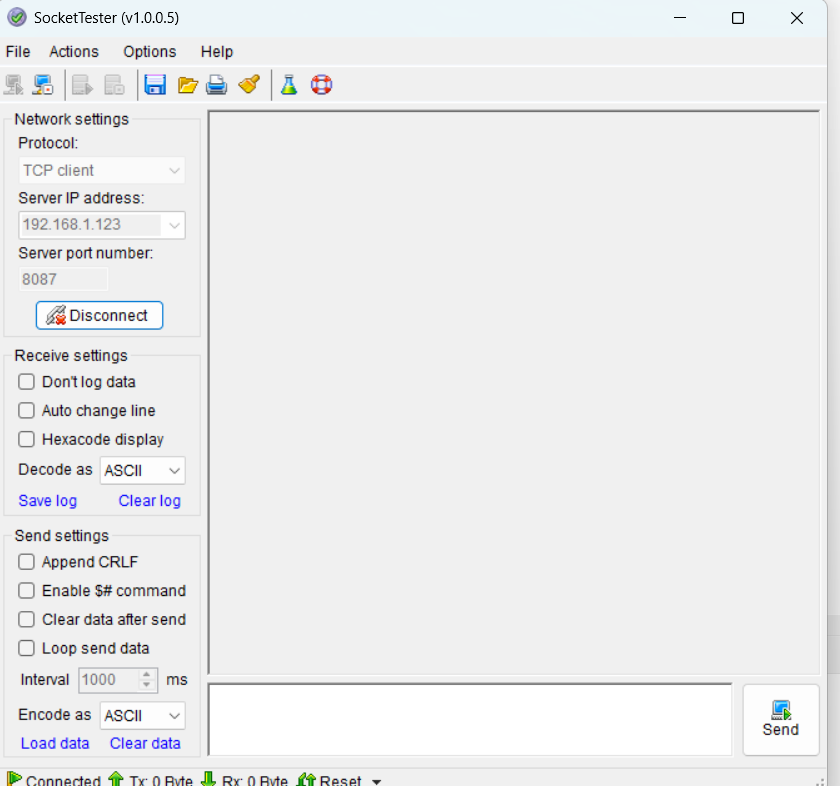

The SocketTester configuration interface is shown in the following figure:

6. TCP Server Example Code

6.1 Complete Code

Open the TCP Server example file, or enter the following code in Thonny:

from wiznet_init import wiznet
import usocket as socket
import time
​
# Initialize W55RP20-EVB-MKR network
# dhcp=True means automatically obtaining IP address through the router
nic = wiznet("W55RP20-EVB-MKR", dhcp=True)
​
# Get the development board's current IP address
local_ip = nic.ifconfig()[0]
​
# Set TCP Server listening port
local_port = 8087
​
print("==================================")
print("    TCP Server started successfully ✅")
print("    IP:", local_ip)
print("    Port:", local_port)
print("==================================")
​
# Create TCP Socket
# AF_INET indicates using IPv4
# SOCK_STREAM indicates using TCP protocol
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
​
# Bind the development board's actual IP address and listening port
# The computer's TCP Client needs to connect to this IP and port
s.bind((local_ip, local_port))
​
# Start listening for client connections
# Parameter 1 means a maximum of 1 client can queue waiting for connection
s.listen(1)
​
print("Waiting for computer TCP Client to connect...")
​
# Block and wait for the computer's TCP Client to connect
# After successful connection, conn is used for subsequent data sending/receiving, addr is the client address information
conn, addr = s.accept()
print("✅ Computer connected:", addr)
​
# Continuously receive data sent from the computer
while True:
    try:
        # Receive data sent from the computer, maximum 1024 bytes
        data = conn.recv(1024)
​
        # If no data is received, the computer may have disconnected
        if not data:
            print("Computer actively disconnected")
            break
​
        # Print the received data
        print("Received:", data)
​
        # Compose reply data
        reply = b"TCP Server : " + data
​
        # Send reply data to the computer's TCP Client
        conn.send(reply)
​
    except Exception as e:
        # If an exception occurs during communication, print exception information and exit the loop
        print("Connection exception:", repr(e))
        break
​
# Close client connection
conn.close()
​
# Close TCP Server Socket
s.close()
​
print("❌ Connection disconnected")

6.2 Key Function Description

The core functions of TCP Server in this example are as follows:

Among them, accept() will block and wait for the computer to connect, and recv() will block and wait for the computer to send data.

7. Running Results and Communication Verification

After completing the SocketTester configuration and running the TCP Server example program, you can observe the communication results through the Thonny Shell and SocketTester window.

7.1 Thonny Serial Output Results

After running the program, the Thonny Shell outputs the following:

>>> %Run -c $EDITOR_CONTENT
​
MPY: soft reboot
Waiting for the network to connect...
Waiting for the network to connect...
Waiting for the network to connect...
Waiting for the network to connect...
MAC Address: 02:90:86:88:4d:56
IP Address: ('192.168.1.123', '255.255.255.0', '192.168.1.1', '202.96.134.33')
==================================
    TCP Server started successfully ✅
    IP: 192.168.1.123
    Port: 8087
==================================
Waiting for computer TCP Client to connect...
✅ Computer connected: ('192.168.1.119', 53891)
Received: b'hello'
Received: b'123'

From the running results, it can be seen that the development board obtained the IP address 192.168.1.123 via DHCP, and started TCP Server on port 8087.

The computer's SocketTester as TCP Client successfully connected to the development board, with the connection address:

('192.168.1.119', 53891)

Subsequently, the computer sent hello and 123, and the development board received b'hello' and b'123' respectively, indicating that TCP Server data reception was successful.

7.2 SocketTester Reception Results

In the SocketTester send box on the computer, enter:

hello

Or:

123

After clicking Send, the development board will receive this data and send back:

TCP Server : hello
TCP Server : 123

The SocketTester reception window shows:

TCP Server : hello
TCP Server : 123

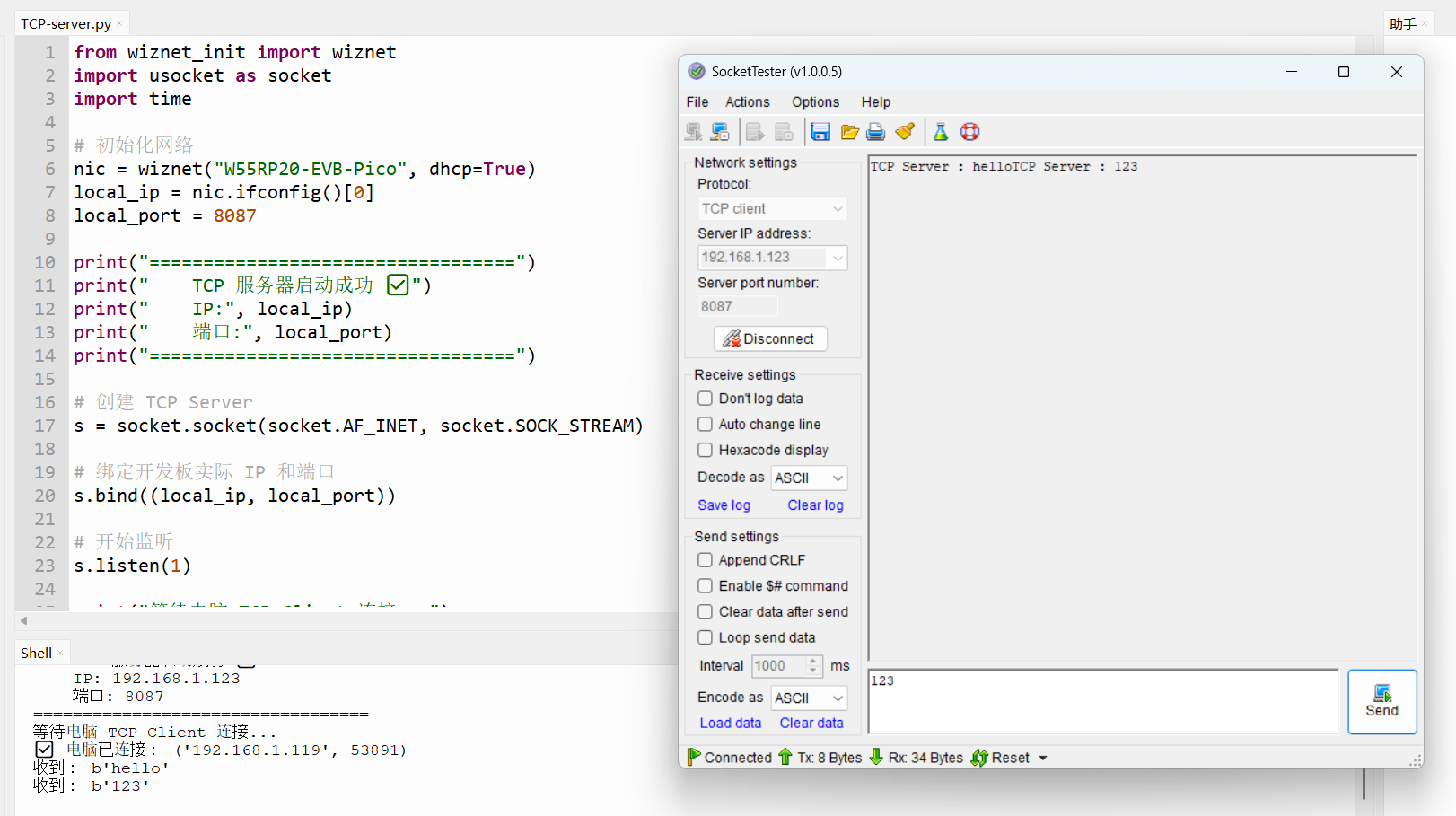

The actual running effect is shown in the following figure, with the Thonny running log on the left and the SocketTester TCP Client data send/receive window on the right.

From the screenshot, it can be seen that the computer's SocketTester has successfully connected to the development board's TCP Server, and received the development board's echo TCP Server : hello and TCP Server : 123, indicating that bidirectional communication verification was successful.

7.3 TCP Server Communication Video Demonstration

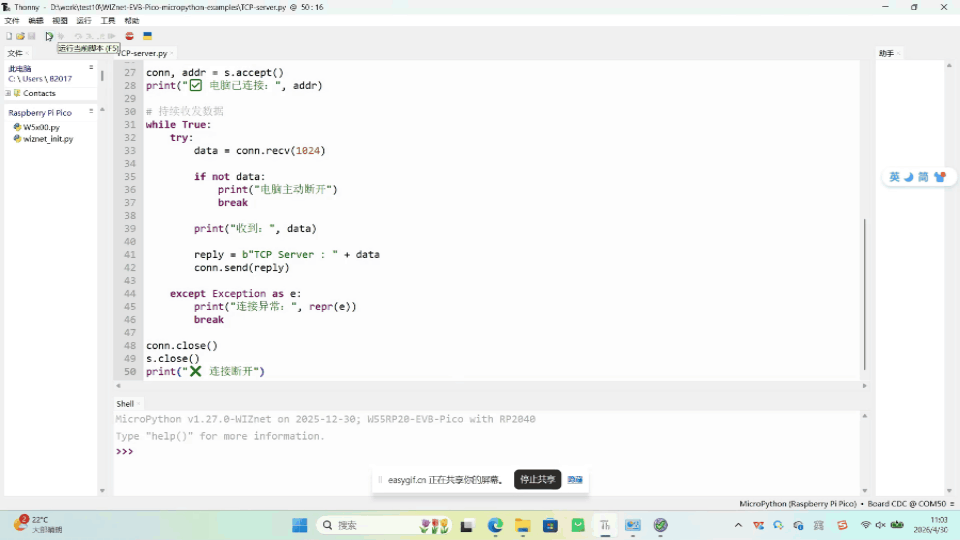

The following video demonstrates the process of W55RP20-EVB-MKR acting as a TCP Server, waiting for the computer's TCP Client to connect, and completing data echo.

8. Common Issues One-Stop Troubleshooting Guide

8.1 Computer TCP Client Connection Failed

8.2 Incorrect Server IP or Port

The development board listening port in this article's code is:

local_port = 8087

If your development board's IP has changed, you need to update it in SocketTester accordingly.

8.3 Port Occupied or Not Released

If you frequently stop and rerun the TCP Server program, you may encounter issues with the port not being released or abnormal connection states.

You can try:

Close SocketTester and reopen it

Stop the program in Thonny and rerun it

Re-plug the development board's USB

Change the listening port, for example from 8087 to 8088

Confirm that no other program is connecting to the same port

8.4 Program Stuck at accept()

The following in the code:

conn, addr = s.accept()

is a blocking wait for the computer's TCP Client to connect.

If the computer has not clicked Connect, the program will stay here indefinitely. This is normal behavior and is not a crash.

Solutions:

Open SocketTester

Select TCP client

Enter the development board's IP and port

Click Connect

Check if Thonny prints ✅ Computer connected

8.5 Computer Cannot Receive Reply

If the development board has received data but the computer's SocketTester does not show a reply, you can check:

Whether SocketTester has checked Don't log data

Whether the SocketTester reception area has been cleared

Whether Decode as is set to ASCII

Whether the development board code has executed conn.send(reply)

Whether the TCP connection has already been disconnected

When the computer normally receives a reply, it should display:

TCP Server : hello
TCP Server : 123

9. W55RP20 Core Advantages Comparison

To give you a more intuitive understanding of the value of W55RP20, we compared the three mainstream embedded Ethernet solutions:

10. Typical Application Scenarios

The W55RP20 chip integrates Ethernet functionality and, combined with its industrial-grade stability, is very suitable for the following application scenarios:

Industrial Data Acquisition Gateway: Simplify on-site deployment, achieve stable uploading of sensor data

Remote Monitoring Terminal: Used for remote monitoring of equipment status in factories, server rooms, substations, and other environments

Serial-to-Ethernet Device: Quickly upgrade traditional RS232/RS485 serial devices to Ethernet devices

Smart Building Node: Used for network control of lighting, HVAC, access control, and other building equipment

Industrial PLC Expansion Module: Add Ethernet communication capability to PLCs, enabling remote programming and data acquisition

Article Summary

Starting from the basic concepts of TCP Server, this article systematically introduced how to implement TCP Server communication based on the W55RP20-EVB-MKR development board. With the support of the WIZnet hardware TCP/IP protocol stack and MicroPython's socket interface, only a small amount of code is needed to complete the entire process of the development board listening on a port, waiting for client connections, and performing bidirectional data communication, laying a solid foundation for advanced applications such as UDP communication, HTTP applications, and MQTT cloud connectivity.

Reviewing the core points of this article:

TCP Server Basic Concepts: Understood the core role of TCP Server as "the party waiting for a connection" — binding the local IP and port, continuously listening for client connection requests, and performing bidirectional data communication with the Client after a successful connection

SocketTester Configuration: Completed the configuration of the TCP Client testing tool on the computer, including protocol selection (TCP client), Server IP address (development board IP), and Server port number (development board listening port) settings, ensuring consistency with the development board code parameters

TCP Server Code Implementation: Used socket.socket() to create a Socket, bind() to bind IP and port, listen() to start listening, accept() to block and wait for client connections, and recv() to receive data, send() to send replies

Communication Result Verification: Verified bidirectionally through Thonny serial output and SocketTester reception window, confirming that the development board successfully received data from the computer and echoed TCP Server : hello, TCP Server communication function is complete

Fault Troubleshooting: Summarized troubleshooting methods for five categories of common issues: computer TCP Client connection failure, incorrect IP/port, port occupied or not released, program stuck at accept(), and computer unable to receive reply

W55RP20 Solution Advantages: Compared the W55RP20 integrated solution, external PHY chip solution, and external serial-to-Ethernet module solution; W55RP20's single-chip integration, 0% CPU usage, and hardware Sockets are particularly advantageous in device listening and host computer active connection scenarios

After mastering the TCP Server communication technology in this article, your embedded device already has the core capability to listen on a port, wait for client connections, and perform bidirectional data interaction. The next article will move on to learning UDP Unicast Data Communication, understanding the characteristics and applicable scenarios of connectionless communication.

11. Series Preview and Resource Access

11.1 Series Preview

The next tutorial will cover UDP Unicast Data Communication in W55RP20 MicroPython development.

Unlike TCP, UDP does not require establishing a connection, making it suitable for communication scenarios with high real-time requirements that can tolerate minor packet loss.

11.2 Resource Access

Complete code for this article: WIZnet Pico MicroPython Example Project

W55RP20 Chip Manual: WIZnet Official Resources Page

If this article is helpful to you, welcome to like, bookmark, and follow. Your support is our motivation for continuous updates!

If you have any questions, welcome to leave a message in the comments section, and we will reply as soon as possible.
