W55RP20-EVB-MKR Module MicroPython Practice (2) - 10 Minutes to Ethernet DHCP Automatic Networking

This article is the 2nd part of the WIZnet W55RP20 chip MicroPython tutorial, written based on the latest official firmware. All code has been verified in practice and can be directly flashed and run. Copyright Notice: This article is an original technical article from WIZnet. Please indicate the source when reprinting.

Preface

In the previous article, we completed W55RP20 Chip Static IP Configuration and Network Basics, and understood the meanings of basic network parameters such as IP address, subnet mask, gateway, and DNS.

This article continues to focus on the Ethernet networking methods of the W55RP20 chip, with emphasis on DHCP automatic IP address acquisition.

In practical projects, manually configuring static IP addresses each time can easily lead to issues such as inconsistent network segments, IP address conflicts, and incorrect gateway entries. DHCP allows the development board to automatically obtain network parameters from the router, reducing configuration difficulty and making it more suitable for quick verification of the development board's Ethernet functionality.

The W55RP20-EVB-MKR Development Board already has an onboard Ethernet interface. Combined with the MicroPython example project, you only need to run a simple DHCP example code to enable the development board to automatically obtain an IP address.

After reading this article, you will master:

The difference between static IP and DHCP

The basic flow of DHCP automatic networking

How to view MAC address and IP address information

How to determine whether DHCP acquisition was successful

Troubleshooting methods for common networking failure issues

Series Tutorial Learning Path

This series consists of 16 articles, progressively covering the full process from basic networking to industrial-grade applications:

Part 1: Static IP Configuration and Network Basics

Part 2: DHCP Automatic Networking and Network Diagnostics (This Article)

Part 3: TCP Client Communication

Part 4: TCP Server Communication

Part 5: UDP Unicast Data Communication

Part 6: UDP Multicast/Broadcast Data Communication

Part 7: DNS Domain Name Resolution

Part 8: NTP - Getting Time from the Network

Part 9: HTTP Client Requests

Part 10: HTTP Server Setup

Part 11: HTTP Protocol and OneNET Platform Data Cloud Upload

Part 12: MQTT Protocol Basic Communication Verification

Part 13: MQTT Protocol and Alibaba Cloud Platform Integration

Part 14: MQTT Protocol and OneNET Platform Integration

Part 15: MQTT Protocol and ThingSpeak Platform Integration

Part 16: Modbus Industrial Protocol Communication

It is recommended to bookmark this series and follow the tutorials step by step. All code will be synced and updated to the official Gitee repository.

Table of Contents

1 Preparation

1.1 Software Preparation

1.2 Hardware Preparation

2 Flashing W55RP20 Exclusive MicroPython Firmware

3 Hardware Connection and Development Environment Configuration

3.1 Hardware Connection

3.2 Thonny Development Environment Configuration

4 DHCP Automatic Networking Principles

4.1 DHCP Protocol Introduction

4.2 DHCP Workflow

5 Core Code Analysis

5.1 Complete Code

5.2 Extension: Static IP Configuration

6 Running Results and Network Verification

6.1 Serial Output Result Screenshots

6.2 DHCP Automatic Networking GIF Demonstration

7 Common Issues One-Stop Troubleshooting Guide

7.1 Flashing-Related Issues

7.2 Port Identification Issues

7.3 Network Connection Issues

8 W55RP20 Core Advantages Comparison

9 Typical Application Scenarios

Article Summary

10 Series Preview and Resource Access

10.1 Series Preview

10.2 Resource Access

1. Preparation

1.1 Software Preparation

1.2 Hardware Preparation

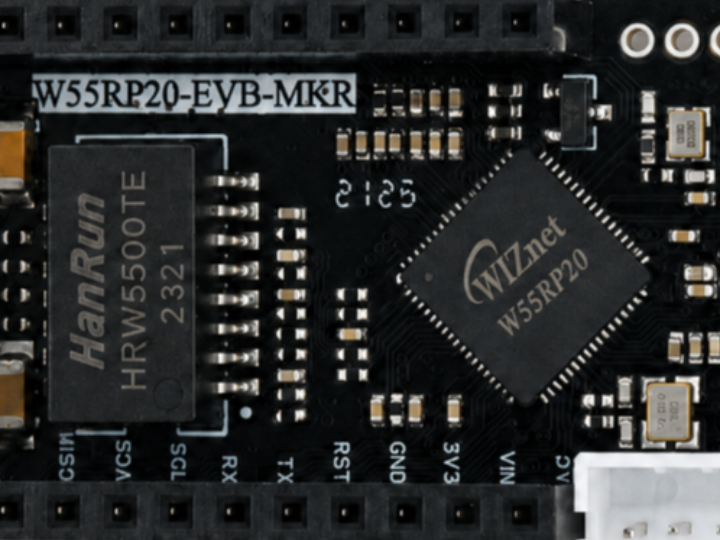

As shown in the figure, the W55RP20-EVB-MKR development board physical photo.

The following hardware needs to be prepared:

W55RP20-EVB-MKR development board × 1;

USB data cable × 1;

Standard Ethernet cable × 1;

Router or switch with DHCP function enabled × 1.

Tip: The W55RP20-EVB-MKR already has an onboard Ethernet interface, no additional soldering or flying wires to other components required, plug and play. This significantly reduces the probability of wiring errors and hardware failures.

2. Flashing W55RP20 Exclusive MicroPython Firmware

The W55RP20-EVB-MKR development board is compatible with the Raspberry Pi Pico UF2 firmware flashing method. The operation steps are as follows:

Use a USB data cable to connect the development board and the computer;

Press and hold the BOOTSEL button on the development board;

Press the RUN button once;

Release the buttons after the computer recognizes the RPI-RP2 disk;

Drag the .uf2 firmware file into the RPI-RP2 disk;

The development board automatically restarts, and firmware flashing is complete.

Note: If the computer does not recognize the RPI-RP2 USB drive, please try replacing the USB data cable, re-plugging the development board, or changing the computer USB port

3. Hardware Connection and Development Environment Configuration

3.1 Hardware Connection

The connection of W55RP20-EVB-MKR is extremely simple, requiring only two steps:

Use a USB data cable to connect the development board to the computer (for power supply, code flashing, and serial debugging)

Use an Ethernet cable to connect the development board's Ethernet interface to the router's LAN port

As shown in the figure, this is the hardware connection diagram.

3.2 Thonny Development Environment Configuration

Open Thonny software, click the top menu bar "Run" → "Configure Interpreter"

Switch to the "Interpreter" tab

Select MicroPython (generic) from the "Interpreter" dropdown list

Select the serial port corresponding to W55RP20 from the "Port" dropdown list (usually displayed as Board CDC @ COMx)

Check "Restart interpreter before running code" and "Synchronize device's real-time clock"

Click "OK" to complete configuration

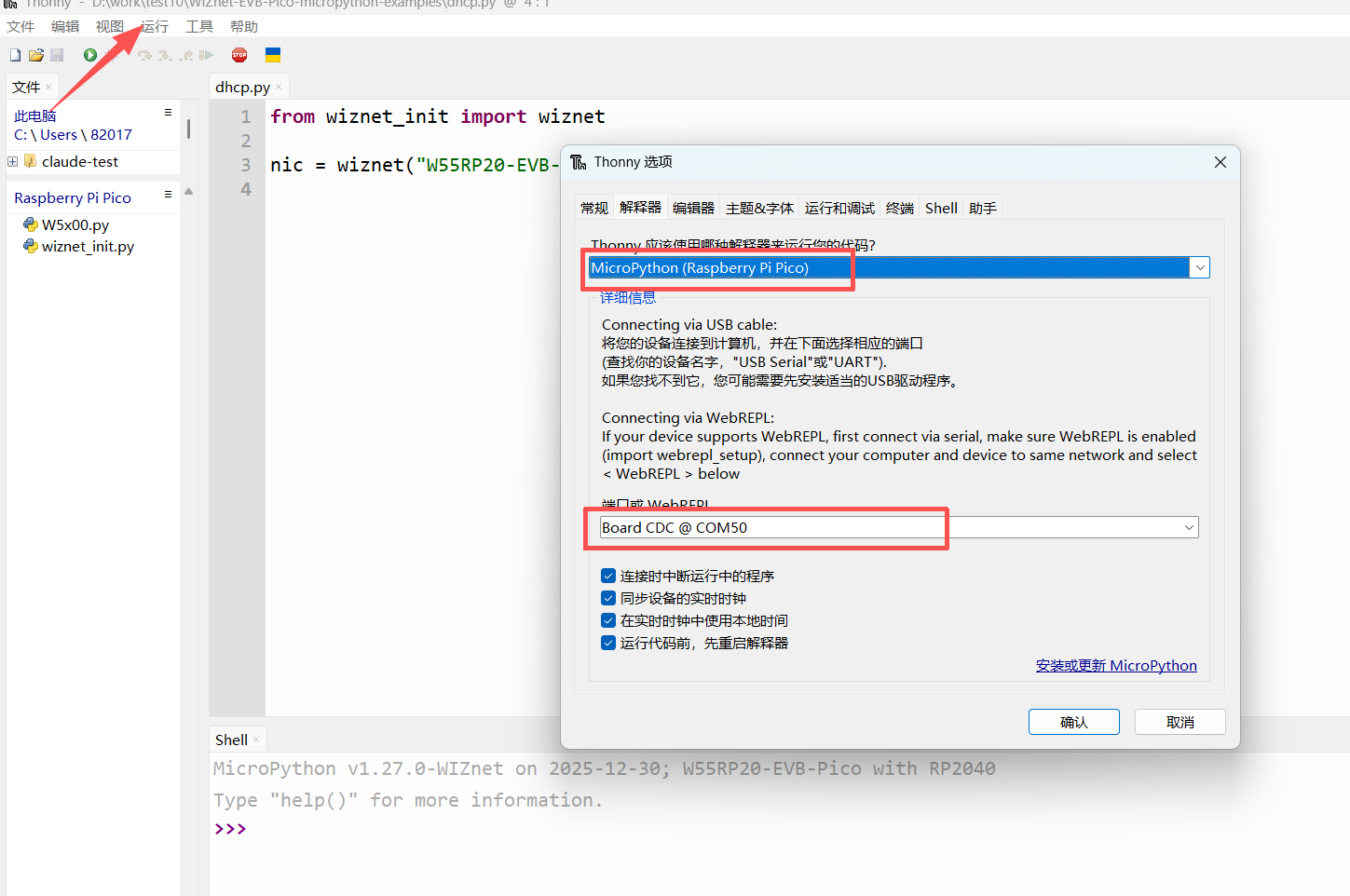

The interface after configuration is complete is shown in the following figure:

If the development board does not appear in the port list, please try:

Re-plug the USB data cable

Replace with a USB data cable that supports data transmission

Close other software occupying the serial port (such as serial assistants, Arduino IDE, etc.)

Re-flash the MicroPython firmware

4. DHCP Automatic Networking Principles

4.1 DHCP Protocol Introduction

DHCP, fully known as Dynamic Host Configuration Protocol, is commonly referred to as the Dynamic Host Configuration Protocol in Chinese.

Its role is to allow devices to automatically obtain network parameters from a DHCP server after connecting to the network. In home or office networks, the router typically acts as the DHCP server.

After the development board successfully connects to the network through DHCP, the following parameters can usually be obtained:

Simply put, DHCP allows the development board to automatically request an available IP address from the router.

4.2 DHCP Workflow

The DHCP operation flow of W55RP20-EVB-MKR can be understood as:

Development board powers on
↓
Initialize Ethernet hardware
↓
Send DHCP request
↓
Router assigns IP address
↓
Development board obtains IP, gateway, DNS and other parameters
↓
Application reads and prints network information

5. Core Code Analysis

The W55RP20 MicroPython library has encapsulated all underlying details. Implementing DHCP automatic networking requires only X lines of core code.

5.1 Complete Code

Open the DHCP example file, or enter the following code in Thonny:

from wiznet_init import wiznet  # Import WIZnet network initialization function
​
# Initialize W55RP20-EVB-MKR network
# dhcp=True means enable DHCP, let the router automatically assign IP address, gateway, DNS and other network parameters
nic = wiznet("W55RP20-EVB-MKR", dhcp=True)

5.2 Extension: Static IP Configuration (Optional)

If you need to use a static IP address, you can change dhcp=True to dhcp=False and manually pass in the IP, subnet mask, gateway, and DNS parameters.

from wiznet_init import wiznet  # Import WIZnet network initialization function
​
# Initialize network with static IP
nic = wiznet(
    "W55RP20-EVB-MKR",
    dhcp=False,              # Disable DHCP, enable static IP
    ip="192.168.1.129",      # Development board fixed IP address
    sn="255.255.255.0",      # Subnet mask
    gw="192.168.1.1",        # Gateway address, usually the router address
    dns="8.8.8.8"            # DNS server address
)

Note that the static IP address needs to be in the same network segment as the computer and router.

For example, if the router address is 192.168.1.1, the development board IP can be set to 192.168.1.xxx, such as 192.168.1.129. The xxx part is recommended to choose an address not occupied by other devices in the local network.

6. Running Results and Network Verification

After completing the hardware connection and Thonny development environment configuration, you can run the DHCP example program and check whether the W55RP20-EVB-MKR has successfully obtained an IP address.

This section mainly demonstrates the DHCP automatic networking process through running result screenshots and video demonstration.

6.1 Serial Output Result Screenshots

In Thonny, click the run button, or press F5 to run the program.

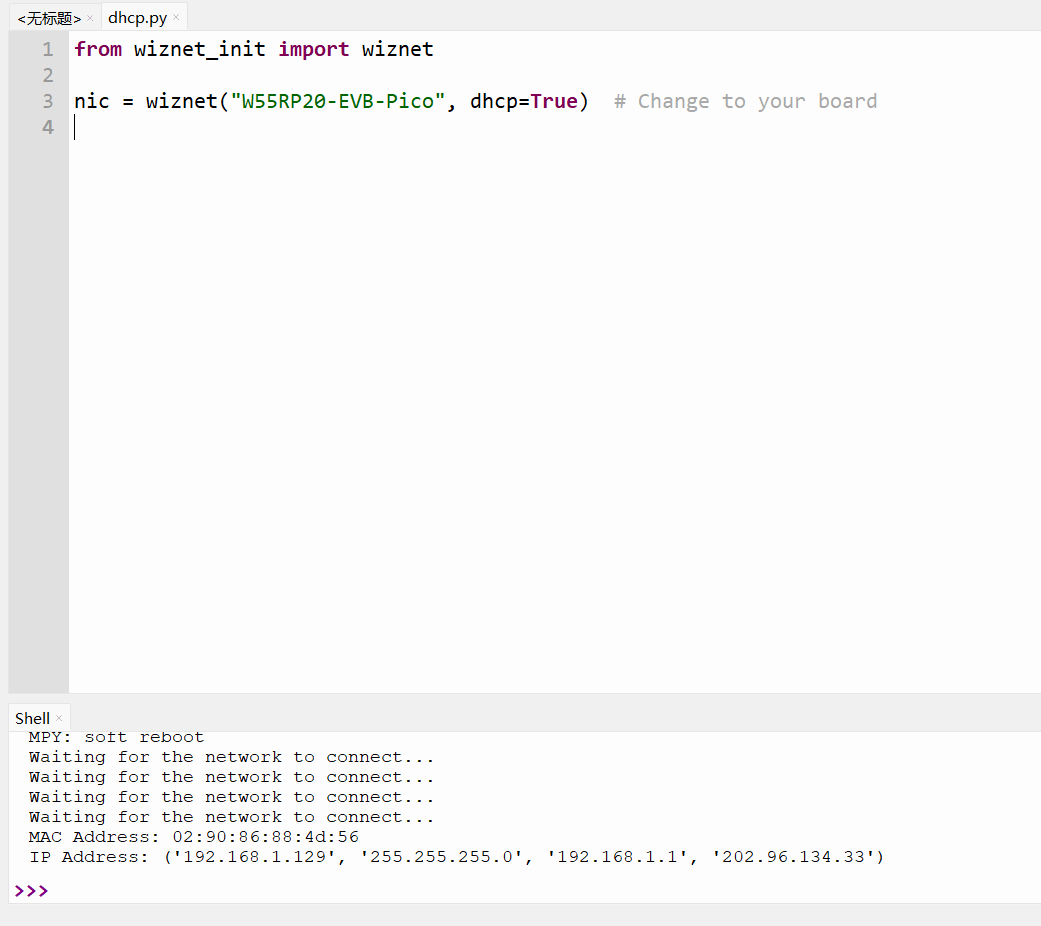

After running, the Shell window will output something similar to the following:

MPY: soft reboot
Waiting for the network to connect...
Waiting for the network to connect...
Waiting for the network to connect...
Waiting for the network to connect...
MAC Address: 02:90:86:88:4d:56
IP Address: ('192.168.1.129', '255.255.255.0', '192.168.1.1', '202.96.134.33')

Note: The Waiting for the network to connect... printed in the early stage of program execution is a normal phenomenon. This is the W55RP20 waiting for the router to assign an IP address. It is usually printed 1-3 times, depending on the network environment.

The actual running result is shown in the following figure:

From the running results, it can be seen that the program eventually printed out the MAC address and IP address information.

Among them:

MAC Address: 02:90:86:88:4d:56

Represents the MAC address of the current development board.

IP Address: ('192.168.1.129', '255.255.255.0', '192.168.1.1', '202.96.134.33')

Represents the network parameters obtained by the development board through DHCP.

The field descriptions are as follows:

If the first field is not 0.0.0.0, but a valid local network IP like 192.168.x.x, it means DHCP acquisition was successful.

6.2 DHCP Automatic Networking Video Demonstration

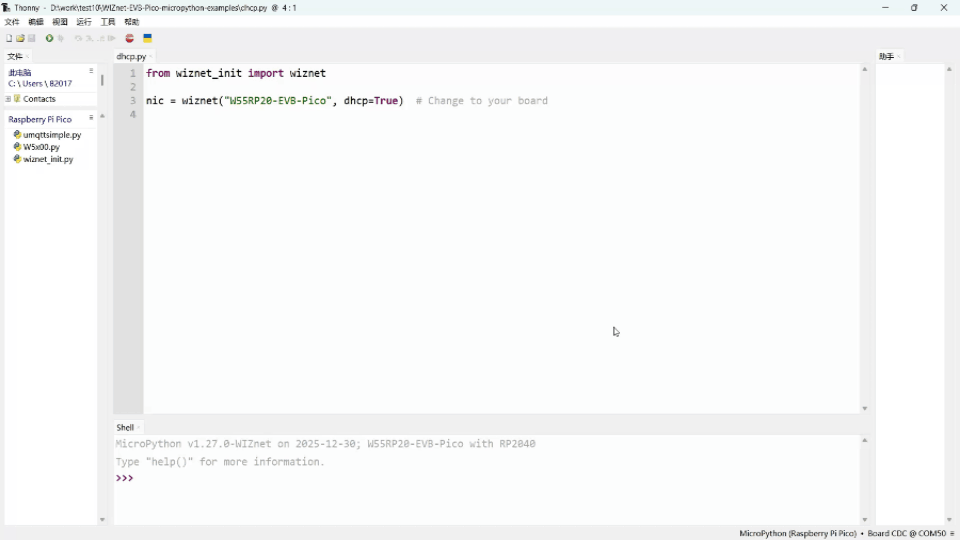

The video below shows the process of the development board automatically obtaining an IP address through DHCP after running dhcp.py.

The program eventually prints out MAC Address and IP Address, where IP Address is a valid local network address, indicating that the W55RP20-EVB-MKR has successfully connected to the network.

The video demonstration is as follows: From the screenshots and video, it can be seen that the W55RP20-EVB-MKR has successfully obtained an IP address through DHCP, indicating that the development board has properly connected to the local network. Subsequent TCP, UDP, MQTT, HTTP and other network communication tests can be performed.
