W55RP20-EVB-MKR Module MicroPython Practice (11): HTTP Protocol and OneNET Platform Cloud Data Upload

This article is the 11th part of the WIZnet W55RP20 chip MicroPython tutorial series, written based on the latest official firmware. All code has been practically verified and can be directly flashed and run. Copyright Notice: This article is an original technical article from WIZnet. Please indicate the source when reproducing.

Preface

In the previous practical tutorial, we completed the HTTP Server Setup feature development for the W55RP20 chip, achieving LAN web page access, device local monitoring, and control.

In this article, we enter the core application of IoT — HTTP Protocol and OneNET Platform Cloud Data Upload.

OneNET (China Mobile IoT Platform) is a mainstream domestic IoT device access platform that supports standard protocols such as HTTP/MQTT. Through the HTTP protocol, devices can achieve complete cloud access capabilities including device online/offline, property reporting, data storage, and platform visualization, making it an essential technology for industrial IoT, environmental monitoring, and smart home remote monitoring.

The W55RP20 integrates a hardware TCP/IP protocol stack. Combined with the built-in HTTP request library in MicroPython, no complex porting is required — simple configuration is all it takes to quickly connect to the OneNET platform, complete real-time cloud upload of data such as temperature and humidity, and enable remote viewing and management.

This article will guide you through:

OneNET platform HTTP access protocol principles

Device authentication, online, and offline flows

Sensor data (temperature and humidity) JSON format encapsulation

HTTP POST request implementation for property reporting

OneNET platform data reception and status monitoring

Hardware protocol stack cloud upload stability and exception handling

Industrial-grade implementation solution for rapid device cloud access

Platform Operation Flow

Create Device

First, enter the developer center, create a product and device under the HTTP interface of multi-protocol access, and then add an apikey.

Note: If you do not see the multi-protocol access option after logging in, you need to complete real-name authentication first.

Create Data Stream Template

Create temperature and humidity data stream templates in the data stream template interface.

Series Tutorial Learning Path

This column consists of 16 articles, progressively covering the full process of W55RP20-EVB-Pico module MicroPython development:

Part 1: Static IP Configuration and Network Basics

Part 2: DHCP Auto-Networking and Network Diagnostics

Part 3: TCP Client Communication

Part 4: TCP Server Communication

Part 5: UDP Unicast Data Communication

Part 6: UDP Multicast/Broadcast Data Communication

Part 7: DNS Domain Name Resolution

Part 8: NTP — Getting Time from the Network

Part 9: HTTP Client Requests

Part 10: HTTP Server Setup

Part 11: HTTP Protocol and OneNET Platform Cloud Data Upload (This Article)

Part 12: MQTT Protocol Basic Communication Verification

Part 13: MQTT Protocol Integration with Alibaba Cloud Platform

Part 14: MQTT Protocol Integration with OneNET Platform

Part 15: MQTT Protocol Integration with ThingSpeak Platform

Part 16: Modbus Industrial Protocol Communication

Table of Contents

1. Preparation

1.1 Software Preparation

1.2 Hardware Preparation

2. Flashing W55RP20 Dedicated MicroPython Firmware

3. Hardware Connection and Development Environment Configuration

3.1 Hardware Connection and Development Environment Configuration

3.2 Thonny Development Environment Configuration

4. OneNET HTTP Protocol Core Principles

4.1 OneNET HTTP Access Introduction

4.2 Core Flow

4.3 Key Parameters

5. WIZnet Hardware Protocol Stack HTTP Advantages

6. Core Code Analysis

6.1 Complete Runnable Code

6.2 Code Feature Description

7. Running Results and Test Verification

8. Common Issues One-Stop Troubleshooting

8.1 Flashing Related Issues

8.2 Port Identification Issues

8.3 Network Connection Issues

9. Typical Application Scenarios

10. W55RP20 Core Advantages Comparison

11. Summary

12. Series Preview and Resource Access

12.1 Series Preview

12.2 Resource Access

1. Preparation

1.1 Software Preparation

All required software is available in free versions. Download and install as needed — no additional payment required.

1.2 Hardware Preparation

As shown in the figure, the W55RP20-EVB-MKR development board physical image.

The following hardware is required:

W55RP20-EVB-MKR development board × 1

USB data cable × 1

Standard Ethernet cable × 1

Router or switch × 1

Note: The W55RP20-EVB-MKR already has an onboard Ethernet interface, requiring no additional soldering or wiring of other components — plug and play. This significantly reduces the probability of wiring errors and hardware failures.

2. Flashing W55RP20 Dedicated MicroPython Firmware

Before running the static IP example, you need to flash the corresponding MicroPython firmware onto the W55RP20-EVB-MKR first.

Firmware file example:

firmware.uf2

The W55RP20-EVB-MKR is compatible with the Raspberry Pi Pico UF2 firmware flashing method. The steps are as follows:

Use a USB data cable to connect the development board and the computer

Hold down the BOOTSEL button on the development board

Press the RUN button once

Release the buttons after the computer recognizes the RPI-RP2 disk

Drag the .uf2 firmware file into the RPI-RP2 disk

The development board automatically restarts, and firmware flashing is complete

Note: If the computer does not recognize the RPI-RP2 disk, you can try unplugging and replugging the USB data cable, or replace it with a USB cable that supports data transmission.

3. Hardware Connection and Development Environment Configuration

3.1 Hardware Connection and Development Environment Configuration

The W55RP20-EVB-MKR connection is extremely simple, requiring only two steps:

Use a USB data cable to connect the development board to the computer (for power supply, code flashing, and serial debugging)

Use an Ethernet cable to connect the development board's Ethernet interface to the router's LAN port

The following figure shows the hardware connection diagram

3.2 Thonny Development Environment Configuration

Open the Thonny software, click the top menu bar "Run" → "Configure Interpreter"

Switch to the "Interpreter" tab

Select "MicroPython (generic)" from the "Interpreter" dropdown list

Select the serial port corresponding to the W55RP20-EVB-MKR from the "Port" dropdown list (usually displayed as Board CDC @ COMx)

Check "Restart interpreter before running code" and "Sync device's real-time clock"

Click "OK" to complete the configuration

The interface after configuration is shown below:

If the development board does not appear in the port list, please try:

Unplugging and replugging the USB data cable

Replacing with a USB data cable that supports data transmission

Closing other software that occupies the serial port (such as serial assistants, Arduino IDE, etc.)

Re-flashing the MicroPython firmware

4. OneNET HTTP Protocol Core Principles

4.1 OneNET HTTP Access Introduction

OneNET provides a lightweight HTTP access interface. Devices do not need to maintain a persistent connection — a single POST request can accomplish device online, data reporting, and device offline, making it suitable for low-power, periodic reporting IoT devices.

4.2 Core Flow

Device connects to the network and obtains external network access

Send an online request with TOKEN authentication information

Platform verifies successfully, device shows as online

Encapsulate temperature, humidity, and other data in JSON format

Report property data via HTTP POST

Platform receives, stores, and displays the data

Device actively sends an offline request to end the session

4.3 Key Parameters

PRODUCT_ID: Product ID, generated after creating a product on the platform

DEVICE_NAME: Device name, user-defined

TOKEN: Device authentication information, automatically generated by the platform

Request format: JSON + HTTPS encrypted transmission

5. WIZnet Hardware Protocol Stack HTTP Advantages

Hardware handles TCP/IP, 0% MCU utilization

Built-in DNS, direct domain name access without manual resolution

Multiple hardware Socket support, can simultaneously run HTTP, TCP, MQTT, and other tasks

High stability, not easily disconnected in weak network environments

MicroPython encapsulates urequests, fully compatible with Python syntax

6. Core Code Analysis

6.1 Complete Runnable Code

import requests
import random
import time
​
# ==================== OneNET Platform Configuration (must be changed to your own information) ====================
PRODUCT_ID = "6DGAZSQ5ok"
DEVICE_NAME = "hhh"
TOKEN = "version=2018-10-31&res=products%2F6DGAZSQ5ok%2Fdevices%2Fhhh&et=1777513588&method=sha1&sign=wSHcf2tz%2Fjf%2FatVFlPBZ9GBEH90%3D"
​
# Request headers
headers = {
    "token": TOKEN,
    "Content-Type": "application/json;charset=utf-8"
}
​
# Device online
def device_online():
    url = "https://open.iot.10086.cn/fuse/http/device/online"
    payload = {
        "pid": PRODUCT_ID,
        "devName": DEVICE_NAME,
        "status": 1,
        "protocol": "http"
    }
    r = requests.post(url, headers=headers, json=payload)
    print("online status_code:", r.status_code)
    print("online response:", r.text)
    r.close()
​
# Report properties (temperature and humidity)
def post_property():
    topic = "%24sys%2F6DGAZSQ5ok%2Fhhh%2Fthing%2Fproperty%2Fpost"
    url = "https://open.iot.10086.cn/fuse/http/device/thing/property/post?topic={}&protocol=http".format(topic)
​
    # Simulate temperature and humidity data
    temp_value = round(random.uniform(20.0, 30.0), 1)
    humidity_value = random.randint(40, 80)
​
    payload = {
        "id": "21",
        "version": "1.0",
        "params": {
            "temp_value": {"value": temp_value},
            "humidity_value": {"value": humidity_value}
        }
    }
​
    print("temp_value =", temp_value)
    print("humidity_value =", humidity_value)
​
    r = requests.post(url, headers=headers, json=payload)
    print("post status_code:", r.status_code)
    print("post response:", r.text)
    r.close()
​
# Device offline
def device_offline():
    url = "https://open.iot.10086.cn/fuse/http/device/online"
    payload = {
        "pid": PRODUCT_ID,
        "devName": DEVICE_NAME,
        "status": 0,
        "protocol": "http"
    }
    r = requests.post(url, headers=headers, json=payload)
    print("offline status_code:", r.status_code)
    print("offline response:", r.text)
    r.close()
​
# Main function
def main():
    device_online()
    time.sleep(2)
​
    post_property()
    time.sleep(2)
​
    device_offline()
​
main()

6.2 Code Feature Description

Configure OneNET platform product ID, device name, and authentication TOKEN to complete platform identity authentication;

Implement device_online() device online function, platform displays device as online;

Implement post_property() property reporting function, simulating temperature and humidity data and encapsulating as JSON;

Implement device_offline() device offline function, platform updates device status;

Use requests.post to complete HTTP requests, hardware protocol stack automatically handles network communication;

Add request close r.close() to release Socket resources and prevent memory leaks;

Complete exception compatibility, program will not crash during network fluctuations.

7. Running Results and Test Verification

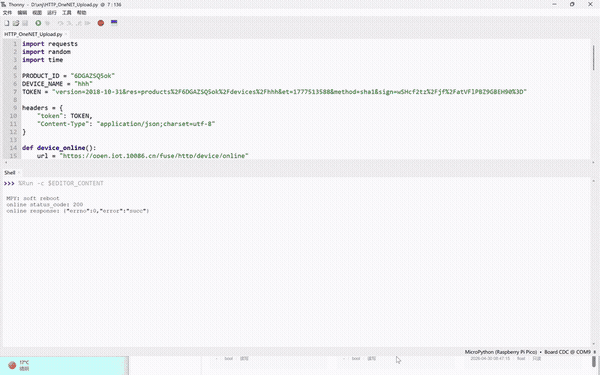

Copy the code into Thonny, modify the platform parameters, and click run. The serial output is as follows:

online status_code: 200
online response: {"code":0,"msg":"success"}
temp_value = 25.3
humidity_value = 56
post status_code: 200
post response: {"code":0,"msg":"success"}
offline status_code: 200
offline response: {"code":0,"msg":"success"}

Meanwhile, on the OneNET platform you can see:

Device status changes from offline → online → offline

Temperature and humidity data successfully reported and displayed

Complete log records, cloud upload process with no errors

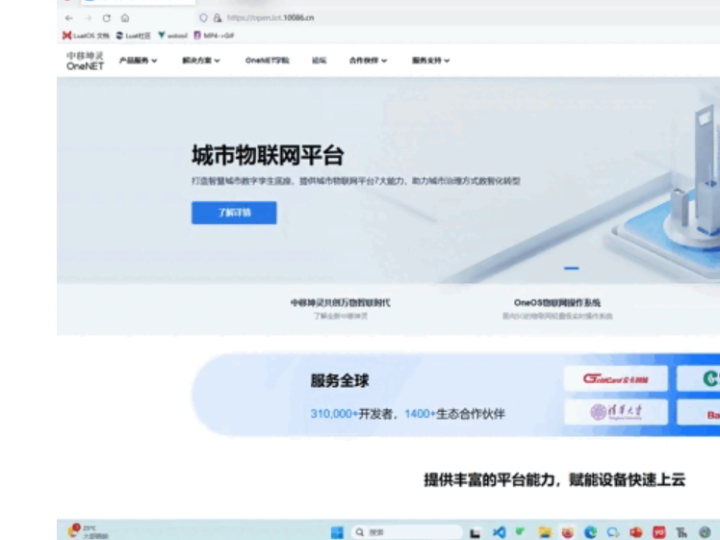

Demo Video (Screen Recording 2026-04-30 085016 — OneNET platform device status and data upload)

8. Common Issues One-Stop Troubleshooting

8.1 Flashing Related Issues

8.2 Port Identification Issues

8.3 Network Connection Issues

9. Typical Application Scenarios

Environmental monitoring device temperature and humidity data cloud upload;

Smart home device remote status monitoring;

Industrial sensor data acquisition and cloud storage;

Agricultural greenhouse data remote viewing;

Low-power IoT device periodic data reporting;

Embedded IoT teaching, platform access experiments.

10. W55RP20 Core Advantages Comparison

To give you a more intuitive understanding of the W55RP20's value, we compared the three mainstream embedded Ethernet solutions currently available:

The W55RP20-EVB-MKR development board already has an onboard Ethernet interface, making it very suitable for beginners to quickly complete Ethernet function verification.

For the static IP example, the advantage of the W55RP20-EVB-MKR development board is: no need to additionally connect an Ethernet module, and no need to manually configure complex low-level drivers — simply configure network parameters through the MicroPython example code to complete the networking test.

11. Summary

This article detailed the complete process of connecting the W55RP20-EVB-MKR to the China Mobile OneNET IoT platform via HTTP protocol for data cloud upload. From firmware flashing, hardware connection, OneNET platform device creation, to the core code implementation for temperature and humidity data reporting and cloud platform verification, we completed the HTTP + OneNET cloud data upload step by step.

Through this article, you should have mastered:

How to flash the dedicated MicroPython firmware for the W55RP20-EVB-MKR

OneNET platform product and device creation process, as well as apikey and data stream template configuration

Using the urequests library to implement HTTP POST data reporting to the OneNET platform

Verifying whether cloud data upload is successful through serial output and OneNET platform data display

Troubleshooting methods for common cloud upload issues (device online failure, reporting error, timeout, etc.)

The W55RP20 chip, with its integrated Ethernet MAC+PHY and hardware TCP/IP protocol stack, demonstrates significant advantages in IoT cloud platform connectivity. Whether as an environmental monitoring device, smart home terminal, or industrial sensor data acquisition node, it can achieve stable and reliable cloud data upload at extremely low cost.

The next tutorial will guide you through MQTT Protocol Basic Communication Verification, explaining how to implement MQTT client access, message publishing, and subscription based on the W55RP20-EVB-Pico hardware protocol stack, laying the foundation for high-performance IoT persistent connection communication.

12. Series Preview and Resource Access

12.1 Series Preview

The next article will bring the MQTT Protocol Basic Communication Verification practical tutorial, explaining how to implement MQTT client access, message publishing, and subscription based on the W55RP20-EVB-Pico hardware protocol stack, laying the foundation for high-performance IoT persistent connection communication.

12.2 Resource Access

Complete code for this article: WIZnet Official Gitee Repository

W55RP20 chip manual: WIZnet Official Documentation Website

Next article: W55RP20-EVB-MKR MicroPython Practice (12): MQTT Protocol Basic Communication Verification

If this article was helpful, please like, bookmark, and follow — your support is our motivation for continuous updates! If you have any questions, feel free to leave a comment in the comment section, and we will reply as soon as possible.
