Project description

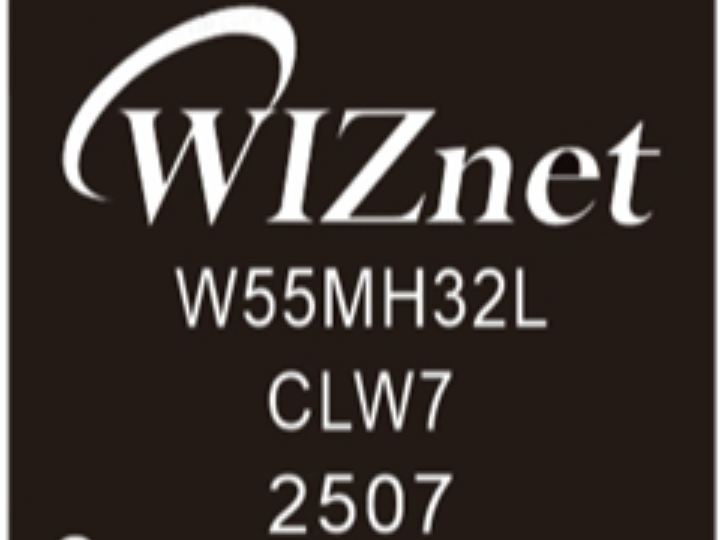

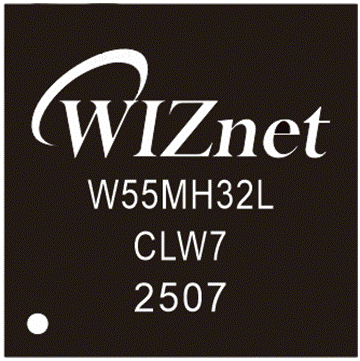

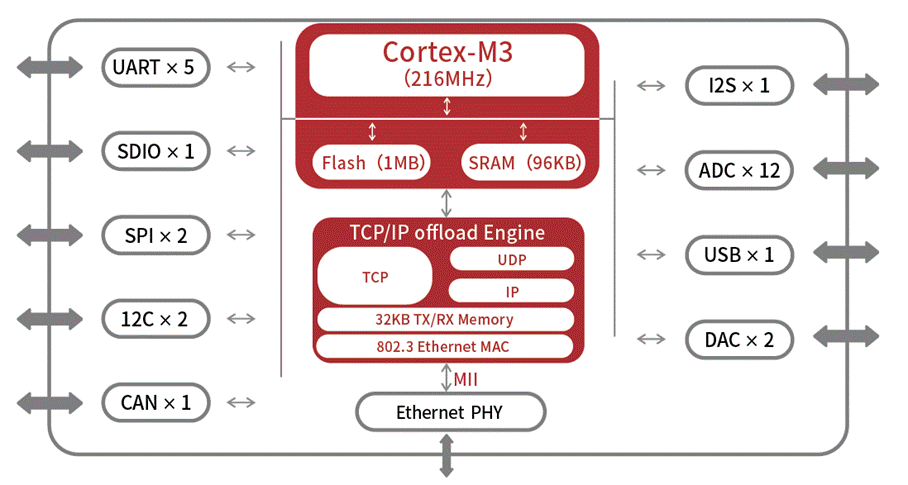

1 Chip Introduction 1.1 Introduction The W55MH32 is a high-performance Ethernet microcontroller newly launched by WIZnet. It employs a high-performance Arm® Cortex-M3 core with a maximum main frequency of 216MHz, and has 1024KB of FLASH and 96KB of SRAM built-in. Particularly notably, it is equipped with the WIZnet TCP/IP offload engine (TOE), integrates a full-hardware TCP/IP protocol stack, MAC and PHY, and is also provided with an independent 32KB Ethernet transceiver cache for use by 8 hardware sockets. It is a genuine All-in-One solution. 1.2 System Framework The W55MH32 chip supports a…
