How to Build MicroPython Ethernet Networking with WIZnet W5500 on Maker MCU Boards?

Summary

This maker-oriented architecture explains how to add wired Ethernet to a MicroPython MCU project using WIZnet W5500 as the network controller. The original CSDN Wenku answer page could not be directly fetched during verification, so project-specific WIZnet source code could not be confirmed or quoted. At architecture level, W5500 connects to the MCU over SPI and provides Ethernet MAC/PHY, hardwired TCP/IP, hardware sockets, and packet buffering, while MicroPython handles application logic, payload formatting, configuration, and diagnostics.

What the Project Does

The target project is a MicroPython-based wired Ethernet node. A maker board such as an ESP32, RP2040-class board, or other MCU platform runs the Python application, while W5500 handles the Ethernet transport path. The application can implement HTTP requests, a small HTTP server, telemetry upload, TCP command handling, UDP discovery, or a local configuration service.

The basic data flow is:

MicroPython application → socket/network driver → SPI → W5500 → RJ45 Ethernet → router, PC, gateway, or local server.

This structure is useful for maker devices that need more repeatable communication than Wi-Fi during bench testing, local debugging, field configuration, or simple automation. The MCU still owns the application protocol, but it does not need to implement ARP, IP, TCP, or UDP internally because W5500 provides a hardwired TCP/IP stack and hardware socket model.

Where WIZnet Fits

The exact WIZnet product is W5500. W5500 sits between the MicroPython MCU and the wired Ethernet connector. The MCU uses SPI, chip select, reset, and optionally interrupt control to access W5500. W5500 provides the embedded 10/100 Ethernet MAC/PHY, hardwired TCP/IP stack, 8 independent sockets, and 32 KB internal Tx/Rx buffer memory.

This role is different from a generic PHY. W5500 is a socket-oriented Ethernet controller: the MCU configures network identity, opens TCP or UDP sockets, checks socket states, and moves payload data through W5500 buffers. W5500 handles the lower transport behavior, including TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE support.

For MicroPython projects, this split matters because MicroPython is productive for rapid application logic but is not ideal for implementing a full TCP/IP stack in user code. MicroPython’s WIZNET5K documentation describes WIZnet5x00 modules as controlled through an SPI object, chip-select pin, and reset pin; it also notes that register dumping is available for debugging.

Implementation Notes

The CSDN Wenku page did not expose verified source files or a public repository, so no project-specific code is included.

A practical MicroPython + W5500 design can be organized into four layers.

The hardware wiring layer connects the MCU to W5500 through SPI. The minimum signals are MOSI, MISO, SCLK, chip select, 3.3 V, and ground. Reset should be routed to an MCU GPIO when possible, because firmware-controlled reset is useful after cable faults, socket lockups, or development mistakes. Interrupt is optional for first bring-up but useful once the design needs receive, disconnect, timeout, or send-complete events.

The network interface layer initializes W5500 and exposes socket behavior to MicroPython. A typical MicroPython WIZNET5K-style flow creates the network object from an SPI object, chip-select pin, and reset pin, then uses sockets as usual after the interface is active.

The application protocol layer implements the maker project’s real behavior: HTTP response text, JSON telemetry, TCP command packets, UDP discovery messages, sensor readings, relay control, logging, or local configuration pages.

The diagnostic layer should record link state, IP address, socket state, reconnect count, last remote endpoint, bytes sent, bytes received, and last error. This is important because Ethernet failures often appear as application bugs unless link, socket, and SPI state are visible.

Practical Tips / Pitfalls

• Start with SPI and chip detection before testing HTTP, MQTT, or telemetry.
• Use stable 3.3 V power and common ground; W5500 is not tolerant of weak module power during Ethernet link activity.
• Keep SPI wiring short, especially SCLK and chip select.
• Route reset to the MCU when the design needs field recovery.
• Treat W5500’s 8 sockets as a limited resource; reserve sockets for telemetry, configuration, discovery, and diagnostics deliberately.
• Keep early payloads small. Test a short UDP packet or simple HTTP response before adding JSON, file I/O, or retries.
• Log socket state and link state, not only application success or failure.

FAQ

Q: Why use WIZnet W5500 for a MicroPython maker Ethernet project?
A: W5500 gives the MCU wired Ethernet with a hardwired TCP/IP stack, 8 sockets, and 32 KB internal Tx/Rx memory. That lets MicroPython code work at the socket and payload level instead of implementing the lower TCP/IP stack in Python.

Q: How does W5500 connect to the platform?
A: W5500 connects through SPI using MOSI, MISO, SCLK, chip select, reset, power, and ground. MicroPython’s WIZNET5K model creates the driver from an SPI object, chip-select pin, and reset pin.

Q: What role does W5500 play in this project?
A: W5500 is the wired Ethernet transport engine. The MCU builds application messages and calls socket-level functions; W5500 handles Ethernet MAC/PHY operation, hardwired TCP/IP behavior, socket state transitions, and packet buffering.

Q: Can beginners follow this project?
A: Yes, with staged bring-up. The recommended order is power and wiring check, SPI initialization, W5500 reset, IP configuration, one UDP test, one TCP test, then the final application protocol.

Q: How does W5500 compare with ENC28J60?
A: ENC28J60 is a 10BASE-T standalone Ethernet controller with onboard MAC/PHY, 8 KB buffer RAM, and an SPI interface. It gives the host MCU a lower-level Ethernet interface, so the MCU normally carries more network-stack responsibility. W5500 provides a higher-level hardwired TCP/IP model with 8 sockets and 32 KB buffer memory, which is usually simpler for MicroPython maker projects focused on TCP/UDP communication.

Source

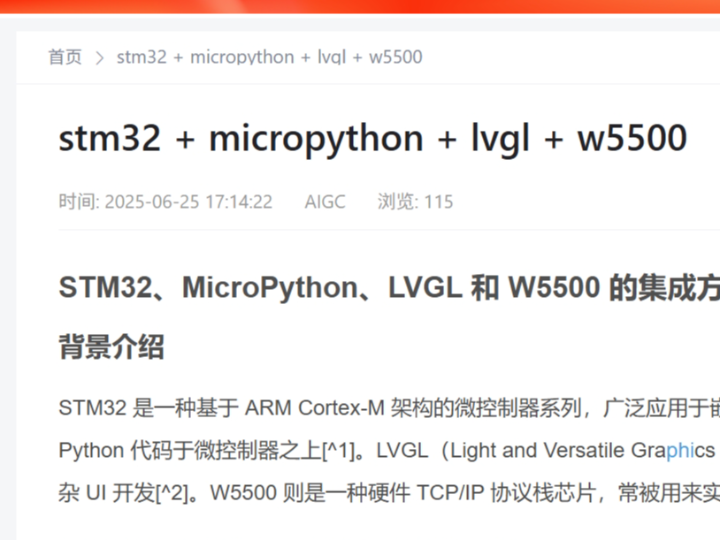

Original source link: CSDN Wenku answer page provided by the user. The page could not be directly fetched during verification, so its license and project-specific implementation details could not be confirmed.

WIZnet product reference: W5500 documentation and feature list, including hardwired TCP/IP, SPI, 8 sockets, and 32 KB internal Tx/Rx memory.

MicroPython reference: WIZNET5K class documentation for WIZnet5x00 Ethernet modules.

Alternative comparison reference: Microchip ENC28J60 product information.

Tags

#W5500 #WIZnet #MicroPython #Maker #Ethernet #SPI #HardwareWiring #Registers #Firmware #Performance #Socket #TCPIP #ENC28J60 #EmbeddedNetworking
