How to Build Commercial MicroPython Ethernet with WIZnet W5500 and LwIP-Aware Architecture?

Summary

This commercial architecture explains how a MicroPython-based Ethernet product can use WIZnet W5500 as the wired network controller while making an explicit design decision between W5500’s hardwired TCP/IP path and an LwIP-style software-stack path. The provided CSDN Wenku answer page could not be directly fetched during verification, so project-specific source code cannot be quoted. At the verified architecture level, W5500 provides SPI-connected Ethernet, an embedded 10/100 MAC/PHY, hardwired TCP/IP protocols, 8 hardware sockets, and 32 KB internal Tx/Rx buffering, while MicroPython handles product logic, configuration, diagnostics, and application payloads.

What the Project Does

The project direction is a commercial MicroPython wired-Ethernet platform using W5500. The target device can be a service terminal, data logger, gateway, diagnostic adapter, small controller, factory setup tool, or embedded product prototype that needs repeatable wired TCP/IP communication instead of relying only on Wi-Fi.

The practical data path is:

MicroPython application → network/socket interface → SPI driver → W5500 → RJ45 Ethernet → PC, router, server, PLC-side gateway, or cloud bridge.

A W5500-based design normally keeps TCP/IP transport inside the Ethernet controller. The MCU or RP2040-class runtime creates payloads, opens sockets, sends and receives data, logs status, and handles reconnect policy. W5500 handles Ethernet MAC/PHY operation, ARP, IP, TCP/UDP behavior, socket state, and packet buffering. WIZnet documents W5500 as a hardwired TCP/IP controller with SPI access up to 80 MHz, embedded 10/100 Ethernet MAC/PHY, 8 independent sockets, and 32 KB internal memory.

The LwIP comparison matters because some MicroPython and embedded developers want W5500 to behave like a lower-level Ethernet interface under a software TCP/IP stack. That gives deeper protocol control, but it also moves memory pools, packet queues, timers, retransmission behavior, and interface integration into firmware. The MicroPython ESP32 discussion around W5500 and LwIP shows that integrating WIZnet with LwIP on ESP32 is not a simple switch; a MicroPython maintainer stated that, on ESP32, LwIP is integrated into ESP-IDF and that using WIZnet through its own TCP/IP stack is the easier path.

Where WIZnet Fits

The exact WIZnet product is W5500. In this architecture, W5500 sits between the MicroPython-capable MCU and the wired Ethernet connector. The MCU controls W5500 through SPI, chip select, reset, and optionally interrupt. W5500 supplies the Ethernet MAC/PHY, hardwired TCP/IP stack, socket engine, and internal packet buffers.

W5500 supports hardwired TCP/IP protocols including TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE. It also supports SPI mode 0 and mode 3, 8 independent sockets, power-down mode, Wake-on-LAN over UDP, and 3.3 V operation with 5 V I/O signal tolerance.

On W5500-EVB-Pico, WIZnet documents a concrete RP2040 integration: GPIO16 is connected to W5500 MISO, GPIO17 to CSn, GPIO18 to SCLK, GPIO19 to MOSI, GPIO20 to RSTn, and GPIO21 to INTn. That pin mapping is useful for commercial prototypes because it makes the Ethernet wiring fixed and repeatable rather than dependent on jumper-wire bring-up.

For MicroPython, the supported interface model is also clear. MicroPython’s WIZNET5K documentation describes WIZnet5x00 Ethernet adaptors as controlled with an SPI object, chip-select pin, and reset pin; after initialization, sockets are used as usual. The same documentation notes that the ESP32 port supports W5500 through the network.LAN interface.

Implementation Notes

The exact CSDN Wenku answer page did not expose verified project files or a public repository. Therefore, no project-specific code is quoted here. The implementation guidance below is architectural.

For a commercial MicroPython product, the first design choice is hardwired W5500 mode versus LwIP-driven mode.

In the hardwired W5500 mode, the firmware uses W5500 as a socket-oriented Ethernet controller. The board support layer initializes SPI, chip select, reset, and interrupt. The network layer configures MAC address, IP mode, DHCP or static IP, gateway, subnet, and DNS. The transport layer allocates W5500 sockets for product functions such as configuration, telemetry, diagnostics, discovery, and maintenance. This is usually the simpler commercial path because W5500 already provides the TCP/IP transport.

In an LwIP-driven mode, the firmware treats the Ethernet controller as a lower-level network interface and asks LwIP to own the TCP/IP stack. LwIP is designed to reduce RAM usage while still providing a full TCP/IP implementation for embedded systems. That gives more control over protocol behavior, but it requires careful integration of packet buffers, network-interface callbacks, timers, and threading or event scheduling.

The commercial risk is validation cost. Hardwired W5500 mode has bounded socket behavior and fewer stack-integration surfaces. LwIP mode can be more flexible, but the product team must validate memory pressure, packet ownership, concurrency, reconnect behavior, DHCP behavior, DNS behavior, and interaction with MicroPython runtime scheduling.

WIZnet’s MicroPython ecosystem also shows active work around LwIP-related optimization. A WIZnet Maker article describes a MicroPython WIZnet LwIP zero-copy optimization effort intended to reduce memory usage by removing a 1.5 KB static buffer and implementing a zero-copy mechanism, with W5500 and W5100 series mentioned as primary targets. That is relevant for commercial planning, but it should be treated as ecosystem direction rather than proof that a specific Wenku project implemented this optimization.

Practical Tips / Pitfalls

• Use hardwired W5500 socket mode first unless the product has a clear need for LwIP-level control.
• Route reset and interrupt. Reset enables Ethernet recovery; interrupt enables receive, disconnect, timeout, and send-complete handling without constant polling.
• Treat W5500’s 8 sockets as product resources. Reserve sockets for configuration, telemetry, discovery, service access, and diagnostics early.
• Benchmark the full MicroPython path, not only Ethernet throughput. JSON parsing, logging, filesystem writes, and Python object allocation can dominate response time.
• Keep payloads compact during validation. Test command frames, telemetry, and diagnostics before adding bulk transfer.
• Log link state, IP address, socket state, reconnect count, DNS result, last peer endpoint, and last error.
• Do not assume LwIP integration is portable across MicroPython ports. ESP32, RP2040, and custom firmware builds can expose different network paths.

FAQ

Q: Why use WIZnet W5500 for a commercial MicroPython Ethernet product?
A: W5500 gives the product a wired Ethernet interface with hardwired TCP/IP, 8 sockets, and 32 KB internal Tx/Rx memory. That lets MicroPython operate at the socket and payload level instead of implementing the TCP/IP stack in Python.

Q: How does W5500 connect to the platform?
A: W5500 connects through SPI using MOSI, MISO, SCLK, chip select, reset, power, and ground. MicroPython’s WIZNET5K interface uses an SPI object, chip-select pin, and reset pin for WIZnet5x00 modules; W5500-EVB-Pico fixes the RP2040-to-W5500 wiring internally on GPIO16 through GPIO21.

Q: What role does W5500 play in this project?
A: W5500 is the wired Ethernet transport engine. The MicroPython application creates product messages and handles configuration or diagnostics, while W5500 handles Ethernet MAC/PHY operation, TCP/UDP behavior, socket state transitions, and packet buffering.

Q: Can beginners follow this architecture?
A: Yes, if they start with hardwired W5500 mode. The practical sequence is SPI wiring check, reset check, interface initialization, IP configuration, one UDP test, one TCP test, then product-level protocol design. LwIP integration should be treated as an advanced firmware task.

Q: How does W5500 compare with LwIP on the MCU?
A: W5500 hardwired mode moves TCP/IP transport into the Ethernet controller and exposes socket-oriented behavior to the MCU. LwIP is a software TCP/IP stack designed for resource-constrained embedded systems, so it gives deeper stack control but requires the MCU firmware to manage more memory, timers, packet flow, and network-interface integration. For bounded commercial MicroPython products, W5500 hardwired mode is usually simpler; LwIP is better when the product needs custom stack behavior or deeper protocol visibility.

Source

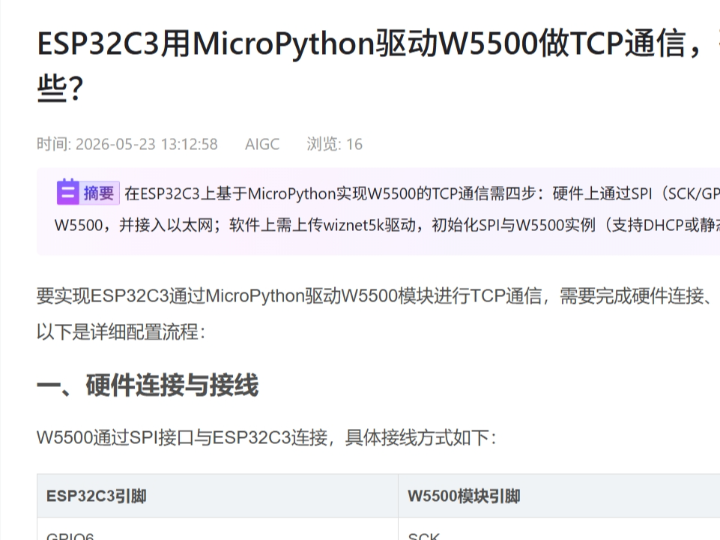

Original source link: CSDN Wenku answer page provided by the user. The exact page could not be directly fetched during verification, so its license and project-specific implementation details could not be confirmed.

WIZnet product reference: W5500 documentation and feature list.

WIZnet board reference: W5500-EVB-Pico documentation and RP2040-to-W5500 pin mapping.

MicroPython reference: WIZNET5K class documentation for WIZnet5x00 Ethernet modules.

LwIP reference: Savannah project summary for the lightweight TCP/IP stack.

MicroPython/WIZnet discussion reference: ESP32 W5500 and LwIP integration discussion.
