Chapter 6: W55MH32 GPIO Input - Key Press Detection
Chapter 6: W55MH32 GPIO Input - Key Press Detection
0
Project description

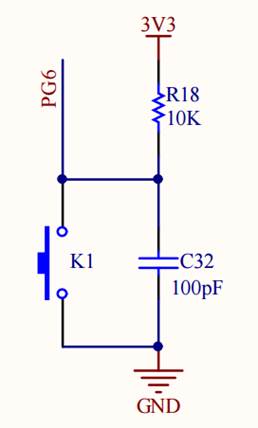

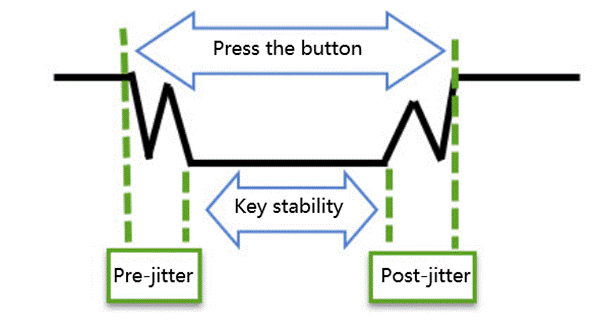

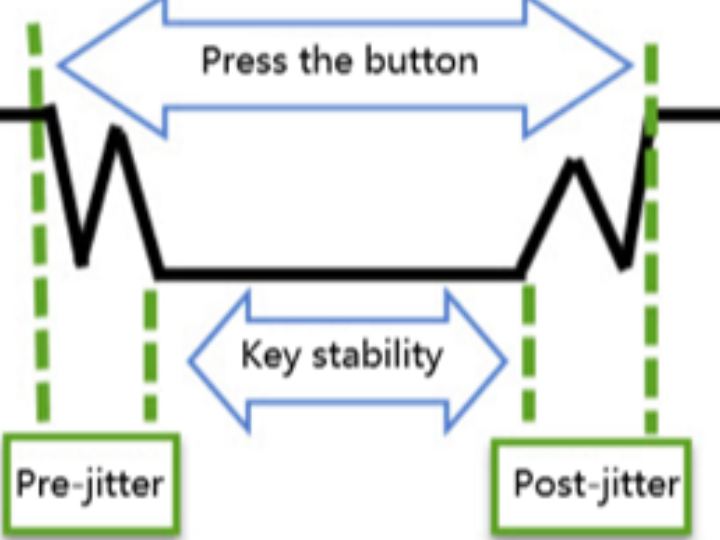

Chapter 6: GPIO Input - Key Press Detection Reference materials for this chapter: "W55MH32 Chinese Reference Manual". The key detection in this chapter utilizes the basic input function of the GPIO peripheral. 1 Hardware Design When the mechanical contacts of the button are disconnected or closed, due to the elastic effect of the contacts, the button switch will not immediately stabilize in either the connected or disconnected state. When using the button, there will be button jitter, indicating the presence of the ripple signal in the figure. This requires software anti-jitter processing…
