Chapter 19: W55MH32’s ADC - Voltage Acquisition

Chapter 19: W55MH32’s ADC - Voltage Acquisition

ronpang

Published June 09, 2025 · © Apache License 2.0 (Apache-2.0)

Original author: WIZnet HK · China

Chapter 19: W55MH32’s ADC - Voltage Acquisition

Project description

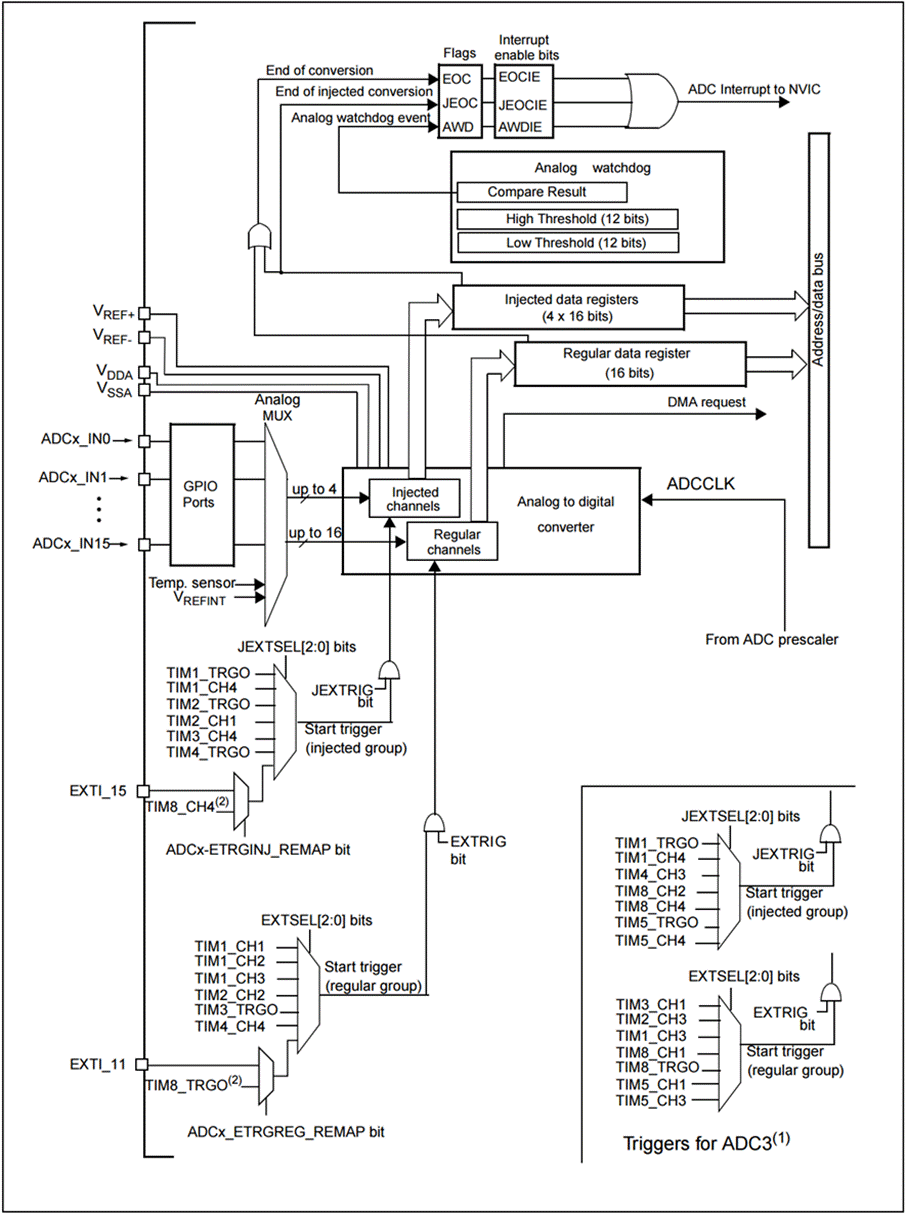

Chapter 19: W55MH32’s ADC - Voltage Acquisition References for this chapter: "W55MH32 Reference Manual" - ADC section. When studying this chapter, it will be more effective to read it in conjunction with the ADC section of the "W55MH32 Reference Manual", especially for the part related to register explanations. 1 Introduction to ADC The 12-bit ADC is a successive approximation type analog-to-digital converter. It has up to 18 channels and can measure 16 external and 2 internal signal sources. The A/D conversion of each channel can be performed in single-shot, continuous, scanning or…
