24. W5100S/W5500+RP2040 Raspberry Pi Pico＜PHY status mode control＞
24. W5100S/W5500+RP2040 Raspberry Pi Pico＜PHY status mode control＞
0
Components
Hardware components
WIZnet - W5500-EVB-Pico
x 1
WIZnet - W5100S-EVB-Pico
x 1
Project description

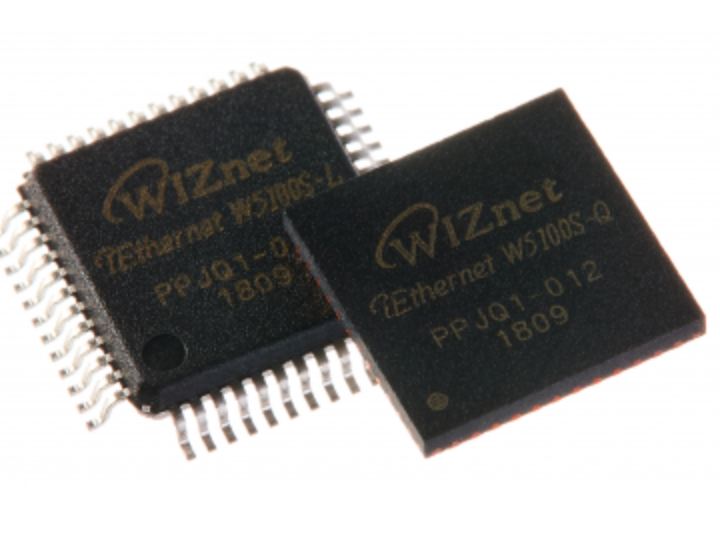

1 Introduction W5100S/W5500 not only supports automatic PHY auto-negotiation, but also supports user-defined PHY modes, including 10M/100M, half-duplex/full-duplex, power-down mode, etc. This chapter will use W5100S/W5500 + Raspberry Pi RP2040 to configure and test one by one. W5100S/W5500 is an embedded Ethernet controller integrating a full hardware TCP/IP protocol stack. It is also an industrial-grade Ethernet control chip. Using the W5100S/W5500 in Ethernet applications makes it easier for users to connect and communicate remotely between devices. 2. Related introduction 2.1 Brief…
