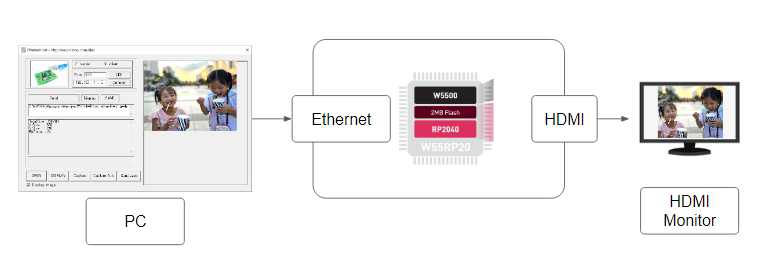

This project captures any image or screen in real-time, sends it over Ethernet, and outputs it to HDMI.
COMPONENTSHardware components
WIZnet - W55RP20
x 1
WIZnet - W55RP20-EVB-Pico
x 1
Software Apps and online services
WIZnet - WIZnet RP2040-HAT-C
x 1
PROJECT DESCRIPTION
The W55RP20 is a System in Package (SIP) that combines the W5500, a low-cost Ethernet solution chip, and the low-cost RP2040 with ARM dual-core base into one chip. It seems to be a very good chip for a small and inexpensive Ethernet solution.
As a small and inexpensive network example, we want to build an inexpensive module that can output an advertisement image sent over Ethernet to an HDMI monitor.
