TASCAM IF-E100: Turning Installed Media Players into Network-Controlled Endpoints (with WIZnet WIZ750SR inside)

Image Source: https://tascam.com/us

Introduction

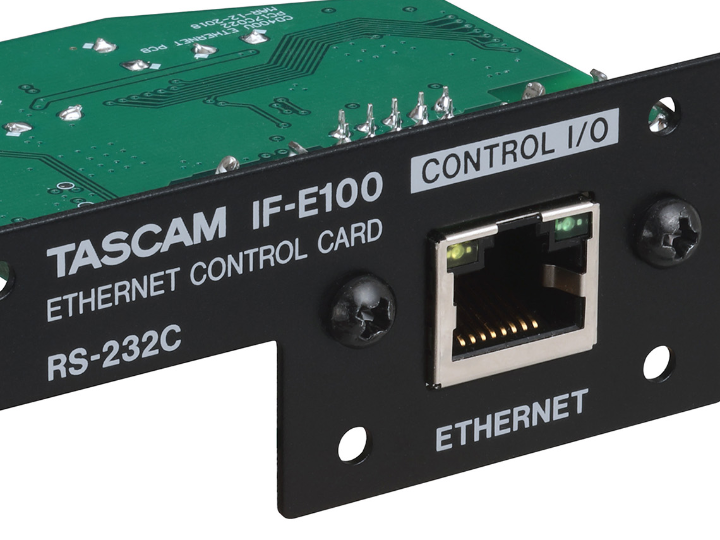

TASCAM’s IF-E100 is an Ethernet control expansion card that adds IP remote control to certain TASCAM installation media players. Once installed, the player can be controlled over a network using Telnet, which is a common “simple text command” interface used by AV/automation systems. (Tascam)

This isn’t a standalone gadget—it’s an integration accessory that lets an existing playback device behave like a network-managed endpoint in schools, hotels, retail, restaurants, and other installed environments where centralized control matters. (Tascam)

Company background: TASCAM in the installed audio ecosystem

TASCAM is TEAC’s professional audio brand, with a long history in recording and installed sound. On its official “About” page, TASCAM positions its products across a wide range of pro environments—broadcast, studios, concert halls, conference rooms, academic and commercial facilities, theaters, and internet broadcasting—where reliability and integration workflows are priorities. (Tascam)

That context matters for IF-E100: this is exactly the kind of “small option card” product used by AV integrators to standardize control methods across many deployed devices.

What IF-E100 is used for

Compatible player families

IF-E100 is sold as an Ethernet control card for TASCAM’s CD-400U and MP-800U media players (including DAB variants via the downloadable Telnet/RS-232C protocol documents listed on the product page). (Tascam)

Why customers add it

TASCAM’s 2018 announcement frames the value clearly: CD-400U already supports RS-232C control, and IF-E100 adds IP network control, making the player more suitable for IP network–based installations (schools/institutions, restaurants, hotels, retail, etc.). (Tascam)

In practice, this is a classic “upgrade path” for installed AV:

• keep the base player simple,
• add network control when the job requires centralized management, remote scripting, or integration into an existing control system.

Key specifications (what an installer actually cares about)

From TASCAM’s published specs, IF-E100 provides: (Tascam)

• Ethernet: 100BASE-TX
• Connector: RJ-45
• Control protocol: Telnet
• Port: 23
• Access control: numeric password (up to 10 digits, default “400”)
• Cabling: Cat 5e or faster
• Dimensions / weight: 75.0(W) × 31.0(H) × 54.8(D) mm; 33 g
• In the box: card + mounting screws + owner’s manual/warranty

Also notable for integrators: TASCAM publishes Telnet protocol specification documents for the supported players (listed as downloadable files on the IF-E100 page), which reduces integration guesswork. (Tascam)

How it works (architecture + data flow)

The architecture is intentionally straightforward:

1. The IF-E100 is installed into the player’s expansion slot, exposing an RJ-45 Ethernet port. (Tascam)
2. A control system connects via Telnet (port 23), authenticates using the numeric password policy, and sends control commands defined in TASCAM’s protocol documents. (Tascam)
3. Commands are translated into player actions (play/stop, configuration, etc.) using the same “remote control” concept the product line already supports via RS-232C—now reachable over IP. (Tascam)

This “Telnet command surface” design is common in installed environments because it’s easy to script, easy to test, and easy to bridge into higher-level automation platforms.

Where WIZnet fits: WIZ750SR as the OEM connectivity building block

You noted WIZ750SR usage from the PDF, and TASCAM’s own owner’s manual backs that up in its licensing section: it references CMSIS-DAP interface firmware implemented into “Wiznet / WIZ750SR” and cites Apache 2.0 licensing. (Tascam)

That’s a strong indicator that IF-E100 includes WIZnet WIZ750SR software components as part of its embedded networking/control implementation.

What the WIZ750SR family is (and why OEMs pick it)

WIZnet positions WIZ750SR as a compact serial-to-Ethernet module based on the W7500P Ethernet MCU, designed to convert serial data to TCP/IP and back. It supports TTL/RS-232/RS-422/485 variants, is compatible with older WIZ107/108SR module ecosystems, and includes configurable GPIO. (WIZnet Documentation)

Key WIZ750SR family characteristics relevant to OEM products like IF-E100:

• Fast “serial device → Ethernet device” conversion without building a full custom network stack from scratch. (WIZnet Documentation)
• Multiple electrical interface options (TTL / RS-232 / RS-422/485), allowing the same core design to be reused across product lines with different internal control buses. (WIZnet Documentation)
• Installer-friendly networking behavior (10/100 Ethernet, password/config support), which aligns with deployed/managed equipment workflows. (WIZnet)

Market focus: why IF-E100 matters beyond one card

IF-E100 is a concrete example of a broader, scalable pattern: turning “locally controlled” equipment into a network-controlled node with minimal redesign.

1) Installed AV is full of “serial control” legacy—and IP control is the upgrade path

Many AV endpoints historically offered RS-232 control for reliability and simplicity. TASCAM explicitly says CD-400U ships with RS-232C remote control and IF-E100 makes it a better fit for IP network installations. (Tascam)
That maps directly to integrator realities: IP control is easier to route across buildings, VLANs, and centralized control rooms than point-to-point serial wiring.

2) The accessory-card approach scales across a product line

Rather than redesigning every player variant with networking, an option card lets TASCAM:

• keep base models cost-optimized,
• sell network control only when needed,
• and support a consistent control interface across venues.

That same strategy is attractive across many device categories (not just media players): signage controllers, paging systems, mixers, lighting controllers—anything with a stable internal command interface can be “network-enabled” as an add-on.

3) WIZ750SR’s role in market expansion

WIZ750SR-class modules help OEMs ship these add-ons faster because they package a proven “serial ↔ Ethernet” bridge into a compact module family with multiple interface variants. (WIZnet Documentation)
IF-E100 shows this approach landing in Pro AV / installation products, expanding the typical mental model of serial-to-Ethernet modules beyond industrial automation into a market where integration, repeatable deployment, and remote ops drive purchasing.

Reason: (mass-production potential) repeatable “network control option” pattern across installed endpoints; (vertical expansion) Pro AV/integration channels in schools, hotels, retail, restaurants. (Tascam)

Quick notes for real deployments

• Telnet is plaintext. In modern installs, it should be kept on a controlled LAN/VLAN and not exposed directly to the public internet. (The product’s published interface is Telnet on port 23.) (Tascam)
• Model/firmware compatibility matters. TASCAM explicitly points users to verify compatible models and firmware before installation. (Tascam)

What is the TASCAM IF-E100? The TASCAM IF-E100 is an Ethernet control expansion card designed for professional AV installations. When installed into a compatible TASCAM media player, it transforms a standalone playback device into a network-managed endpoint. This allows for centralized remote control in environments like schools, hotels, restaurants, and retail spaces.

Which media players are compatible with the IF-E100? The IF-E100 expansion card is specifically designed for use with TASCAM’s CD-400U and MP-800U media players, including their respective DAB (Digital Audio Broadcasting) variants.

How does the IF-E100 control the media player over a network? The card connects to an IP network via a standard RJ-45 Ethernet port (100BASE-TX) and utilizes the Telnet protocol (Port 23). AV automation systems can connect to the player and send simple text commands to trigger play/stop actions, change configurations, and monitor the device remotely.

What is the internal technology powering the IF-E100's network connection? The IF-E100 utilizes the WIZnet WIZ750SR, a compact serial-to-Ethernet module. This embedded module acts as a bridge, instantly converting the media player's internal serial control signals into TCP/IP data. By using this OEM building block, TASCAM successfully adds reliable IP connectivity without needing to engineer a custom network stack from scratch.

Why upgrade to IP control instead of standard RS-232? While compatible players like the CD-400U already support RS-232C serial control, standard serial wiring is difficult to route over long distances. Adding the IF-E100 allows integrators to route control signals across standard IT infrastructure, existing building networks, and VLANs, making centralized management much easier.

Are there security considerations when deploying the IF-E100? Yes. The IF-E100 uses a numeric password (up to 10 digits, with a default of "400") for access control. However, because it relies on Telnet, commands are sent in plaintext. For this reason, the device should only be deployed on a controlled, secure LAN or VLAN, and should never be exposed directly to the public internet.
