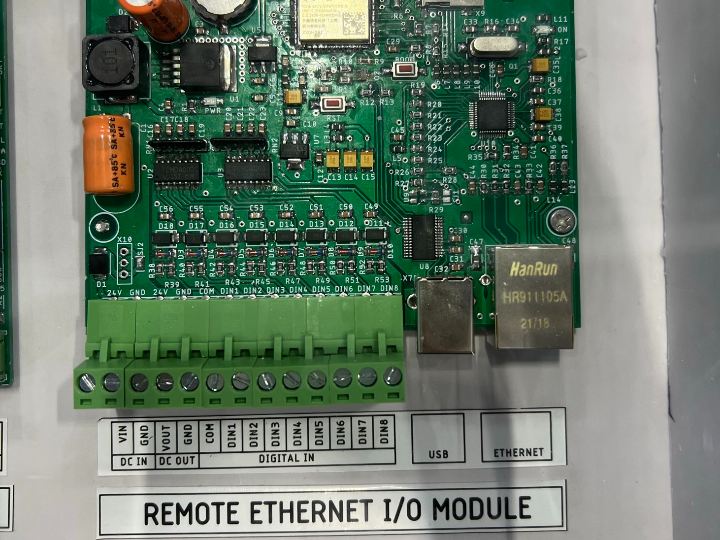

Programmable IoT Edge ESP32 Ethernet IO Module

Programmable ESP32 Ethernet IO Modules can be used to build the custom solution for secure monitoring and controlling the IO. Field data col


Features :

Open-source Hardware ESP32 Dual-core  32-bit  up to 240 MHz, Flash 16 MB.

Support most of the open-source platforms for Custom Programming

The device offers multiple industrial protocols like TCP/IP, ProfiNet, MODBUS TCP, JSON, MQTT, and FTP and supports secure communication SSL.

Industrial Grade Design - Isolated  & Protected IO &  EMC / EMI compliance.

Support most of the cloud platforms including Microsoft Azure & AWS etc

OTA Firmware upgrade supported

Support communication over USB, WiFi, Bluetooth, and Ethernet 10/100 Mbps

Isolated & protected 8x  24 V Digital Input,

On board SD card  & RTC

Supported DC 9-24V Power Supply.

Application :

Remote  Monitoring

Production and process monitoring.

Utilities & Energy monitoring.

Andon System

Hotel Room Automation

Smart feedback collecting system

Alarm & Automated Task application

Condition monitoring.

Environment monitoring.

Industrial Smart grid

Edge Ethernet to WiFi gateway application

Beacon Ethernet / WiFi Gateway

Standard PLC & SCADA Applications
