A Next-Generation Motion Simulator Controller with a WIZnet W5500-Based Secondary Ethernet Interface

Overview

Motion4Sim Controller Next Gen is a next-generation motion controller designed for racing simulators, flight simulators, motion platforms, belt tensioners, and advanced DIY motion systems.

Rather than being a simple servo control board, this product can be understood as a motion control platform that converts simulation data from a PC into real actuator movement. Motion4Sim states that the controller is compatible with major motion software solutions such as SimTools, FlyPT Mover, Motion4Sim Dashboard, SimHub, and DRSM.

The product is available in Basic, Pro, and Pro+ versions. The Basic version focuses on USB-based Step/Dir control, the Pro version adds Ethernet/LAN support and extended I/O, and the Pro+ version supports EtherCAT and a dual Ethernet configuration.

From a WIZnet perspective, the most important point is the Pro+ configuration. In this setup, the controller can use an EtherCAT-based drive network together with a WIZnet W5500 / WIZ850io-based secondary LAN interface.

About Motion4Sim

Motion4Sim LLC is a motion simulation company located in Casper, Wyoming, USA. The company focuses on DIY and prosumer motion systems, including motion controllers, actuator control, motion cueing software integration, safety functions, servo brake support, seatbelt pretensioner support, and PC connectivity.

Motion4Sim is not simply a board vendor. It is better understood as a company that provides a complete motion simulation ecosystem, combining hardware, firmware, software tools, documentation, and community support.

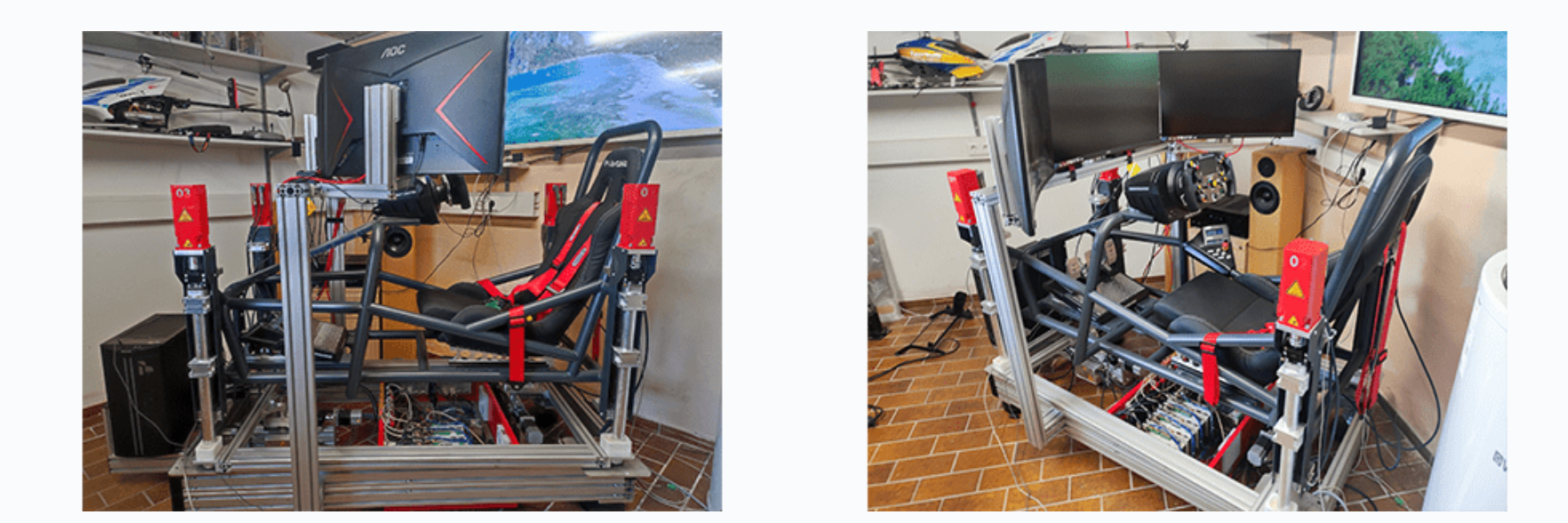

Its products are especially relevant for users who build racing simulators, flight simulators, 2DOF / 3DOF / 4DOF / 6DOF motion rigs, belt tensioner systems, and custom DIY motion platforms.

External Activity and Ecosystem

Motion4Sim has a broader ecosystem beyond its product pages. This is important because motion simulator controllers often require setup guidance, firmware updates, software integration, and community support.

GitHub

https://github.com/motion4sim/AASD15A-Servo-Controller-for-Motion-Simrigs

Motion4Sim operates a public GitHub repository for its AASD15A Servo Controller for Motion Sim Rigs. The repository includes resources such as Dashboard files, Dashboard presets, SimHub files, SimTools v3 files, firmware, FlyPT Mover 6DOF resources, motion rig materials, PCB files, and user guides.

This shows that Motion4Sim is not only selling hardware, but also maintaining a development-oriented ecosystem around firmware, software integration, and user support.

GitBook Documentation

https://docs.motion4sim.com/

Motion4Sim also provides official documentation through GitBook. The documentation covers topics such as the Quickstart Guide, Features, Board Overview, Wiring, Servo Driver Settings, Firmware Updates, Direct Motion Mode, Position Motion Mode, Network, SimTools, FlyPT Mover, DR Sim Manager, and SimHub.

The Network documentation is especially relevant to WIZnet. It explains that Ethernet support is available from PCB version 2.03, using Cat 5e or better cables, 100 Mbps full duplex communication, DHCP, UDP, and multicast connections for dashboard and motion data.

The documentation also notes that Wi-Fi latency is not ideal for motion data because the system requires a stable transmission interval of around 2 milliseconds. This makes wired LAN particularly important for this type of application.

Discord, Instagram, YouTube, and Telegram

Motion4Sim also appears to maintain user-facing channels such as Discord, Instagram, YouTube, GitHub, and Telegram. The official website highlights Discord community and developer support as part of the product ecosystem.

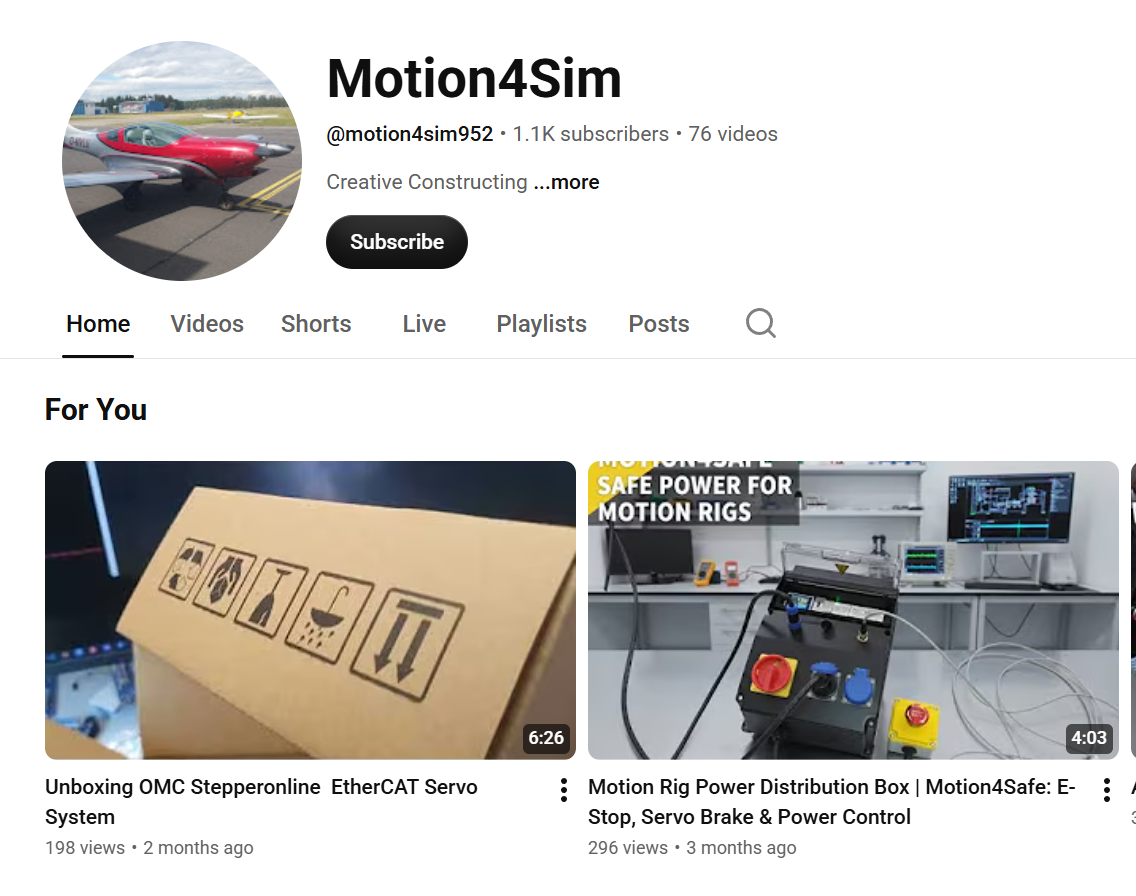

YouTube videos related to Motion4Sim show setup guides and examples such as EtherCAT setup, SimHub setup, and 6DOF motion rig demonstrations. Instagram also includes user examples of DIY motion rigs built around Motion4Sim systems.

These activities suggest that Motion4Sim is building an active user ecosystem rather than simply offering a one-time hardware product.

What is Motion4Sim Controller Next Gen?

Motion4Sim Controller Next Gen receives motion data generated by simulation games or motion software and uses that data to control real actuators in a motion platform.

For example, in a racing simulator, acceleration, braking, cornering, and road impact can be translated into seat movement. In a flight simulator, pitch, roll, yaw, climb, and descent can be physically represented through a motion platform.

In this sense, the product acts as a bridge between virtual simulation data and real-world physical movement.

According to Motion4Sim, the Controller Next Gen uses a modern STM32-based hardware and firmware architecture. Depending on the version, it supports both traditional Step/Dir servo systems and EtherCAT-based drives.

Key Features

1. Motion Controller Specialized for Simulation Platforms

Motion4Sim Controller Next Gen is designed for sim racing, flight simulation, motion platforms, belt tensioners, and advanced DIY motion systems.

This makes it different from a general-purpose industrial motion controller. It is designed for systems where the user directly feels the movement, so smooth motion, responsiveness, safety behavior, and easy configuration are all important.

2. Support for Both Step/Dir and EtherCAT

The product supports traditional Step/Dir servo control, which is common in DIY motion simulator builds. In the Pro+ version, it also supports EtherCAT-based servo drives.

This gives the product a flexible position. Users can continue using existing AASD-style Step/Dir motion rigs, or they can move toward more advanced EtherCAT-based motion systems.

3. Real-Time-Oriented Motion Processing

Motion4Sim’s documentation describes support for up to 7 servo motors, pulse speeds up to 550 kHz, Step/Dir mode, EtherCAT master functionality, USB serial communication with CRC checks, and real-time motion calculations based on a 32-bit processor.

The software side includes real-time motor status monitoring, automatic homing, service mode, manual motor control, spike filtering, inverse kinematics, support for 3DOF / 4DOF / custom rigs, and 24-bit input data processing.

4. Dashboard App and Firmware Updates

Motion4Sim provides a Dashboard App for configuration, testing, motion cueing, and firmware updates.

The official documentation explains that firmware updates are released periodically to add new features, improve performance, and fix bugs. These updates can be downloaded from GitHub and installed through the Dashboard App.

This makes the product feel less like a standalone hardware board and more like a continuously maintained motion control platform.

Network Architecture

The network architecture of Motion4Sim Controller Next Gen is the most important part from a WIZnet perspective.

Standard LAN Configuration

According to Motion4Sim documentation, the controller supports Ethernet from PCB version 2.03. It can be connected to a standard LAN using Cat 5e or better cables, supports 100 Mbps full duplex operation, DHCP, UDP, and multicast-based communication for dashboard and motion data.

The documentation also explains that Wi-Fi devices can suffer from poor latency when sending motion data. Since motion data needs to be transmitted at a stable interval of around 2 milliseconds, wired LAN is more suitable for this application.

Pro+ / EtherCAT Configuration

The Pro+ version adds EtherCAT support and a dual Ethernet configuration.

Motion4Sim explains that a secondary onboard W5500 SPI module can be used to separate EtherCAT bus traffic from PC telemetry traffic. The WIZ850io module is used for the second LAN port.

The Board Overview documentation also identifies the “Wiz850io Breakout Board with W5500 LAN” and explains that, when EtherCAT is used, this board can provide an additional LAN interface for receiving telemetry data. It is used only in EtherCAT mode.

Role and Application of WIZnet W5500

In Motion4Sim Controller Next Gen, the WIZnet W5500 functions as a secondary Ethernet interface.

In the Pro+ / EtherCAT configuration, the W5500 provides a LAN path that is separate from the main EtherCAT drive network. EtherCAT handles servo drive communication, while the W5500-based LAN interface can be used for PC telemetry, Dashboard communication, setup, and diagnostic data.

This structure is meaningful because the main controller already has many demanding tasks, including motion calculation, filtering, actuator monitoring, safety logic, and Step/Dir or EtherCAT drive control.

The W5500 is a Hardwired TCP/IP Ethernet Controller. It connects to an external MCU over SPI and supports protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE. It also provides 8 independent sockets and 32 KB of internal Tx/Rx buffer memory.

For a motion control system like Motion4Sim, this makes W5500 a practical way to add a stable TCP/IP-based LAN path without placing the entire networking burden on the main MCU.

Hybrid Network Perspective

This product should not be strongly positioned as a wireless + wired Hybrid Network example.

Based on the currently confirmed official materials, the network elements of Motion4Sim Controller Next Gen are USB, Ethernet/LAN, EtherCAT, and the W5500/WIZ850io secondary LAN interface. Wireless technologies such as Wi-Fi, Bluetooth, or 4G are not confirmed in the official product information.

Therefore, if the evaluation category “Hybrid Network” means a combination of wireless and wired connectivity, this product should not receive a high bonus score in that category.

Instead, the product’s networking strength should be described more accurately as follows:

Motion4Sim Controller Next Gen is not primarily a wireless Hybrid Network example. It is better understood as a dual wired network architecture that separates the EtherCAT motion bus from W5500-based LAN telemetry communication.

In other words, this product should be evaluated more strongly for its EtherCAT + W5500 dual Ethernet structure, TOE-based secondary LAN interface, and stable wired networking in a real-time-oriented motion control system.

Market & Application Value

Motion4Sim Controller Next Gen targets a different market from typical IoT boards or industrial gateways. Its main users include:

• Racing simulator builders
• Flight simulator builders
• DIY 2DOF, 3DOF, 4DOF, and 6DOF motion rig users
• Belt tensioner and special feedback device makers
• Step/Dir-based servo system users
• Users who want to move toward EtherCAT-based advanced motion systems

The market value of this product lies in turning virtual simulation data into real physical movement.

Because a motion platform is something the user physically experiences, communication stability, latency, safety-state handling, profile management, and firmware maintenance are all directly connected to the product experience.

Motion4Sim supports this through not only hardware, but also its Dashboard App, GitHub firmware resources, GitBook documentation, Discord community, YouTube setup videos, and Instagram user examples.

WIZnet Strategic Value

Motion4Sim Controller Next Gen is a valuable VAR example for the WIZnet Maker Site.

However, the key message should not simply be:

“The Pro version uses W5500.”

A stronger and more accurate message would be:

In the Pro+ / EtherCAT configuration of Motion4Sim Controller Next Gen, the WIZnet W5500 / WIZ850io is used as a secondary LAN interface to separate EtherCAT drive bus traffic from PC telemetry traffic.

This positioning is more technically accurate and shows WIZnet’s value more clearly.

There are three reasons why this case is meaningful.

First, it shows that W5500 is not only useful for general IoT Ethernet connectivity, but can also be used as a secondary network interface in a motion control system.

Second, in a system where an EtherCAT motion drive bus is important, W5500 provides a separate TCP/IP LAN path for PC-side communication and telemetry.

Third, it highlights the value of wired Ethernet in low-latency motion data environments where Wi-Fi may not be suitable. Motion4Sim’s own documentation explains that motion data requires a stable transmission interval of around 2 milliseconds, making LAN a better fit than Wi-Fi for this use case.

Conclusion

Motion4Sim Controller Next Gen is a next-generation motion simulator controller developed by Motion4Sim LLC, a company located in Casper, Wyoming, USA. The product is designed for racing simulators, flight simulators, motion platforms, belt tensioners, and DIY motion systems.

It provides a complete ecosystem that includes hardware, firmware, software tools, documentation, and community support.

From a WIZnet perspective, the most important part is the Pro+ / EtherCAT configuration. In this setup, the WIZnet W5500 / WIZ850io is used as a secondary LAN interface, providing a separate Ethernet path for PC telemetry and Dashboard communication while EtherCAT handles the drive network.

Therefore, this product should not be framed mainly as a wireless + wired Hybrid Network example. It is more accurately described as an EtherCAT + W5500-based dual wired network architecture.

This makes Motion4Sim Controller Next Gen a strong WIZnet VAR case because it shows how W5500 can provide a stable secondary TCP/IP network path in a real-time-oriented motion control system.

Suggested Maker Site Description

Motion4Sim Controller Next Gen is a next-generation motion controller for simulation platforms, developed by Motion4Sim LLC in Casper, Wyoming, USA. The product is designed for racing simulators, flight simulators, motion platforms, belt tensioners, and DIY motion rigs, and supports both Step/Dir servo control and EtherCAT-based drive configurations.

In the Pro+ / EtherCAT configuration, the WIZnet W5500 / WIZ850io is used as a secondary LAN interface. This allows EtherCAT drive bus traffic to be separated from PC telemetry and Dashboard communication.

This structure shows that W5500 is not merely an Ethernet port add-on. Instead, it can serve as a stable TCP/IP-based secondary network path in a motion control system where reliable wired communication is important.

FAQ

Q. What is Motion4Sim Controller Next Gen?

Motion4Sim Controller Next Gen is a motion controller for racing simulators, flight simulators, motion platforms, belt tensioners, and advanced DIY motion systems. It converts simulation data from a PC into real actuator movement.

Q. What kind of company is Motion4Sim?

Motion4Sim LLC is a motion simulation company located in Casper, Wyoming, USA. It develops motion controller hardware, firmware, software tools, documentation, and community resources for DIY and prosumer motion simulator builders.

Q. What does WIZnet W5500 do in this product?

In the Pro+ / EtherCAT configuration, the WIZnet W5500 / WIZ850io is used as a secondary LAN interface. It can separate PC telemetry and Dashboard communication from the EtherCAT drive network.

Q. Why is the secondary Ethernet interface important?

Motion simulators require stable and low-latency communication. By separating EtherCAT drive traffic from PC-side telemetry traffic, the system can maintain a cleaner and more reliable network structure.

Q. Is this a Hybrid Network example?

Not in the wireless + wired sense. The currently confirmed official materials show USB, Ethernet/LAN, EtherCAT, and W5500/WIZ850io secondary LAN connectivity, but not Wi-Fi, Bluetooth, or 4G. Therefore, this product is better described as a dual wired network architecture rather than a wireless Hybrid Network example.

Q. Why is this a good WIZnet Maker Site case?

It shows W5500 being used in a real-time-oriented motion control system as a secondary TCP/IP Ethernet interface. This expands the WIZnet story beyond generic IoT connectivity and into simulator motion control, EtherCAT-adjacent systems, and stable wired telemetry communication.
