How to Build MicroPython Ethernet Nodes with WIZnet W5500 on Maker MCU Boards?

Summary

This maker project architecture uses WIZnet W5500 to add wired Ethernet to MicroPython MCU boards such as ESP32-class platforms. The original CSDN Wenku answer page could not be directly fetched during verification, so no project-specific code from that exact page is quoted. Verified related sources show the practical pattern: the MCU runs MicroPython application logic, W5500 connects over SPI, and W5500 provides the Ethernet MAC/PHY, hardwired TCP/IP stack, socket engine, and internal packet buffering needed for TCP, UDP, HTTP, telemetry, and local device configuration.

What the Project Does

The project target is a maker-grade MicroPython Ethernet node. A board such as an ESP32 runs the Python application, handles sensor or actuator logic, formats messages, and calls socket-style APIs. W5500 handles the wired Ethernet side: link state, MAC/PHY operation, TCP/UDP socket behavior, and packet buffering.

The typical data path is:

MicroPython application → W5500 driver/socket layer → SPI → W5500 → RJ45 Ethernet → router, PC, local server, gateway, or test laptop.

A verified public ESP32-W5500 MicroPython repository demonstrates this pattern by connecting an ESP32 to a W5500 module and using Python-style requests as an HTTP client. The repository lists ESP32 ESP-WROOM-32, W5500 or W5100 hardware, MicroPython firmware, ampy upload workflow, W5500 driver files, and an HTTP fetch example.

For maker projects, this architecture is useful when Wi-Fi behavior is too variable for bench testing or local installation. Wired Ethernet gives a visible link state, a repeatable physical path, and simpler local debugging. It also keeps the network transport boundary out of user-level MicroPython code.

Where WIZnet Fits

The exact WIZnet product is W5500. It sits between the MicroPython MCU and the Ethernet connector. The MCU talks to W5500 through SPI, chip select, reset, and optionally interrupt. W5500 then exposes a socket-oriented Ethernet model to firmware.

WIZnet documents W5500 as a hardwired TCP/IP Internet controller connected to an external MCU through SPI up to 80 MHz. It integrates a 10/100 Ethernet MAC and PHY, supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE, provides 8 independent sockets, and includes 32 KB internal memory for Tx/Rx buffers.

This matters on MicroPython boards because Python code should not be responsible for implementing low-level TCP/IP behavior. The application should focus on sensor readings, relay control, local web pages, command packets, configuration storage, and diagnostics. W5500 absorbs the lower network stack and gives the application bounded socket resources.

Implementation Notes

The exact Wenku page did not expose verified source files or a public repository. The snippets below are from a related public ESP32-W5500 MicroPython repository and should be treated as a verified reference pattern, not as code proven to come from the exact Wenku page. The repository is MIT licensed.

File: main.py
What it configures: W5500 driver import, SPI bus, chip-select pin, reset pin, W5500 network object, and request-layer binding.
Why it matters: this is the application boundary where MicroPython routes HTTP traffic through W5500 instead of a wireless interface.

from wiznet5k import WIZNET5K
from machine import Pin, SPI
import wiznet5k_socket as socket
import sma_esp32_w5500_requests as requests

spi = SPI(2)
cs = Pin(5, Pin.OUT)
rst = Pin(34)
nic = WIZNET5K(spi, cs, rst)

requests.set_socket(socket, nic)

The same repository prints chip version, MAC address, local IP address, DNS lookup results, and HTTP response text, confirming that W5500 is the active Ethernet path for the MicroPython application.

File: wiznet5k.py
What it configures: W5500 common registers, socket registers, socket commands, socket status values, and IP/MAC configuration access.
Why it matters: maker firmware needs register-level observability during bring-up. Chip version, PHY status, socket state, RX size, TX free size, IP address, gateway, and subnet are the first things to inspect when Ethernet appears to fail.

REG_GAR = const(0x0001)
REG_SUBR = const(0x0005)
REG_VERSIONR_W5500 = const(0x0039)
REG_SHAR = const(0x0009)
REG_SIPR = const(0x000F)
REG_PHYCFGR = const(0x002E)

REG_SNMR = const(0x0000)
REG_SNCR = const(0x0001)
REG_SNSR = const(0x0003)
REG_SNTX_FSR = const(0x0020)
REG_SNRX_RSR = const(0x0026)

The driver also initializes SPI at a conservative speed, toggles reset when a reset pin is provided, detects W5500 through the version register, supports DHCP, exposes link status through REG_PHYCFGR, and reads or writes IP configuration through W5500 registers.

Practical Tips / Pitfalls

• Validate SPI access before testing HTTP, MQTT, or a local web page.
• Use stable 3.3 V power and a common ground; Ethernet link activity can expose weak power wiring.
• Keep SCLK, MOSI, MISO, and chip-select wiring short on jumper-wire prototypes.
• Route reset to an MCU GPIO so firmware can recover W5500 without rebooting the whole board.
• Treat W5500’s 8 sockets as a limited resource; reserve sockets for telemetry, configuration, discovery, diagnostics, and future expansion.
• Log chip version, MAC address, IP address, link state, socket state, DNS result, and last error.

FAQ

Q: Why use WIZnet W5500 for a MicroPython maker node?
A: W5500 gives the board wired Ethernet with hardwired TCP/IP, 8 sockets, and 32 KB internal Tx/Rx memory. That lets MicroPython code work at the socket and payload level while W5500 handles Ethernet MAC/PHY operation, TCP/UDP behavior, socket state, and buffering.

Q: How does W5500 connect to the platform?
A: W5500 connects through SPI using SCLK, MOSI, MISO, chip select, reset, 3.3 V, and ground. The referenced ESP32 repository maps GPIO5 to CS, GPIO18 to SCK, GPIO23 to MOSI, GPIO19 to MISO, and GPIO34 to reset.

Q: What role does W5500 play in this project?
A: W5500 is the wired Ethernet transport engine. The MicroPython MCU builds application messages and calls the socket layer; W5500 manages the physical Ethernet link, hardwired TCP/IP processing, socket state transitions, and RX/TX buffers.

Q: Can beginners follow this project?
A: Yes, if they bring it up in stages. The practical order is power check, SPI wiring check, W5500 reset check, chip-version read, IP configuration, DNS or ping-style test where available, one UDP or HTTP test, and then the final maker application.

Q: What changes if the maker node uses Wi-Fi instead of W5500 Ethernet?
A: Wi-Fi removes the cable and is better for mobile or battery-powered projects. W5500 adds wiring and SPI driver work, but it gives a repeatable wired link, explicit reset control, visible PHY state, and socket behavior that is easier to debug on a bench or in a fixed installation.

Source

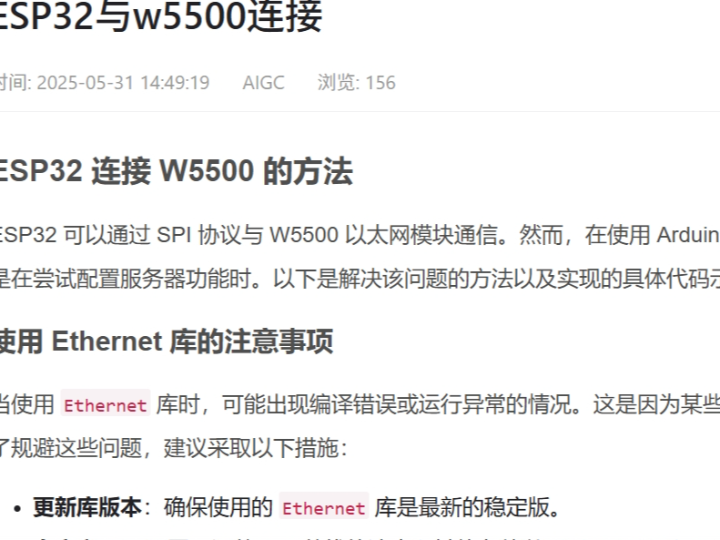

Original source: CSDN Wenku answer page provided by the user. The page could not be directly fetched during verification, so its license and project-specific implementation details could not be confirmed.

Related implementation reference: Ayyoubzadeh/ESP32-Wiznet-W5500-Micropython, an MIT-licensed ESP32 + W5500 MicroPython HTTP client example with driver files and wiring notes.

WIZnet product reference: W5500 documentation and feature list.

MicroPython reference: WIZNET5K documentation for WIZnet5x00 Ethernet modules.

Related hardware reference: CSDN ESP32 + W5500 hardware design article covering SPI pin mapping, reset, interrupt, RJ45 transformer, and layout constraints.

Tags

#W5500 #WIZnet #MicroPython #Maker #ESP32 #Ethernet #SPI #HardwareWiring #Registers #Firmware #NetworkStack #Socket #HTTPClient #EmbeddedNetworking
