How to Build a Maker Modbus TCP Server with WIZnet W5500 on STM32F4?
This article explains a firmware-oriented Maker project based on STM32F4, WIZnet W5500, TCP server operation, and standard Modbus communication.
1. Title
How to Build a Maker Modbus TCP Server with WIZnet W5500 on STM32F4?
2. Summary
This article explains a firmware-oriented Maker project based on STM32F4, WIZnet W5500, TCP server operation, and standard Modbus communication. The GitCode project is described as a resource package for bringing up STM32F4 + W5500 TCP server communication with standard Modbus, intended to help a microcontroller communicate stably with a Modbus client over Ethernet. In this architecture, the STM32F4 runs the application firmware and Modbus logic, while the W5500 provides the wired Ethernet interface, hardwired TCP/IP stack, socket engine, MAC/PHY, and packet buffering.
3. What the Project Does

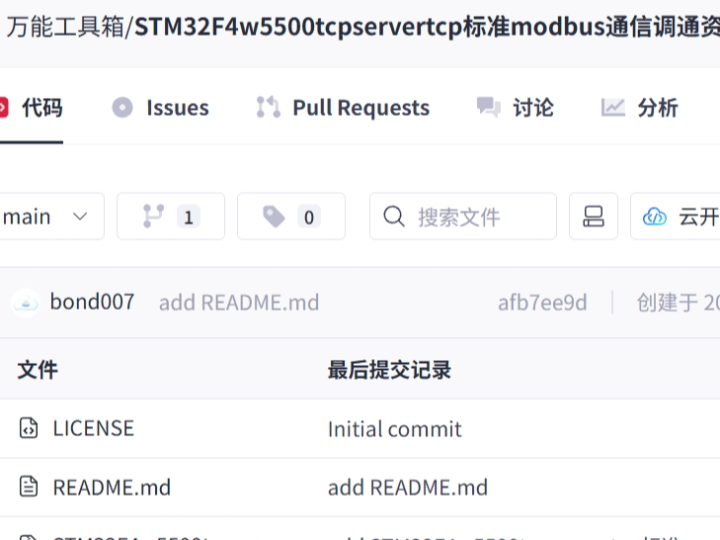

The GitCode project page identifies the project as a STM32F4 W5500 TCP server / standard Modbus communication resource package. Its description says the project helps users build network communication functions and achieve stable data transmission between a microcontroller and a Modbus client. It also states that the project is suitable for STM32 microcontrollers equipped with network modules such as W5500.
At the firmware level, the project can be understood as a wired Modbus TCP server design. The STM32F4 firmware initializes the board peripherals, configures the W5500 over SPI, opens a TCP server socket, waits for a Modbus client connection, receives Modbus requests, maps those requests to local data or device state, and returns Modbus responses. The W5500 handles the Ethernet transport layer, while the STM32F4 firmware handles application behavior.
For a Maker project, this is useful because it gives a practical bridge between embedded I/O and PC-side or HMI-side Modbus tools. A user can connect sensors, relays, GPIO, ADC channels, or simulated register values to the STM32F4, expose those values through Modbus registers or coils, and test the device from a Modbus TCP client over wired Ethernet.
The expected data flow is:
STM32F4 local I/O or test data → firmware register map → Modbus TCP response → W5500 TCP socket → Ethernet client.
In the reverse direction:
Modbus TCP request → W5500 receive buffer → STM32F4 socket read → Modbus parser → application state update.
4. Where WIZnet Fits
The WIZnet product in this architecture is W5500. WIZnet describes W5500 as a hardwired TCP/IP Internet controller that connects to an external MCU through SPI, supports high-speed SPI up to 80 MHz, integrates a 10/100 Ethernet MAC and PHY, supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE, provides eight independent sockets, and includes 32 KB internal memory for Tx/Rx buffers.
In this project, W5500 is not just a physical Ethernet adapter. It is the network offload boundary. The STM32F4 firmware does not need to implement the full TCP/IP stack in application code. Instead, it configures the W5500, opens sockets, sends and receives bytes, and focuses on Modbus request handling.
This division is especially useful for Maker firmware because the project remains understandable. The user can separate the system into three layers:
STM32F4 board firmware and peripheral logic.
W5500 Ethernet and socket transport.
Modbus TCP request/response protocol.
W5500 also provides practical constraints that the firmware must respect. The eight-socket limit means the project should define how many clients are allowed. The 32 KB internal Tx/Rx buffer memory means the firmware should avoid unbounded transfers and should keep Modbus frame handling deterministic. The W5500 product page also notes that W5500 does not support IP fragmentation, so firmware should avoid relying on fragmented IP packets for application behavior.
5. Implementation Notes
The GitCode page verifies the project topic and W5500 usage, but the visible indexed content does not expose complete source files or detailed implementation code. Therefore, this section does not claim exact file paths, function names, or code snippets from the repository. It provides a firmware-level integration outline consistent with the verified project description and official WIZnet references.
A practical STM32F4 + W5500 + Modbus TCP firmware can be divided into these modules:
Board bring-up: system clock, GPIO, SPI, chip-select pin, reset pin, UART debug output, and optional LED indicators.
W5500 driver layer: SPI read/write callbacks, W5500 reset sequence, network parameter configuration, socket open/close, send, receive, and socket status checks.
Network configuration: MAC address, static IP or DHCP policy, subnet mask, gateway, DNS if needed, and link-state diagnostics.
TCP server layer: open a listening socket, accept a Modbus TCP client, receive requests, send responses, and clean up disconnected sockets.
Modbus application layer: parse the MBAP header, check function code, map address ranges to registers/coils, validate length, and build response or exception frames.
Recovery layer: timeout handling, socket close/reopen, W5500 reset on persistent failure, and watchdog integration.
The official WIZnet ioLibrary is relevant for this kind of firmware because it is designed for WIZnet TCP/IP chips including W5500 and provides Berkeley Socket type APIs. This allows firmware to be structured around socket operations rather than raw Ethernet frame handling.
Conceptual integration example based on WIZnet ioLibrary:
/* Conceptual integration example based on WIZnet ioLibrary */
board_clock_init();
spi_init_for_w5500();
w5500_reset();
wizchip_spi_register_callbacks();
wizchip_init(tx_rx_buffer_config);
network_configure_static_ip_or_dhcp();
socket(SOCK_MODBUS, Sn_MR_TCP, 502, 0);
listen(SOCK_MODBUS);
while (1) {
if (client_connected(SOCK_MODBUS)) {
int len = recv(SOCK_MODBUS, rx_buf, sizeof(rx_buf));
if (len > 0) {
int rsp_len = modbus_handle_request(rx_buf, len, tx_buf);
if (rsp_len > 0) {
send(SOCK_MODBUS, tx_buf, rsp_len);
}
}
}
handle_socket_timeout();
handle_link_diagnostics();
feed_watchdog();
}
Modbus itself is an application-layer messaging protocol using a client/server model. The Modbus specification states that Modbus is positioned at OSI layer 7 and that Modbus can be accessed on the reserved system port 502 over TCP/IP. This makes port 502 the natural default for a Modbus TCP server, although a Maker test setup may use a different port if the test tool and firmware both agree.
6. Practical Tips / Pitfalls
Start with static IP for Maker testing. DHCP is convenient, but a static IP makes early Modbus TCP testing easier because the PC-side Modbus client always knows where to connect.
Keep the TCP server single-client first. W5500 supports eight sockets, but a Maker firmware project should first validate one Modbus TCP client, one socket, and one register map before adding multiple clients.
Separate socket state from Modbus state. A TCP disconnect should not corrupt the Modbus register map. Keep connection handling and application register storage in separate modules.
Validate Modbus frame length. Do not assume every received TCP payload is a complete and valid Modbus request. Check MBAP length, unit identifier, function code, address, and quantity before building a response.
Use UART logs during bring-up. Print W5500 detection status, IP address, socket state, client connection state, request length, and Modbus function code. These logs make Maker debugging much faster.
Add socket cleanup. If the client disconnects, the cable is removed, or the socket enters an unexpected state, close and reopen the socket deliberately instead of waiting for the whole board to be reset.
Respect buffer limits. Modbus TCP frames are usually small, but the firmware should still use fixed-size buffers and reject oversized frames cleanly.
7. FAQ
Why use WIZnet W5500 for this project?
W5500 is suitable because the project needs wired Ethernet and TCP server behavior on an STM32F4-class MCU. W5500 provides a hardwired TCP/IP stack, integrated 10/100 Ethernet MAC/PHY, eight sockets, and internal Tx/Rx buffers, so the firmware can focus on Modbus logic and device behavior.
How does W5500 connect to the platform?
W5500 connects to STM32F4 through SPI, with additional chip-select and reset control lines. The MCU firmware must initialize SPI, control W5500 reset, configure network parameters, and then use socket operations for TCP communication. WIZnet documentation identifies SPI as the host interface and describes W5500 as an external MCU-connected Ethernet controller.
What role does W5500 play in this project?
W5500 provides the Ethernet transport and TCP/IP offload layer. STM32F4 handles board firmware, Modbus parsing, register mapping, and device I/O. W5500 handles Ethernet MAC/PHY behavior, TCP socket state, and packet buffering.
Can beginners follow this project?
Yes, especially as a Maker project, because the system can be tested step by step: first SPI detection, then IP configuration, then TCP server listening, then Modbus request parsing, and finally real I/O mapping. Beginners should avoid adding multiple sockets, DHCP fallback, and advanced diagnostics until the single-client path is stable.
What should be tested first?
Test W5500 detection first, then link status, then IP address, then TCP connection from a PC, then a simple echo response, then Modbus function parsing. Jumping directly into full Modbus behavior before verifying the socket path makes debugging harder.
8. Source
Original GitCode project page: the project is listed as a STM32F4 + W5500 TCP server + standard Modbus communication resource package for stable data transmission between a microcontroller and a Modbus client.
Official WIZnet W5500 documentation and product page: used for W5500 hardwired TCP/IP stack, SPI interface, 10/100 Ethernet MAC/PHY, supported protocols, eight sockets, 32 KB internal Tx/Rx buffer memory, and W5500 constraints.
Official WIZnet ioLibrary Driver repository: used as the firmware reference for WIZnet TCP/IP chip application design and Berkeley Socket type APIs.
Official Modbus specification sources: used for Modbus application-layer client/server behavior and the reserved TCP/IP port 502 context.
License status: the indexed GitCode content did not expose a clear license for the specific project page during verification, so the license is not claimed here.
Editorial workflow and source-handling rules followed the uploaded WIZnet UCC Curator Handover Notes.
9. Tags
WIZnet, W5500, STM32F4, Modbus TCP, TCP Server, Firmware, SPI, Ethernet, Maker, Embedded Systems, ioLibrary, Socket Programming
