How Does W5500 Handle TCP Data Transmission Internally?

Understanding TX/RX Buffer Flow, SEND/RECV Commands, and Data Integrity

(W5500에서 TCP 데이터 송수신은 내부적으로 어떻게 처리되는가?)

Summary (40–60 words)

This article explains how the WIZnet W5500 manages TCP data transmission at the buffer and register level. By analyzing TX/RX buffer behavior, pointer updates, and SEND/RECV command sequences, developers can understand how reliable Ethernet communication is achieved and how to debug common data transmission failures.

1. Why TCP Data Transmission Is the Real Challenge

After a system reaches:

• ESTABLISHED TCP state
• successful network connection

many developers assume communication will “just work.”

However, real issues appear at the data transmission stage:

• “Connected but no data received”
• “SEND returns OK but server gets nothing”
• “Data arrives once, then stops”

These problems are not TCP protocol issues—they are buffer and register handling problems inside W5500.

2. W5500 Data Path Architecture

The W5500 separates communication into:

MCU ↔ SPI ↔ W5500 Buffers ↔ TCP/IP Engine ↔ Network

Key Components

• TX Buffer → outgoing data
• RX Buffer → incoming data
• Pointer Registers → track buffer positions
• Command Registers → trigger actions

👉 Key insight:

Data does not go directly to the network—it must pass through W5500 internal buffers.

3. TX (Transmit) Data Workflow

To send data, the MCU must follow a strict sequence.

Step-by-Step TX Flow

1. Read TX Free Size
2. Get TX Write Pointer
3. Write data into TX buffer
4. Update TX Write Pointer
5. Issue SEND command

Conceptual Flow

Application data
     │
     ▼
MCU writes to TX buffer
     │
     ▼
W5500 SEND command
     │
     ▼
TCP/IP engine transmits packet

Critical Requirement

If the TX pointer is not updated correctly, data will not be sent.

4. RX (Receive) Data Workflow

Receiving data requires active handling by the MCU.

Step-by-Step RX Flow

1. Check RX Received Size
2. Read RX Read Pointer
3. Read data from RX buffer
4. Update RX Read Pointer
5. Issue RECV command

Conceptual Flow

Network packet arrives
     │
     ▼
Stored in RX buffer
     │
     ▼
MCU reads data
     │
     ▼
RECV command clears buffer

Critical Requirement

Without RECV command, the RX buffer will not accept new data.

5. Pointer Management (Core Concept)

The W5500 uses circular buffers.

Two Important Pointers

• TX_WR (Write Pointer)
• RX_RD (Read Pointer)

Behavior

Write pointer moves forward when sending
Read pointer moves forward when receiving

Common Mistake

• Writing data without updating pointer
• Reading data but not updating pointer

👉 Result:

• Data overlap
• Lost packets
• Communication freeze

6. End-to-End Data Transmission Workflow

Combining TX and RX:

Application generates data
      │
      ▼
MCU writes TX buffer
      │
      ▼
SEND command
      │
      ▼
Network transmission
      │
      ▼
Remote response
      │
      ▼
W5500 RX buffer
      │
      ▼
MCU reads data
      │
      ▼
RECV command

7. Common Failure Scenarios

❌ Case 1 — SEND OK but No Data Sent

Cause:

• TX pointer not updated
• SEND not triggered properly

❌ Case 2 — Data Received Once Only

Cause:

• RECV command missing

❌ Case 3 — Data Corruption

Cause:

• incorrect buffer offset
• SPI misalignment

❌ Case 4 — Communication Stops After Some Time

Cause:

• buffer overflow
• pointer mismatch

👉 Key insight:

Most TCP data issues are actually buffer management bugs.

8. Debugging Strategy

Follow a strict bottom-up approach:

1. Verify SPI communication
2. Check socket state (ESTABLISHED)
3. Monitor TX free size
4. Verify pointer updates
5. Confirm SEND/RECV commands

Useful Debug Indicators

• TX free size not changing → SEND failure
• RX size not decreasing → RECV missing

9. Industrial System Considerations

In industrial IoT systems:

• continuous data streaming is common
• long uptime is required
• reliability is critical

Why W5500 Works Well

• hardware TCP/IP ensures stable transmission
• deterministic buffer behavior
• no OS-level interference

Best Practices

• Always check buffer size before writing
• Always issue RECV after reading
• Monitor socket status regularly

10. Comparison with Software Stack

Key Takeaway

TCP communication in W5500 is fundamentally a buffer-driven process.
Correct management of TX/RX buffers, pointer updates, and SEND/RECV commands is essential for reliable Ethernet communication.
Most “network issues” are actually caused by incorrect buffer handling rather than TCP protocol failures.

FAQ (WIZnet-Focused)

Q1. Why does SEND succeed but no data is transmitted?

This usually happens when the TX write pointer is not updated correctly before issuing the SEND command.

Q2. Why must RECV be issued after reading data?

RECV informs W5500 that the buffer has been consumed, allowing new packets to be stored.

Q3. How does W5500 ensure reliable TCP transmission?

It implements retransmission, acknowledgment, and packet handling in hardware, ensuring reliability.

Q4. What is the biggest mistake beginners make?

Ignoring pointer updates and buffer management, which leads to silent communication failures.

Q5. Is buffer handling different from software TCP/IP?

Yes. W5500 uses hardware-managed circular buffers, while software stacks manage memory dynamically.

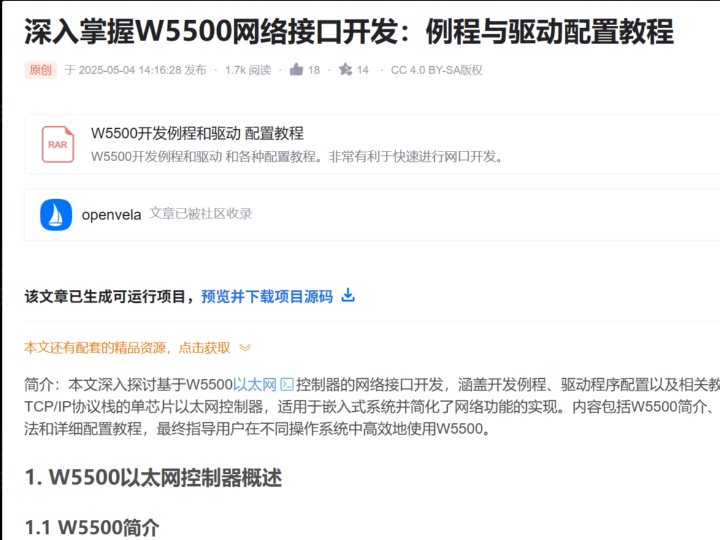

Source

CSDN Blog
weixin_31938351 — W5500 TCP Data Transmission Article

Tags

W5500
TCP Data Transmission
Buffer Management
Embedded Ethernet
SPI Communication

🇰🇷 한국어 번역 (1:1)

W5500에서 TCP 데이터 송수신은 내부적으로 어떻게 처리되는가?

요약

본 문서는 WIZnet W5500 이더넷 컨트롤러에서 TCP 데이터 송수신이 내부 버퍼와 레지스터를 통해 어떻게 처리되는지를 설명한다. TX/RX 버퍼 동작, 포인터 업데이트, SEND/RECV 명령 흐름을 분석하여 안정적인 Ethernet 통신 구현 방법을 제시한다.

핵심 흐름

TX → SEND → Network → RX → RECV

핵심 메시지

W5500의 TCP 통신은 버퍼 기반 구조이며, 포인터 관리와 명령 처리 정확성이 안정성의 핵심이다.
