How Does a W5500-Based System Perform End-to-End Ethernet Communication in Industrial IoT?

From Network Initialization to Application Data Exchange Workflow

(W5500 기반 시스템은 산업용 IoT에서 전체 이더넷 통신을 어떻게 수행하는가?)

Summary (40–60 words)

This article explains the complete end-to-end communication workflow of a W5500-based embedded system in industrial IoT environments. Covering network initialization, DNS resolution, TCP socket lifecycle, and application data exchange, it demonstrates how hardware TCP/IP offloading enables reliable and deterministic Ethernet communication for industrial applications.

1. Why End-to-End Workflow Matters in Industrial IoT

In real industrial systems, communication is not a single step—it is a layered pipeline.

Typical failures such as:

• “Device cannot connect to server”
• “TCP established but no response”
• “MQTT/HTTP fails intermittently”

are often caused by breakdowns in different layers.

To build a reliable system, developers must understand the full workflow:

SPI → Network Bring-Up → DNS → TCP → Application Protocol

Each layer depends on the previous one.

2. System Architecture with W5500

A typical industrial IoT system using W5500:

Industrial MCU (STM32 / ESP / RP2040)
        │
        │ SPI
        ▼
W5500 Ethernet Controller
        │
        ▼
Industrial Ethernet Network
        │
        ▼
Server / Cloud Platform

Responsibility Split

👉 Key insight:

W5500 offloads networking so the MCU focuses on control logic.

3. Step 1 — Network Bring-Up

Before any communication:

SPI init
 → W5500 reset
 → Configure MAC/IP
 → Link check

Two methods:

• Static IP → industrial stability
• DHCP → flexible deployment

Output of this step

• Device reachable via network
• Ping test successful

4. Step 2 — DNS Resolution (Optional)

If using domain names:

Domain → DNS query → IP address

DNS uses:

• UDP (port 53)
• MCU-managed logic
• W5500 transport

Example

mqtt.example.com → 192.168.1.10

5. Step 3 — TCP Socket Lifecycle

Once IP is known:

OPEN → CONNECT → ESTABLISHED

Workflow

Configure socket
 → CONNECT command
 → TCP handshake
 → ESTABLISHED

Handled internally by W5500 hardware.

6. Step 4 — Application Data Exchange

After TCP connection:

Send request
 → Receive response
 → Process data

Example Protocols

• HTTP → web communication
• MQTT → IoT messaging
• Modbus TCP → industrial control

7. Complete End-to-End Workflow

Putting everything together:

System Boot
   │
   ▼
SPI Initialization
   │
   ▼
Network Bring-Up
   │
   ▼
DNS Resolution (optional)
   │
   ▼
TCP Connection
   │
   ▼
Application Protocol (HTTP/MQTT)
   │
   ▼
Data Exchange

👉 Critical insight:

Failure at any step breaks the entire communication chain.

8. Industrial IoT Considerations

In industrial environments:

• Stability > flexibility
• Deterministic timing is critical
• Network reliability is essential

Why W5500 Fits Industrial Use

• Hardware TCP/IP → stable
• No OS dependency
• Predictable SPI timing
• Low MCU resource usage

9. Common Failure Points Across Layers

Layer 1 — SPI / Driver

• Wrong timing
• register write failure

Layer 2 — Network

• incorrect IP
• link down

Layer 3 — DNS

• server unreachable
• parsing error

Layer 4 — TCP

• CONNECT fails
• socket stuck

Layer 5 — Application

• protocol mismatch
• payload error

👉 Debugging rule:

Always debug from bottom → top

10. Comparison with Software Networking

Key Takeaway

A W5500-based system operates as a layered communication pipeline, where SPI, network initialization, DNS, TCP, and application protocols work together.
Understanding this end-to-end workflow is essential for building reliable industrial IoT systems and diagnosing communication failures effectively.

FAQ (WIZnet-Focused)

Q1. Why use W5500 in industrial IoT?

W5500 provides hardware TCP/IP processing, reducing MCU load and ensuring stable Ethernet communication, which is critical in industrial environments.

Q2. What is the most critical step in the workflow?

Network bring-up is the foundation. Without correct IP configuration, all higher-level protocols will fail.

Q3. Does W5500 handle DNS?

No. DNS must be implemented in MCU, while W5500 handles UDP transport.

Q4. How does W5500 simplify TCP?

It performs the entire TCP handshake and retransmission in hardware, reducing firmware complexity.

Q5. How to debug communication failures?

Start from SPI → network → DNS → TCP → application. Debugging from top-down leads to confusion.

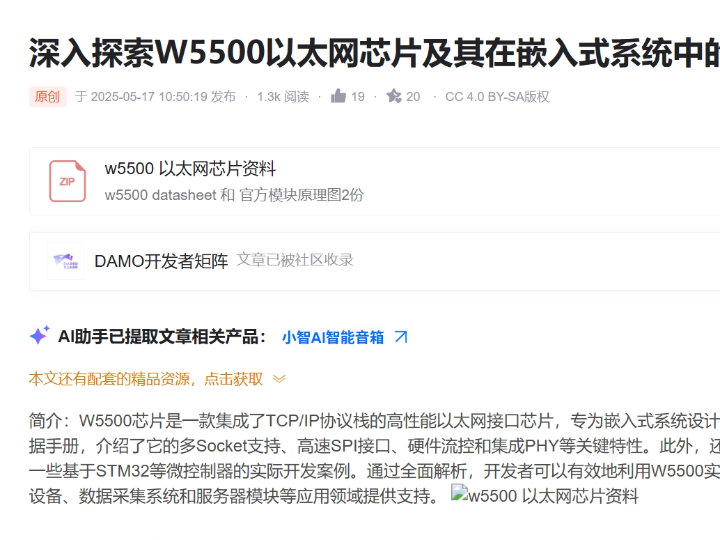

Source

CSDN Blog
weixin_35706255 — W5500 End-to-End Communication Article

Tags

W5500
Industrial IoT
Embedded Ethernet
TCP/IP Workflow
IoT Gateway

🇰🇷 한국어 번역 (1:1)

W5500 기반 시스템은 산업용 IoT에서 전체 이더넷 통신을 어떻게 수행하는가?

요약

본 문서는 WIZnet W5500 기반 임베디드 시스템에서 네트워크 초기화부터 DNS, TCP 연결, 애플리케이션 데이터 송수신까지 전체 통신 흐름을 설명한다. 하드웨어 TCP/IP 구조가 산업용 IoT 환경에서 어떻게 안정적인 Ethernet 통신을 구현하는지 분석한다.

전체 흐름

SPI → 네트워크 초기화 → DNS → TCP → 애플리케이션

핵심 메시지

W5500 기반 시스템은 계층 구조로 동작하며, 각 단계의 정확한 이해가 안정적인 산업용 IoT 통신의 핵심이다.

원하시면 다음 단계로:

• 🌐 HTTP / MQTT 상세 구현
• 🔬 Packet-level 분석 (Wireshark 기반)
• 🏭 실제 산업 적용 사례

까지 이어서 시리즈로 확장해 드릴 수 있습니다.
