Analysis of the Waveshare RP2350-ETH-8DI-8RO Product: Value as an Industrial Controller and the Significance of RP2350

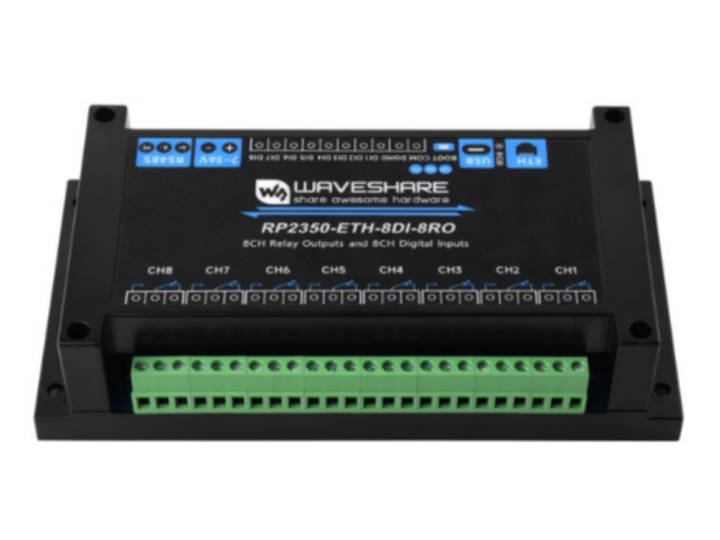

The Waveshare RP2350-ETH-8DI-8RO is a high-performance module designed to immediately apply the latest RP2350 microcontroller in industrial environments. This product holds significant value, especially in the fields of Industrial Automation and the Industrial Internet of Things (IIoT).

1. Core Value Analysis of the RP2350-ETH-8DI-8RO

This product is more than just a chip-mounted board; it is a complete Industrial Controller equipped with the necessary stability, connectivity, and control capabilities required in harsh industrial settings.

🛡️ Top-Tier Industrial Stability and Protection Circuits

Multiple Isolation Protection Circuits: Features built-in protection circuits such as Power Isolation, Optocoupler Isolation for I/O, and Digital Isolation. This shields sensitive internal components from the high noise and surges common in industrial fields, ensuring long-term stability and reliability.

Wide Voltage Input: Supports a wide voltage input range of 7V to 36V DC, allowing for easy integration into various industrial power systems.

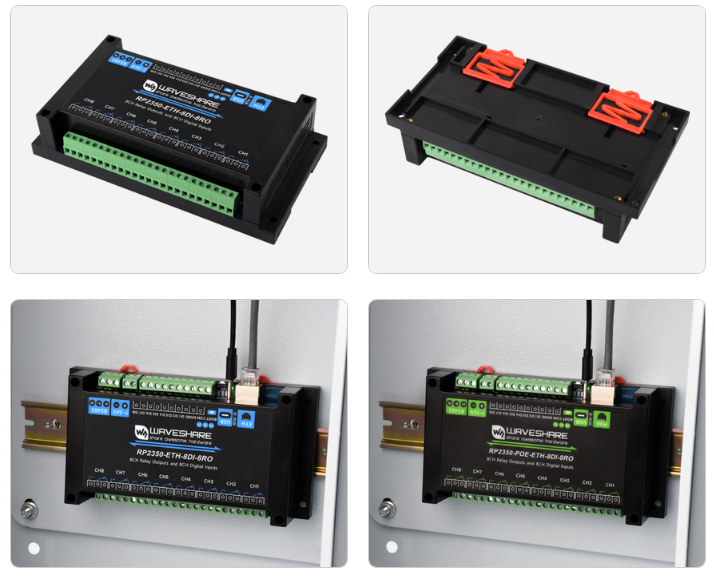

DIN Rail Mount Case: Adopts a standard Rail-Mount ABS protective case used in industrial control cabinets, making installation easy and safe.

🔌 Powerful Industrial I/O and Communication Interfaces

8-Channel Relay Output: Provides 8 high-quality relays rated up to 10A 250V AC / 30V DC, enabling direct control of high-power devices like motors, solenoid valves, and other field equipment.

8-Channel Digital Input: Supports both passive (dry contact) and active (wet contact) digital inputs, reliably collecting signals from sensors and switches in the field.

Isolated RS485 Interface: Includes an isolated RS485 port supporting the industrial standard communication protocol Modbus, ensuring connectivity and scalability with PLCs and other industrial devices.

Ethernet Port (Optional PoE): Supports wired network connectivity as standard, with an optional PoE (Power over Ethernet) function that simplifies installation and maintenance by providing both data communication and power supply over a single cable.

2. Significance of RP2350 Utilization in the Industrial Sector

The fact that the RP2350, a newly released MCU, is immediately adopted in such a robust industrial controller is highly significant.

🚀 Rapid Industrial Adoption and Proof of Reliability

New chipsets are typically first used in development boards or consumer electronics before their reliability is proven for long-term industrial application. The early adoption of the RP2350 in a high-reliability industrial module suggests the following:

High Potential and Stability of the Chip: It indicates that the manufacturer (Waveshare) places high confidence in the RP2350's performance, durability, and stability.

Shift in the Industrial MCU Market: It demonstrates that Raspberry Pi's silicon is successfully entering the market traditionally dominated by established industrial MCU vendors (e.g., STM32, PIC). The price-to-performance ratio and ease of development of the RP2350 are becoming an attractive alternative in the industrial space.

💡 Innovative Value of Dual-Core & Dual-Architecture

The RP2350 features a unique "Dual-core & Dual-architecture" design (dual ARM Cortex-M33 or dual Hazard3 RISC-V processors).

Performance and Flexibility: The two cores can be used to separate real-time control tasks from communication/logic processing, significantly improving the response speed and reliability, which are critical in industrial applications.

Contribution to the RISC-V Ecosystem: It provides an opportunity for developers to experiment with and apply the RISC-V architecture in a stable, well-supported environment, serving as an important foundation for future open-hardware-based industrial systems.

3. Emphasis on the W5500 Ethernet Solution

The selection of the Wiznet W5500 chip as the Ethernet solution for the RP2350 in this product offers substantial practical benefits.

🌐 Proven and Stable Hardware TCP/IP Stack

The W5500 is not just a simple Ethernet MAC/PHY chip; it is a Full-Hardwired TCP/IP embedded Ethernet controller that handles the entire TCP/IP protocol stack (MAC, PHY, IP, TCP, UDP, ICMP, etc.) in hardware.

Reduced CPU Load: Because the W5500 manages all network packet processing, the main RP2350 cores can fully focus on critical industrial control logic, such as 8-channel relay control, RS485 communication, and digital input processing, without being burdened by complex TCP/IP overhead.

Fast Development and High Reliability: The W5500 is a market-proven chipset with high reliability and abundant development resources and libraries. This accelerates the time-to-market for the new RP2350 chip and helps developers implement stable networking features quickly.

In conclusion, the RP2350-ETH-8DI-8RO strategically positions itself as a highly reliable, next-generation industrial control and IoT gateway by combining the performance and flexibility of the cutting-edge RP2350 chipset with the proven network stability of the W5500, all integrated into a protected industrial form factor.
