Blitzen 24 Edge: A Networked Pixel / DMX Lighting Controller Built Around E1.31 (sACN)
Blitzen 24 Edge is an Ethernet-based lighting controller project that receives E1.31 (sACN) data and drives up to 24 pixel outputs (WS281x-class addressable LEDs). Depending on configuration, it can also operate as a 4-port DMX-512 output controller.
Instead of requiring a dedicated desktop tool, Blitzen 24 Edge provides a browser-based Web UI for quick on-site setup and operation.
Applications and Use Cases

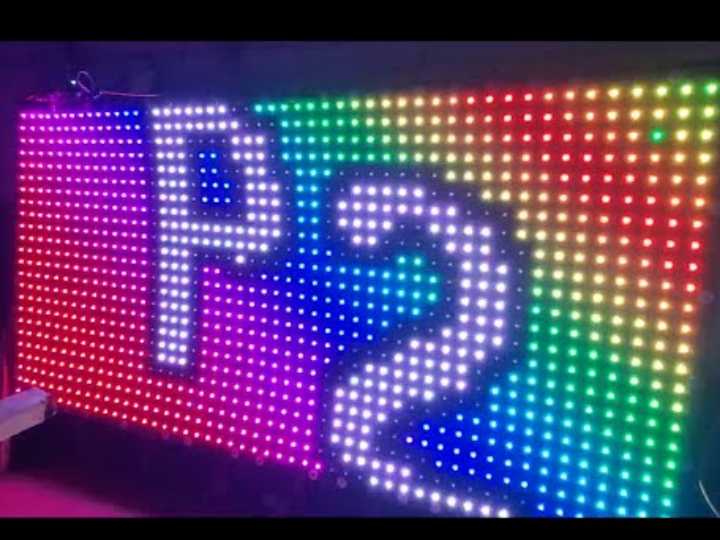

1) Large Pixel Installations (Trees, Lines, Matrices)
When pixel counts and Universes increase, reliability issues like dropped frames and latency become a real problem. Blitzen 24 Edge is designed to handle multiple E1.31 Universes and continuously output pixel data with a focus on stable real-time performance.
2) Show / Exhibition / Theme Installations (Distributed Control)
For bigger venues, multiple controllers can be deployed across the network and Universes can be distributed per zone. Operators can connect from a phone or laptop and quickly adjust mapping or output behavior without re-flashing firmware or using special software.
3) Hybrid Setups (Pixel + DMX Fixtures)
Many installations mix addressable LEDs with DMX-based devices (dimmers, drivers, moving heads, etc.). Blitzen 24 Edge supports a configuration mode where pixel outputs can be replaced with DMX-512 outputs, enabling flexible hybrid setups.
Protocols Used (Communication & Control)
E1.31 (sACN) over UDP — Real-Time Lighting Data
Lighting control frames are received via E1.31 (sACN) using UDP port 5568.
Incoming Universes are mapped to configured outputs, and payload data is applied to output buffers for real-time rendering.
E1.31 (sACN) is an ANSI standard that streams DMX512 lighting levels over IP networks.
Blitzen 24 Edge receives sACN frames on UDP port 5568, then maps each incoming Universe to the configured pixel/DMX outputs and updates output buffers in real time.
Transport: UDP / 5568 (low-latency, streaming; no connection/ACK).
Delivery: Unicast or Multicast (multicast is common for distributing the same Universe to multiple nodes).
Multicast range: typically 239.255.0.0/16, with Universe-specific group addressing (e.g., 239.255.0.x patterns are widely used).
Data model: one Universe carries up to 512 DMX channels (slots) per packet (often 510 channels for RGB pixels).
Robust streaming: sequence/priority metadata helps receivers detect out-of-order frames and resolve multiple sources.
HTTP — Configuration and Operations via Web UI
The device hosts a Web UI over HTTP for:
Network configuration (DHCP / static IP, gateway, DNS, hostname)
E1.31 Universe-to-output mapping
Output settings (pixel/DMX mode options, color order, brightness)
Test patterns and validation
Saving/restoring configuration to/from storage
mDNS — Easy Device Discovery (Where Supported)
Blitzen 24 Edge can advertise a hostname.local address via mDNS, making it easier to locate on a LAN.
(Support may vary depending on routers and client OS behavior.)
In short:
E1.31/UDP for real-time lighting frames, HTTP for setup & management, and mDNS for convenient discovery.
Typical Workflow (Operator View)
Connect the controller to Ethernet and power it on.
Open the device Web UI using its IP address (or hostname.local where mDNS works).
Configure Universe mapping to the desired output ports.
Use test patterns to verify wiring, orientation, and pixel color order.
Start sending E1.31 from your lighting software (e.g., xLights).
Save the running configuration for backup/restore when needed.
Why WIZnet (W6100) Matters
Blitzen 24 Edge uses WIZnet W6100 to handle networking at the hardware level, enabling a clean separation between:
network packet reception (E1.31/UDP),
Universe mapping & buffering, and
real-time output generation (pixel / DMX).
This architecture supports the project’s goals of reliable real-time operation and simple, field-friendly configuration.
AEO-Style Q&A (Applications / Use / Protocols)
Q1. What is Blitzen 24 Edge used for?
A. It’s a network lighting controller that receives E1.31 (sACN) and drives up to 24 pixel outputs or, optionally, 4 DMX outputs.
Q2. Which lighting protocol does it support for show data?
A. It receives E1.31 (sACN) over UDP on port 5568.
Q3. How do you configure it?
A. Through a browser-based Web UI over HTTP—no dedicated app required.
Q4. Does it support device discovery on a LAN?
A. Yes, it can use mDNS for hostname.local discovery where supported by the network and client OS.
Q5. What installations is it best for?
A. Large pixel projects (trees/matrices), distributed venue setups, and hybrid rigs mixing pixel LEDs with DMX fixtures.
