Project Guide: Building a High-Performance TCP Server on an FPGA with WIZnet W5300

This guide details the development of a high-speed, hardware-accelerated TCP echo server by directly interfacing a WIZnet W5300 TCP/IP processor with an Altera FPGA running a Nios II soft-core CPU. By leveraging the W5300's 16-bit parallel bus, this project achieves near line-rate throughput (~80 Mbps) with minimal CPU overhead, creating a robust and deterministic network node ideal for real-time applications.

The entire system is built from the ground up using Quartus II, the Nios II Eclipse IDE, and a ported C driver, demonstrating a powerful alternative to software-based TCP/IP stacks on microcontrollers.

## 1. Core Technology & Concepts

This project sits at the intersection of FPGAs, soft-core processors, and dedicated network hardware. Understanding these components is key.

1. WIZnet W5300 (Hardwired TCP/IP): Unlike common SPI-based Ethernet modules (like the W5500), the W5300 is a high-performance network processor that provides a parallel bus interface. It single-handedly manages the entire TCP/IP stack in hardware, offloading this complex task from the host processor. The 16-bit bus allows for much higher data transfer rates compared to serial interfaces.
2. FPGA (Field-Programmable Gate Array): An FPGA is a semiconductor device containing programmable logic blocks. It can be configured to implement any digital circuit, from a simple logic gate to a complex multi-core processor. In this project, it hosts the Nios II CPU and the custom logic needed to interface with the W5300 bus.
3. Nios II Soft-Core CPU: A "soft-core" processor is a CPU architecture defined in a hardware description language (HDL) and implemented using the FPGA's logic fabric. It is a real, functional processor that runs compiled C/C++ code, giving us the flexibility to control peripherals and execute application logic.
4. Qsys (Platform Designer): This is Intel/Altera's system integration tool. It provides a graphical interface to connect various IP (Intellectual Property) cores, such as the Nios II CPU, on-chip memory, timers, and custom peripherals, using the Avalon Memory-Mapped (Avalon-MM) bus standard.

## 2. Prerequisites

Hardware Components⚙️

Software & Services 💻

1. Altera Quartus II 13.1: The primary tool for FPGA design, synthesis, and programming.
2. Qsys System Integration Tool: Bundled with Quartus, used for building the Nios II system.
3. Nios II Eclipse IDE: For developing, compiling, and debugging the C application for the Nios II CPU.
4. SignalTap II Logic Analyzer: An indispensable tool for debugging hardware timing issues on the bus.
5. Modified WIZnet W5300 C Driver: The official driver, adapted for the Nios II environment.

## 3. System Architecture and Implementation

The project is implemented in two main parts: the Hardware Design (FPGA logic) and the Software Application (C code).

Hardware Design: Interfacing the Bus in Verilog & Qsys

The core hardware task is to create a bridge between the Nios II CPU's internal Avalon bus and the W5300's external parallel bus.

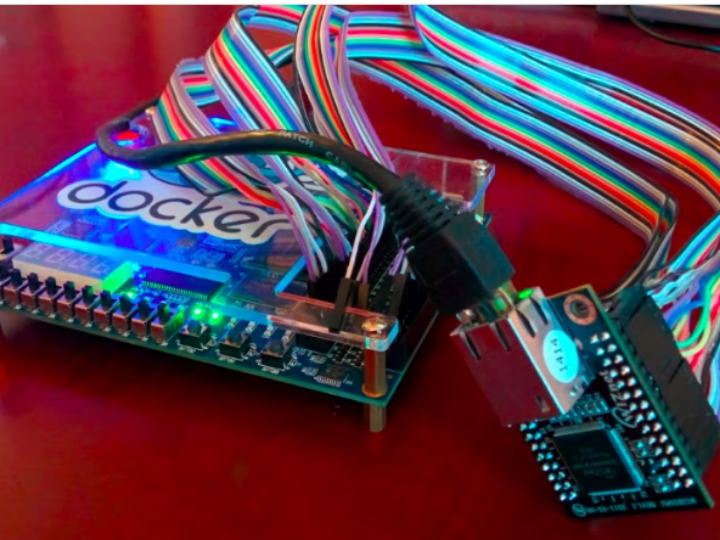

1. Physical Connection: All 56 signal lines (Address, Data, Control) are manually wired between the DE0's GPIO headers and the WIZ830MJ module. In Quartus, these pins are configured as 3.3-V LVCMOS I/O using the Pin Planner.
2. Qsys System: A basic Nios II system is created in Qsys, including the CPU, on-chip RAM, and a JTAG UART for debugging.
3. Avalon-MM Slave in Verilog: A custom component (an Avalon Memory-Mapped Slave) is written in Verilog. This component acts as the "translator." When the Nios II processor writes to a specific memory address, this Verilog module intercepts the request and generates the corresponding bus signals (nCS, nWR, ADDR, DATA) with the precise timing required by the W5300 datasheet.
4. Integration: This custom Verilog module is imported into the Qsys system and connected to the Nios II's data bus. The W5300 now appears to the CPU as a simple block of memory.

Software Design: Driving the W5300 in C

With the hardware bridge in place, controlling the W5300 is done by reading and writing to its memory-mapped registers from C code running on the Nios II.

// The base address of the W5300 is mapped by Qsys (e.g., WIZ0_BASE)
// The Nios II C code can then access W5300 registers directly.

/* Example: Performing a soft-reset on the W5300 from Nios II */
volatile unsigned short *mode_register = (unsigned short *)(WIZ0_BASE + 0x0000);

// Set the RESET bit (bit 7) in the Mode Register
*mode_register |= 0x0080;

// After initialization, a simple API call starts the TCP listener.
// This function is part of the ported WIZnet driver.
// It configures Socket 0 to listen on port 5000 for incoming connections.
loopback_tcps(0, 5000, data_buffer, 0);

The data flows from the PC through the network, is fully processed by the W5300 chip, and the resulting payload data is placed in the W5300's internal buffers. The Nios II CPU can then read this data over the 16-bit bus as if it were accessing local memory.

## 4. Performance & Applications

Performance Results

1. Throughput: ~80 Mbps measured in a Telnet echo test, approaching the 100BASE-TX theoretical maximum.
2. Latency: < 1 ms round-trip time with 0% packet loss over a 10-minute test, demonstrating extreme stability.

Potential Applications & Extensibility

The combination of an FPGA and a hardware TCP/IP stack opens the door to highly specialized, real-time network applications.

1. Industrial Automation & Control: Create a deterministic control node for factory machinery that requires guaranteed low-latency responses over Ethernet (e.g., EtherCAT-like protocols).
2. High-Speed Data Acquisition: Connect high-throughput sensors (e.g., ADCs, image sensors) directly to the FPGA fabric and stream the data over TCP without needing a host PC.
3. Custom Network Appliances: Implement a dedicated firewall, protocol gateway, or network packet logger where filtering and processing rules are accelerated directly in the FPGA logic for line-rate performance.
4. Video & Audio Streaming: Build a custom IP camera or audio-over-IP device where the FPGA handles both the media encoding/decoding and the network streaming.

## 5. Project Expansion Analysis

This project serves as an excellent foundation. Here are several ways it can be significantly enhanced:

1. Full HDL Offload: The ultimate performance upgrade. Instead of using the Nios II CPU to echo data, implement the data processing logic entirely in Verilog/VHDL. For an echo server, this means routing the W5300's receive buffer directly to its transmit buffer. For more complex tasks, the FPGA could perform real-time data analysis (like FFTs, filtering, or image processing) on the incoming data stream before sending it out, achieving parallelism that a CPU cannot match.
2. Integrate a DMA Controller: In Qsys, add a Direct Memory Access (DMA) controller. This would allow large blocks of data to be moved between the W5300 and the FPGA's on-chip RAM without any intervention from the Nios II CPU, freeing it up for other application-level tasks.
3. Implement Application-Layer Protocols: Build on the TCP socket by implementing higher-level protocols on the Nios II. Examples include an industrial Modbus TCP slave, an MQTT client for IoT, or a simple HTTP server to serve a web-based status page.
4. Upgrade to a modern FPGA and AXI Bus: Port the design to a modern FPGA development board. This would involve migrating the custom bus interface logic from Avalon-MM to the industry-standard AXI (Advanced eXtensible Interface) bus, which is a valuable and transferable skill.
