Project Overview

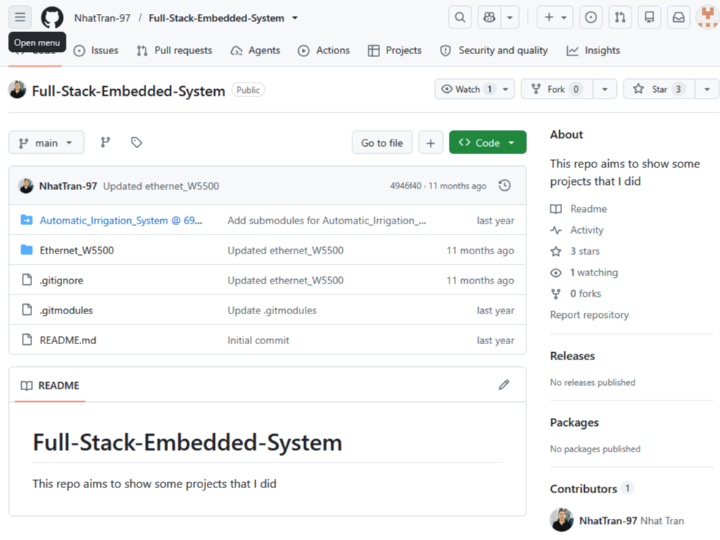

Full-Stack-Embedded-System is not a single integrated product. It is a compact embedded systems repository that combines two project paths: W5500 Ethernet examples for ESP32-based MCUs and an automatic irrigation system implemented as a submodule.

The Ethernet_W5500 path explores how to connect MCUs with the W5500 Ethernet module for embedded systems and IoT applications. Its README lists ESP32 + W5500 examples for Arduino and ESP-IDF as completed, with STM32 + W5500 marked as planned.

The Automatic_Irrigation_System path is a 2022 automatic irrigation project developed for a national startup competition. Its README describes local keypad control, timer-based scheduling, remote mobile operation, and testing on the EIU campus before selection among the top 70 teams in the national finals.

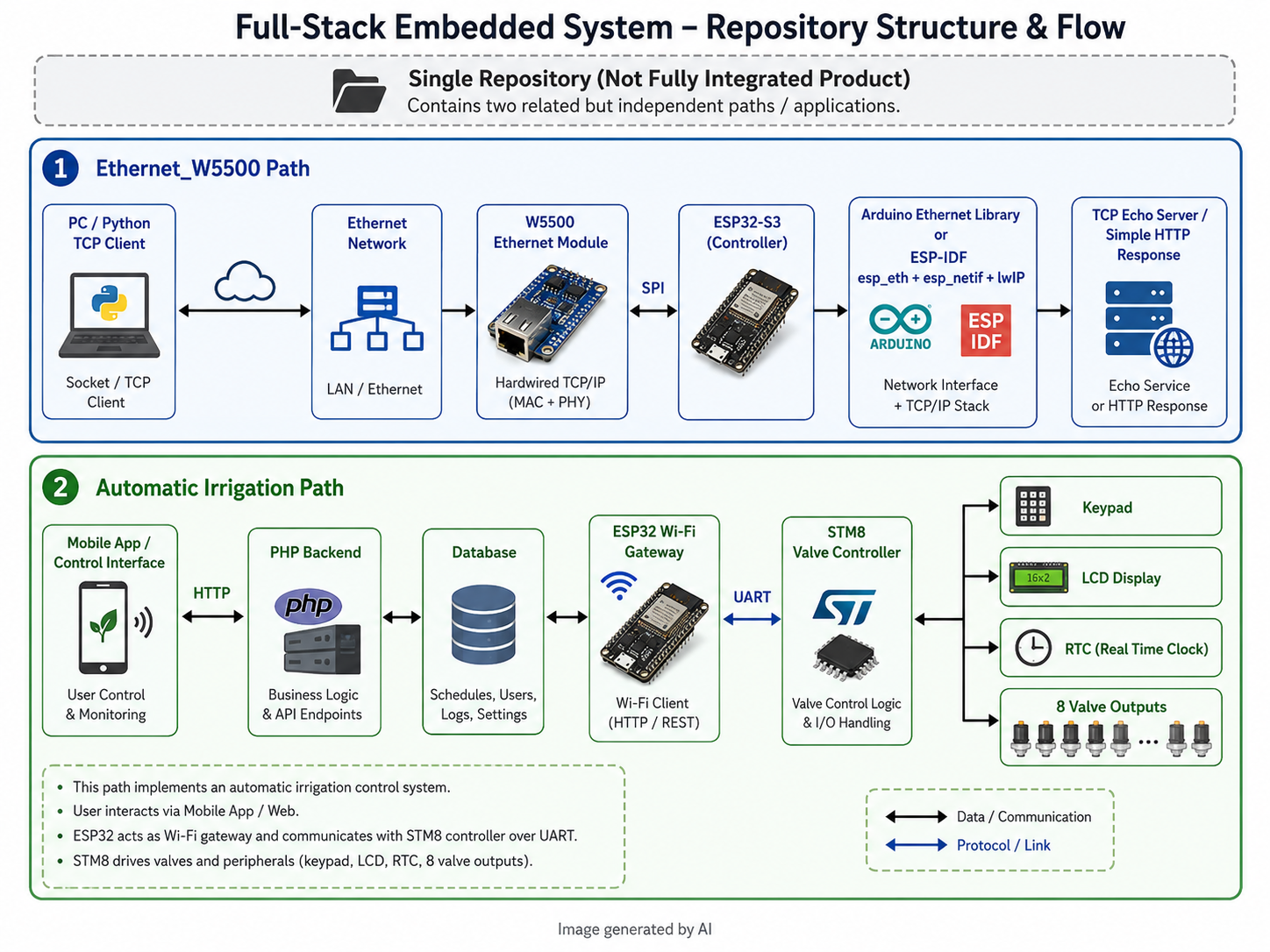

System Structure

[Ethernet_W5500]

PC / Python TCP Client
        ↓ TCP
Ethernet Network
        ↓
W5500 Ethernet Module
        ↓ SPI
ESP32-S3
        ↓
Arduino Ethernet Library
or ESP-IDF esp_eth + esp_netif + lwIP Socket
        ↓
TCP Echo Server

[Automatic_Irrigation_System]

Mobile App / Control Interface
        ↓ HTTP
PHP Backend
        ↓ Database
ESP32 Wi-Fi Gateway
        ↕ UART
STM8 Valve Controller
        ↓
Keypad / LCD / RTC / Motor / 8 Valve Outputs

The two project paths share an embedded IoT theme, but the repository does not show them as one merged W5500-based irrigation gateway.

WIZnet Product Role

The WIZnet product used in this repository is the W5500 Ethernet module. It is used as an SPI-based Ethernet controller for ESP32 networking examples. The Arduino example defines W5500 reset, chip select, SCLK, MISO, and MOSI pins, initializes SPI, starts Ethernet, and opens a TCP server on port 5000.

The ESP-IDF implementation uses W5500 MAC/PHY creation, SPI bus setup, esp_netif, static IP configuration, and lwIP socket APIs. The TCP server is implemented through socket, bind, listen, accept, recv, and send.

Operation Flow

W5500 Ethernet Flow

1. ESP32-S3 configures W5500-related GPIO and SPI pins.
2. Ethernet initialization is performed through Arduino Ethernet library or ESP-IDF Ethernet driver.
3. The board obtains or sets an IP address.
4. A TCP server listens on port 5000.
5. A PC-side client connects and exchanges TCP data.
6. The Python client validates the echo server behavior from the host side.

Automatic Irrigation Flow

1. The STM8 controller manages local control components such as keypad, LCD, RTC, watchdog, and valve outputs.
2. The ESP32 gateway connects to Wi-Fi and communicates with backend PHP endpoints over HTTP.
3. Control data is received from the backend and transferred to the STM controller over UART.
4. Sensor and valve-state data are sent back to the backend.
5. The mobile application layer exists as a Flutter project scaffold with IoT-related dependencies.

Technical Characteristics

Strengths

Limitations

Application Value

This repository is useful as an embedded IoT prototype study case. It provides W5500 Ethernet bring-up examples, TCP server validation, ESP32 gateway logic, STM8-based local control, and backend/mobile integration elements in one project collection.

The strongest technical value is the combination of low-level device connectivity and higher-level IoT system layering. The repository shows how embedded networking, local control, backend communication, and app scaffolding can be arranged in a prototype-stage system.

Author Information

The GitHub repository owner is NhatTran-97, and the automatic irrigation project is linked as a submodule from the main repository.

Final Summary

Full-Stack-Embedded-System combines ESP32-S3 W5500 Ethernet examples with an automatic irrigation prototype based on STM8, ESP32 Wi-Fi, PHP, and Flutter. The W5500 section provides practical Ethernet and TCP validation examples, while the irrigation submodule shows a layered IoT structure with local control, gateway communication, backend scripts, and mobile-app scaffolding. The repository is best understood as a prototype-oriented embedded IoT project collection.
