The W5500 acts as a dumb SPI Ethernet MAC/PHY; TCP/IP is handled by MicroPython's own lwIP stack via the built-in network.LAN driver.

Every step below was flashed, run, and verified on real hardware — follow it in order and you should get the same result.

Board specs

00 Environment setup

On your PC:

Install the Python tools

pip install esptool mpremote

esptool flashes firmware onto the board; mpremote connects to the board's REPL, copies files, and runs scripts.

Download the MicroPython firmware

Matching the Octal SPIRAM in the specs above, this guide picks board type ESP32_GENERIC_S3 and variant SPIRAM_OCT on micropython.org/download (grabbing the plain variant or FLASH_4M would still boot, but PSRAM wouldn't be usable). If you're using a different board, check its module name and SPIRAM type (Octal vs. Quad, or none) first and pick the matching variant.

This guide is based on MicroPython v1.28.0 — to grab that exact build directly, use ESP32_GENERIC_S3-SPIRAM_OCT-20260406-v1.28.0.bin.

Connect the board and find its port

Plug the board in over USB. On Windows, check Device Manager → "Ports (COM & LPT)" for the assigned COM number (e.g. COM5). Replace COMx below with whatever you find.

Flash the firmware

esptool.py --port COMx erase_flash
esptool.py --port COMx --baud 460800 write_flash 0x0 ESP32_GENERIC_S3-SPIRAM_OCT-v1.28.0.bin

If your board has a BOOT button and isn't detected, hold BOOT while plugging in USB, or press it right before running erase_flash.

Verify the connection

mpremote connect COMx

You should see the MicroPython banner and a >>> prompt. Exit the REPL with Ctrl+] or Ctrl+X.

Get the example files onto the board

This guide's examples live in a repository: github.com/simryang/esp32-w5500-devkit-examples

git clone https://github.com/simryang/esp32-w5500-devkit-examples.git
cd esp32-w5500-devkit-examples

Copy the shared module over first:

mpremote connect COMx fs cp net_init.py :net_init.py

The remaining examples are run in place, one at a time, starting in section 3.

Official examples/tests referenced

This guide's examples were written against the following paths in the official MicroPython repository.

examples/network/ — generic network examples, not tied to any specific interface (the official repo has no W5500-specific example):

tests/ — used to confirm the exact shape of the plain socket API (error handling, timeouts, etc.), reflected in examples 03–07. Repository: github.com/micropython/micropython/tree/v1.28.0/tests

01 Hardware wiring

Confirmed from the board schematic (ESP32-W5500-Dev-V1_SCH.pdf) — do not guess these pins on a different board, re-check the schematic:

02 Shared init module

Every example imports init_lan() from this module. It brings the SPI bus and network.LAN interface up and blocks (up to dhcp_timeout_s) until DHCP assigns an address. On the ESP32 port, W5500 support ships through the generic network.LAN class, not network.WIZNET5K.^[1]

# net_init.py
import time
import network
from machine import Pin, SPI

PIN_SCK = 12
PIN_MOSI = 11
PIN_MISO = 13
PIN_CS = 10
PIN_INT = 14
PIN_RESET = 9


def init_lan(dhcp_timeout_s=15):
    spi = SPI(1, sck=Pin(PIN_SCK), mosi=Pin(PIN_MOSI), miso=Pin(PIN_MISO))

    lan = network.LAN(
        spi=spi,
        phy_type=network.PHY_W5500,
        phy_addr=0,
        cs=Pin(PIN_CS),
        int=Pin(PIN_INT),
        reset=Pin(PIN_RESET),
    )
    lan.active(True)

    for _ in range(dhcp_timeout_s):
        if lan.isconnected():
            return lan
        time.sleep(1)

    raise RuntimeError("W5500: no link/DHCP within %ds (ifconfig=%s)" % (dhcp_timeout_s, lan.ifconfig()))

If you already copied net_init.py to the board in section 0, each example below now runs on its own:

mpremote connect COMx run 01_link.py

03 Verify functionality with the examples — all 10 verified PASS on hardware

Run each example with mpremote connect COMx run <filename>. The Ethernet cable must be plugged in and your router must be able to hand out a DHCP lease.

04–07 need a peer running on your PC before you run them — e.g. for 04_tcp_client.py, start a listener on the same network first with something like ncat -l 5000 -k -e /bin/cat.

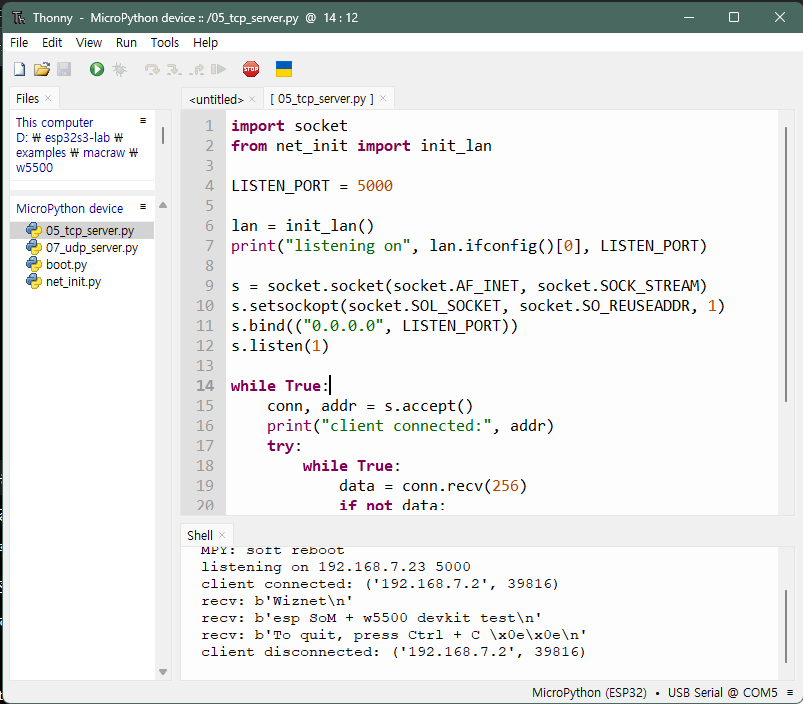

Sample 05 (TCP echo server, accept loop):

import socket
from net_init import init_lan

LISTEN_PORT = 5000

lan = init_lan()
print("listening on", lan.ifconfig()[0], LISTEN_PORT)

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
s.bind(("0.0.0.0", LISTEN_PORT))
s.listen(1)

while True:
    conn, addr = s.accept()
    print("client connected:", addr)
    try:
        while True:
            data = conn.recv(256)
            if not data:
                break
            print("recv:", data)
            conn.send(data)  # echo
    finally:
        conn.close()
        print("client disconnected:", addr)

Run logs

Real output from re-verifying all 10 examples on real hardware (board IP 192.168.7.23, PC IP 192.168.7.2):

mpremote connect COMx run <filename>

link up, active = True connected = True

ip: 192.168.7.23
subnet: 255.255.255.0
gateway: 192.168.7.1
dns: 8.8.8.8

www.wiznet.io -> 183.111.138.249

connected to 192.168.7.2 5000
received: b'hello from PC listener\n'

listening on 192.168.7.23 5000
client connected: ('192.168.7.2', 39816)
recv: b'Wiznet\n'
recv: b'esp SoM + w5500 devkit test\n'
recv: b'To quit, press Ctrl + C \x0e\x0e\n'
client disconnected: ('192.168.7.2', 39816)

sent to 192.168.7.2 5000
received from ('192.168.7.2', 5000) : b'hello from PC listener\n'

UDP echo listening on 192.168.7.23 5000
recv from ('192.168.7.2', 56907) : b'hello from PC UDP client'

b'HTTP/1.1 200 OK\r\nDate: Tue, 25 Aug 2026 05:15:23 GMT\r\nServer: Apache\r\n...
Content-Type: text/html\r\n\r\n<html>...<h1>http://info.cern.ch - home of the first website</h1>...</html>\n'

device: http://192.168.7.23/
device: client: ('192.168.7.2', 14633)
PC:     HTTP/1.0 200 OK
PC:     Hello #0 from ESP32-S3 + W5500!

initial link OK: ('192.168.7.23', '255.255.255.0', '192.168.7.1', '8.8.8.8')
cycle 0 recovered in 2214 ms, free heap: 8317744
cycle 1 recovered in 2207 ms, free heap: 8317744
cycle 2 recovered in 2207 ms, free heap: 8317744
cycle 3 recovered in 2207 ms, free heap: 8317728
cycle 4 recovered in 2207 ms, free heap: 8317728

passive poll for 120 s
t=0s   connected=True free_heap=8317728
t=5s   connected=True free_heap=8317824
...
t=115s connected=True free_heap=8317824

04 Known gotcha — OSError: -202 on DNS/external hosts
