Step 1: Understanding the Hardware

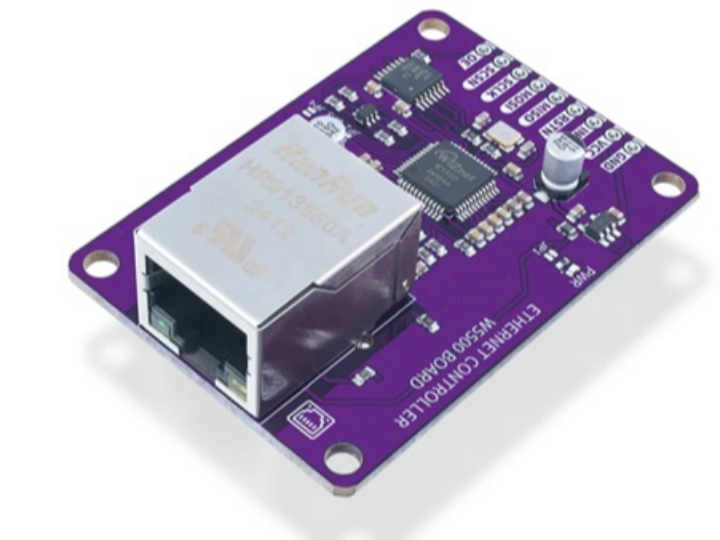

The Soldered Ethernet Controller Board integrates the WIZnet W5500, a hardwired TCP/IP Ethernet controller designed to offload networking tasks from microcontrollers.

Key W5500 specifications:

• 8 independent hardware sockets
• 32KB internal buffer (TX/RX)
• SPI interface up to 80MHz
• Integrated 10/100 Mbps Ethernet PHY

This breakout board includes:

• RJ45 connector with magnetics
• Power regulation and supporting passives
• SPI interface pins for easy MCU integration

The W5500 processes:

• TCP/UDP/IP protocols
• packet retransmission
• socket state management

This eliminates the need for software stacks like LwIP, reducing MCU RAM usage (~30KB) and improving deterministic performance.

Step 2: Software/Firmware Setup

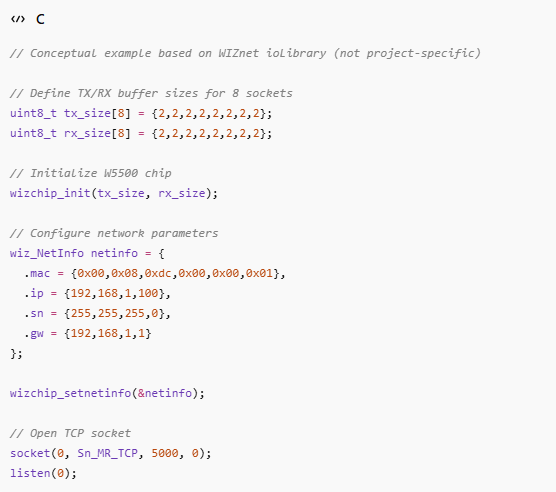

The MCU communicates with the W5500 via SPI and initializes networking using WIZnet’s socket-based API.

Because TCP/IP is handled in hardware, the MCU focuses only on:

• application logic
• sensor data handling
• system control

Step 3: System-Level Insight (Trend & Positioning)

🔹 Trend — Module-Level Integration

This board represents hardware-level integration of Ethernet complexity, combining:

• PHY
• RJ45
• TCP/IP stack

into a reusable SPI module. It removes the need for custom Ethernet circuit design, accelerating development.

🔹 Trend — Ethernet Enablement over Wi-Fi

The breakout enables rapid transition from:

• Wi-Fi-based prototypes
  → to
• deterministic wired Ethernet systems

This is critical for:

• industrial IoT
• stable telemetry
• latency-sensitive applications

🔥 Key Insight — Prototype-to-Product Bridge

This board functions as a bridge between prototyping and production:

• Engineers start with breakout modules
• Validate Ethernet functionality
• Transition to:
  • custom W5500 designs
  • or integrated solutions like W55RP20

This positions the W5500 breakout as a gateway into WIZnet ecosystem adoption.
