Step 1: Understanding the Hardware

This project demonstrates running the lightweight UNIX-like operating system Fuzix on the W5500-EVB-PICO2 development board.

The platform integrates:

• RP2350 microcontroller
• W5500 Ethernet controller
• On-board SPI connection between RP2350 and W5500
• Ethernet networking capability
• SD card support
• Fuzix UNIX-like operating system environment

Unlike traditional Raspberry Pi Pico Ethernet setups that require external wiring between a Pico board and a W5500 module, the W5500-EVB-PICO2 integrates both devices on a single PCB. This simplifies hardware setup and accelerates Ethernet-enabled embedded Linux-style experimentation.

Key W5500 specifications:

• Hardwired TCP/IP stack
• 10/100 Ethernet MAC + PHY
• SPI interface up to 80MHz
• 8 independent sockets
• 32KB internal TX/RX buffer

These features make the board particularly attractive for lightweight operating systems where MCU resources are limited.

Step 2: Why Fuzix on RP2350?

Fuzix is a UNIX-like operating system originally designed for resource-constrained processors and retro-computing platforms.

The project explores:

• UNIX-style multitasking
• File system operations
• Shell command execution
• Networking on microcontrollers
• Embedded operating system development

The author's objective was to investigate whether RP2350 could provide enough resources to run Fuzix while also supporting Ethernet networking through the integrated W5500 controller.

This is particularly interesting because Fuzix has historically been deployed on:

• Z80 systems
• Z180 systems
• ESP8266 platforms
• Raspberry Pi Pico boards

The RP2350 platform expands Fuzix support into a newer and more capable microcontroller family.

Step 3: Integrated Ethernet Advantage

One of the biggest advantages of W5500-EVB-PICO2 is that Ethernet hardware is already connected internally.

Traditional approach:

RP2350
   │
 SPI Wiring
   │
W5500 Module
   │
 Ethernet

W5500-EVB-PICO2 approach:

RP2350
   │
 On-board SPI
   │
 W5500
   │
 Ethernet

This eliminates:

• jumper wires
• SPI routing mistakes
• signal integrity concerns
• additional hardware assembly

For developers experimenting with Fuzix networking, this significantly reduces setup complexity.

Step 4: Fuzix Build Environment

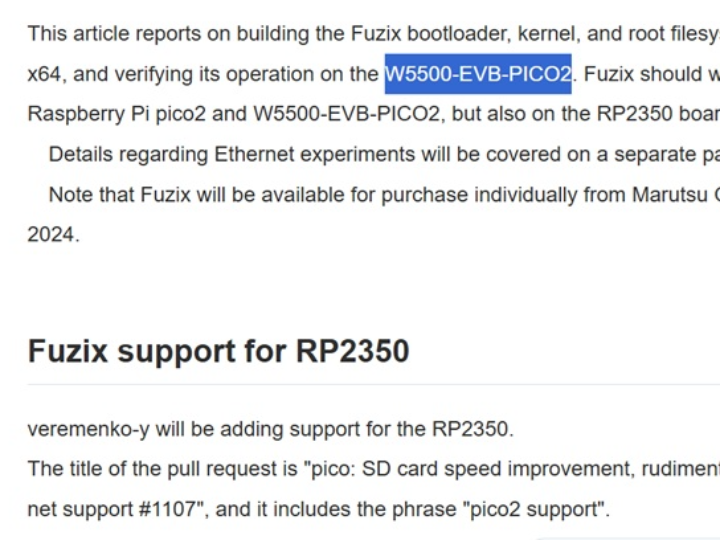

The article describes building:

• Fuzix bootloader
• Fuzix kernel
• Root filesystem

on Ubuntu 22.04 before deploying to the W5500-EVB-PICO2 board.

Conceptual initialization structure:

// Conceptual example based on WIZnet ioLibrary
// Not project-specific source code

uint8_t tx_size[] = {2,2,2,2,2,2,2,2};
uint8_t rx_size[] = {2,2,2,2,2,2,2,2};

void ethernet_init(void)
{
    wizchip_init(tx_size, rx_size);
}

The actual project uses modifications within the Fuzix networking subsystem and RP2350 platform support layers rather than a standalone application. The article references upstream Fuzix work that added preliminary RP2350 and networking support.

Step 5: Why This Project Matters

This project highlights a unique use case for W5500-EVB-PICO2:

Rather than functioning solely as an embedded Ethernet controller platform, it serves as a complete experimental environment for:

• UNIX-like operating systems
• networking research
• embedded OS development
• retro-computing projects
• educational operating system studies

The integrated W5500 removes much of the networking complexity normally associated with bringing Ethernet to lightweight operating systems running on microcontrollers.
