Step 1: Understanding the Hardware

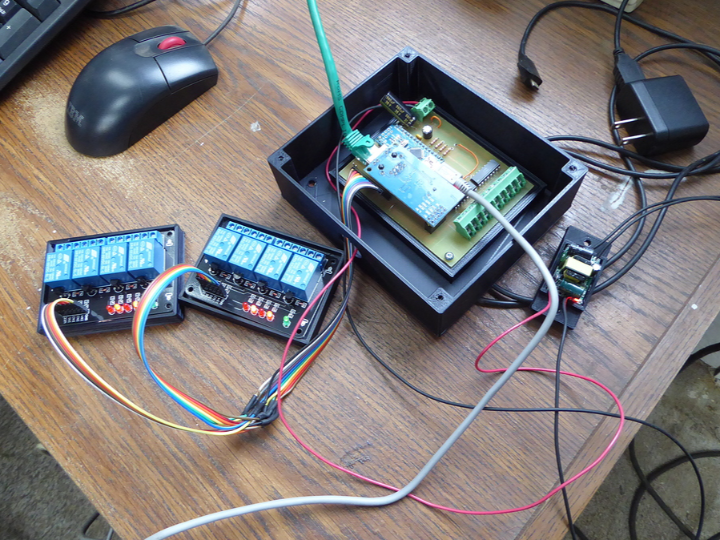

This project demonstrates a practical Ethernet-based home automation controller built around an Arduino Nano and the WIZnet W5500 Ethernet controller.

The board provides:

• Arduino Nano MCU
• W5500 Ethernet module
• 8 opto-isolated digital inputs
• 8 digital outputs
• MQTT communication
• Home Assistant integration
• Serial debugging interface
• Expansion capability for RFID readers and other peripherals

The W5500 provides:

• Hardwired TCP/IP stack
• Integrated MAC + PHY
• SPI interface
• 8 hardware sockets
• 32KB internal TX/RX buffer
• 10/100 Ethernet connectivity

Unlike Wi-Fi-based nodes, the system uses wired Ethernet for dependable communication and reduced maintenance requirements.

Step 2: Why Opto-Isolated Inputs Matter

One of the most interesting aspects of this design is the use of eight active-high opto-isolated inputs.

These inputs can connect directly to:

• Wall switches
• Push buttons
• Door contacts
• Motion detectors
• Relay contacts
• Alarm signals

The designer notes that the inputs provide approximately 1000V isolation and are highly resistant to electrical noise and false triggering. This makes the design particularly attractive for whole-home wiring and control cabinet installations.

The firmware continuously scans all inputs every 50ms and publishes MQTT updates whenever a state change occurs. It also tracks press duration, enabling:

• Short press actions
• Long press actions
• Multi-function button control
• Scene activation

without requiring additional automation hardware.

Step 3: MQTT-Based Home Assistant Architecture

The communication architecture is intentionally simple:

Switch / Sensor
        │
        ▼
Opto-Isolated Input
        │
        ▼
Arduino Nano
        │
        ▼
W5500 Ethernet
        │
        ▼
MQTT Broker
        │
        ▼
Home Assistant

This approach offers several advantages:

• No Wi-Fi congestion
• Low latency communication
• Centralized automation logic
• Easy integration with Home Assistant
• Reliable long-term operation

According to the author, multiple boards are deployed throughout the house and telemetry reports showed uptime exceeding 280 days without requiring rebooting.

Step 4: Software Implementation

The W5500 handles all Ethernet networking while the Arduino Nano focuses on I/O monitoring and MQTT messaging.

// Conceptual example based on WIZnet Ethernet Library
// Not project-specific source code

#include <Ethernet.h>
#include <PubSubClient.h>

EthernetClient ethClient;
PubSubClient mqtt(ethClient);

void setup()
{
    Ethernet.begin(mac, ip);
    mqtt.setServer(broker_ip, 1883);
}

void loop()
{
    mqtt.loop();

    if(inputChanged())
    {
        mqtt.publish(
            "home/io/input1",
            "ON"
        );
    }
}

Because the W5500 offloads TCP/IP processing in hardware, the Nano's limited RAM and processing resources remain available for application logic and sensor handling.

Step 5: Why W5500 Works Well for Home Automation

Most home automation installations eventually boil down to two tasks:

1. Reading physical inputs
2. Controlling outputs

This project demonstrates how a simple W5500-based Ethernet controller can serve as a highly reliable distributed I/O node.

Key advantages include:

• Wired Ethernet reliability
• Hardware TCP/IP offload
• MQTT compatibility
• Long-term uptime
• Noise-resistant opto-isolated inputs
• Scalable room-by-room deployment

Rather than deploying a full SBC or Wi-Fi MCU in every location, the design provides a lightweight and cost-effective Ethernet endpoint for Home Assistant ecosystems.

FAQ

Q1: Why are opto-isolated inputs important?

A: Opto-isolation protects the controller from electrical noise, voltage spikes, and ground-loop issues. This improves reliability when interfacing with long cable runs, relays, switches, and industrial-style control wiring.

Q2: How does MQTT integrate with Home Assistant?

A: MQTT acts as the communication layer between the W5500-based controller and Home Assistant. Input changes are published as MQTT messages, while Home Assistant can issue commands to control outputs through MQTT topics.

Q3: What applications can use this architecture?

A: Typical applications include smart lighting, security systems, relay control, door monitoring, occupancy detection, HVAC control, and distributed I/O systems for Home Assistant or industrial automation platforms.
