Espressif Expands Official WIZnet Support with W6100
W5500/W6100 support in ESP-IDF opens the door for deeper WIZnet–Espressif collaboration, including Hardwired TCP/IP and W6300.
WIZnet - W6100
x 1
Espressif - ESP-IDF
x 1
Overview

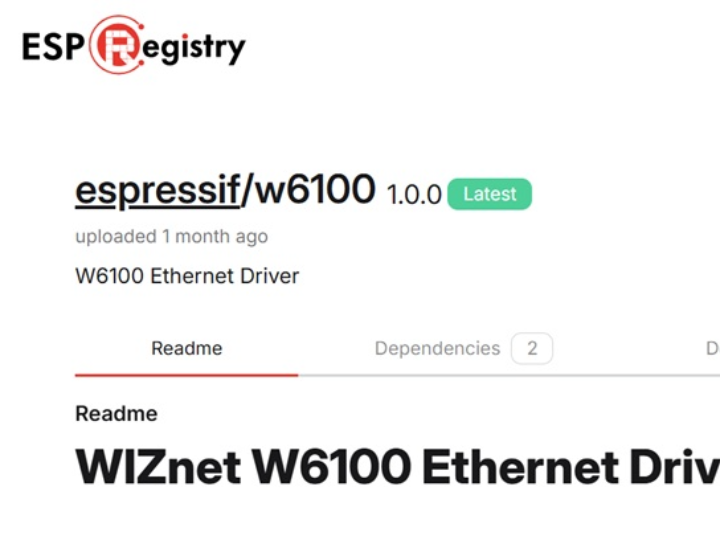

Espressif recently released an official W6100 Ethernet driver for ESP-IDF, expanding its existing support for W5500.
Espressif also introduced a shared wiznet_common component for W5500 and W6100, indicating that WIZnet products are becoming a recognized Ethernet family within the ESP-IDF ecosystem.
Why this matters: Rather than competing with ESP32's Wi-Fi connectivity, WIZnet can position itself as the wired Ethernet complement to the ESP32 ecosystem.
Current Integration
Espressif now officially supports:
ESP32 → W5500 / W6100 → Ethernet
However, the current ESP-IDF implementation primarily operates the WIZnet device in MAC RAW mode, with ESP-IDF/lwIP handling TCP/IP.
Therefore, the integration benefits WIZnet through hardware adoption and ecosystem exposure, but does not fully demonstrate WIZnet's core differentiation: Hardwired TCP/IP offload.
Opportunity for WIZnet
WIZnet could approach Espressif to expand the existing technical relationship into a broader ecosystem partnership.
1. Joint Software Support
Collaborate on official ESP-IDF examples supporting two architectures:
Standard ESP-IDF
ESP32 + WIZnet Ethernet + lwIP
WIZnet Offload
ESP32 + WIZnet Hardwired TCP/IP
This would allow developers to select the architecture that best fits their application while demonstrating WIZnet's TCP/IP offload advantage.
2. Joint Reference Designs
Potential platforms include:
ESP32-C6 + W6100
- Wi-Fi 6
- BLE
- Wired Ethernet
- IPv4/IPv6
- Industrial IoT / Gateway applications
ESP32-P4 + W6300
- High-performance application MCU
- QSPI Ethernet
- Industrial HMI
- Edge computing
- Industrial controllers
W6300 could be particularly interesting for future collaboration because QSPI provides a stronger performance story for higher-end ESP32 applications.
3. Industrial Application Examples
Joint reference applications could target:
- Modbus TCP
- MQTT gateways
- Industrial HMI
- Ethernet + Wi-Fi gateways
- Building automation
- Edge IoT
- Remote I/O
These examples could drive actual WIZnet design-ins rather than simply demonstrating Ethernet compatibility.
Potential Benefits
| WIZnet | Espressif |
|---|---|
| Access to the large ESP developer ecosystem | Ready-to-use wired Ethernet solutions |
| Increased W5500/W6100 adoption | More industrial connectivity options |
| Opportunity to promote W6300 | Ethernet + Wi-Fi reference platforms |
| Demonstrate Hardwired TCP/IP differentiation | Reduced networking workload option |
| New industrial design wins | Broader ESP32 industrial adoption |
Recommended Next Step
WIZnet should consider contacting Espressif to understand the roadmap behind its expanding WIZnet support and explore a more formal technical collaboration.
The initial discussion could focus on:
- Supporting and validating the official W5500/W6100 ESP-IDF drivers
- Developing joint application examples
- Demonstrating Hardwired TCP/IP as an alternative to MAC RAW + lwIP
- Evaluating W6300 + ESP32-P4 as a next-generation reference platform
Key Takeaway
Espressif's expansion from W5500 to W6100 support creates an opportunity for WIZnet to become the preferred wired-Ethernet partner for the ESP32 ecosystem—not simply another supported Ethernet controller.
