ping for Arduino UNO/Mega and Ethernet Shield W5100

ping для Arduino UNO/Mega и Ethernet Shield W5100

COMPONENTS Hardware components

Arduino - Arduino Ethernet Shield

x 1

Arduino - Arduino Mega 2560

x 1

sparkfun - SparkFun RFID Evaluation Shield - 13.56MHz

x 1

PROJECT DESCRIPTION

in this project, author used uno, ethernet shield and RFID tag.

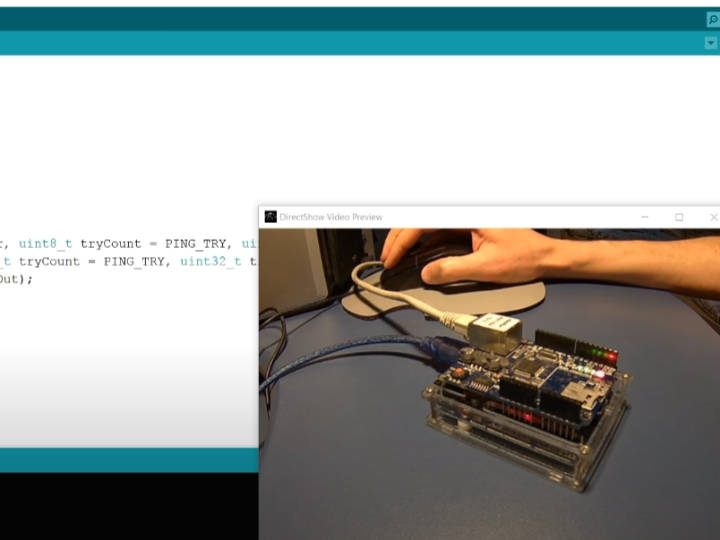

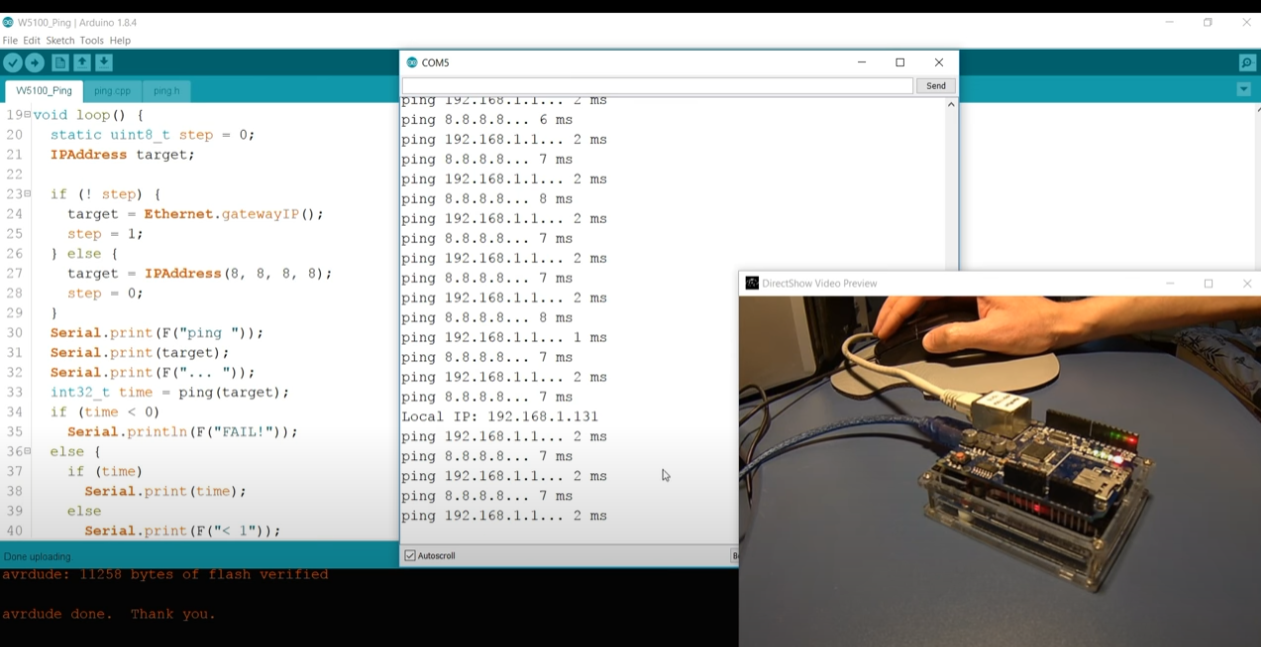

first he did ping test to check connection.

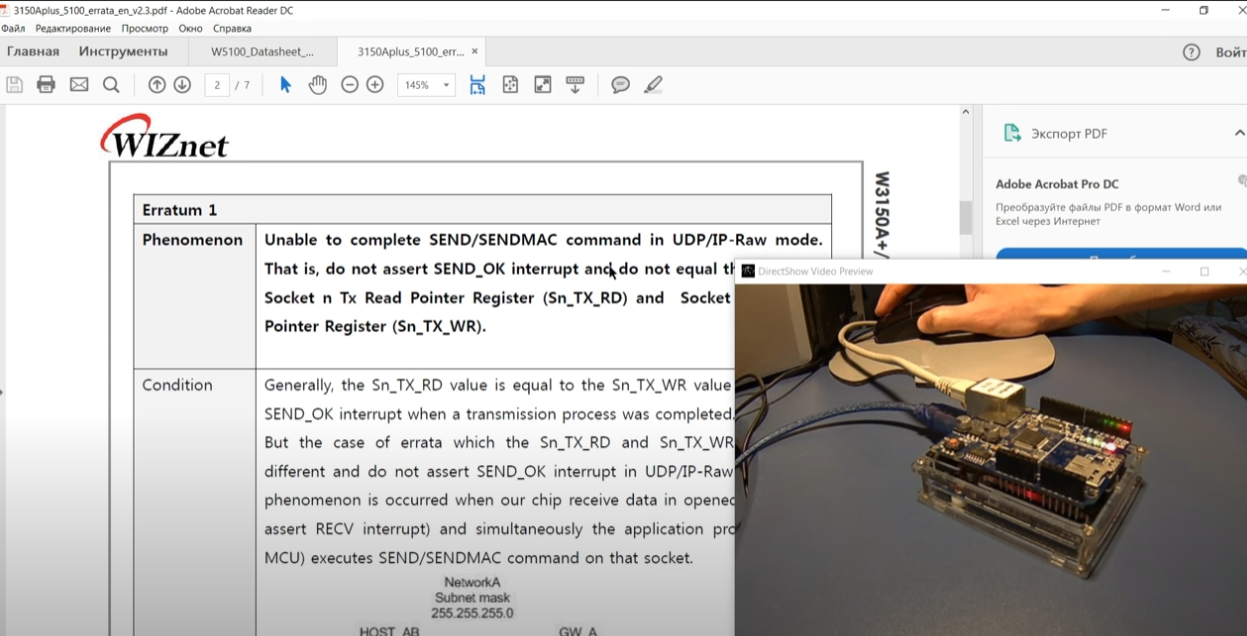

and he read our document(W3150A+/W5100 Errata Sheet) to check his code.

Unlike other web control UCCs, what was interesting was that used RFID reader.

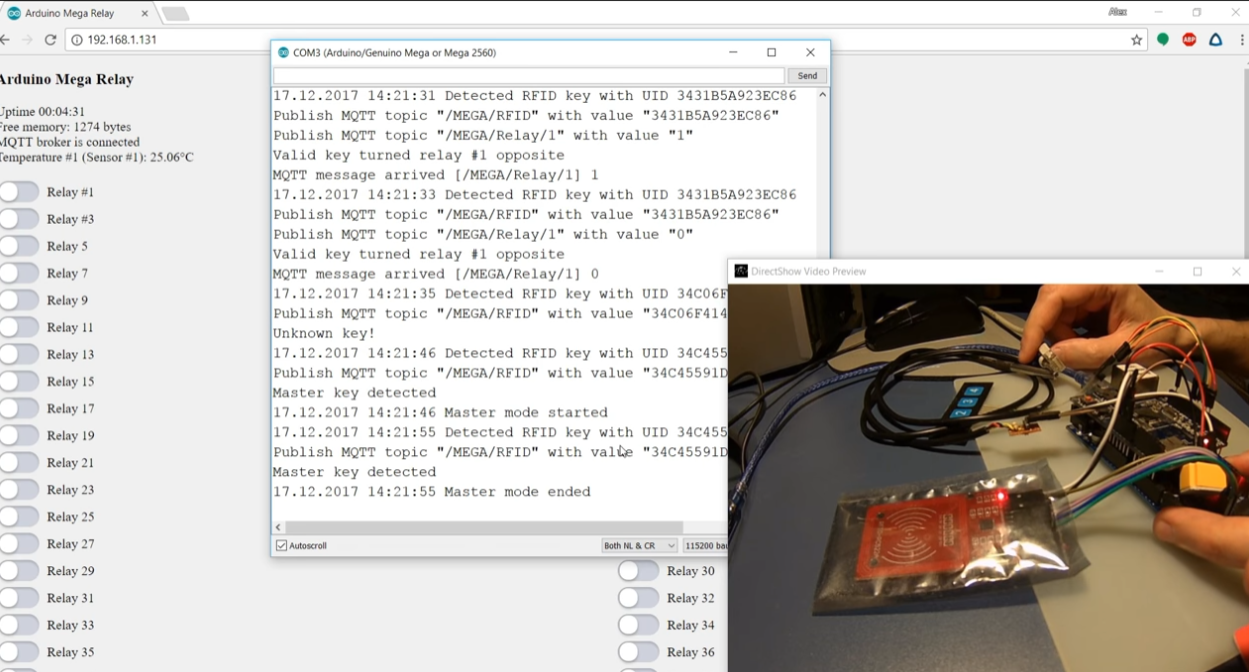

Relay can controled by each card, and when tag unregistered card, then serial monitor shows "unknown key!"

This project has good resource and lot of user can refer it

Documents

MegaRFIDRelay
Implementation of ping for Arduino UNO/Mega and Ethernet Shield W5100
W5100_ping

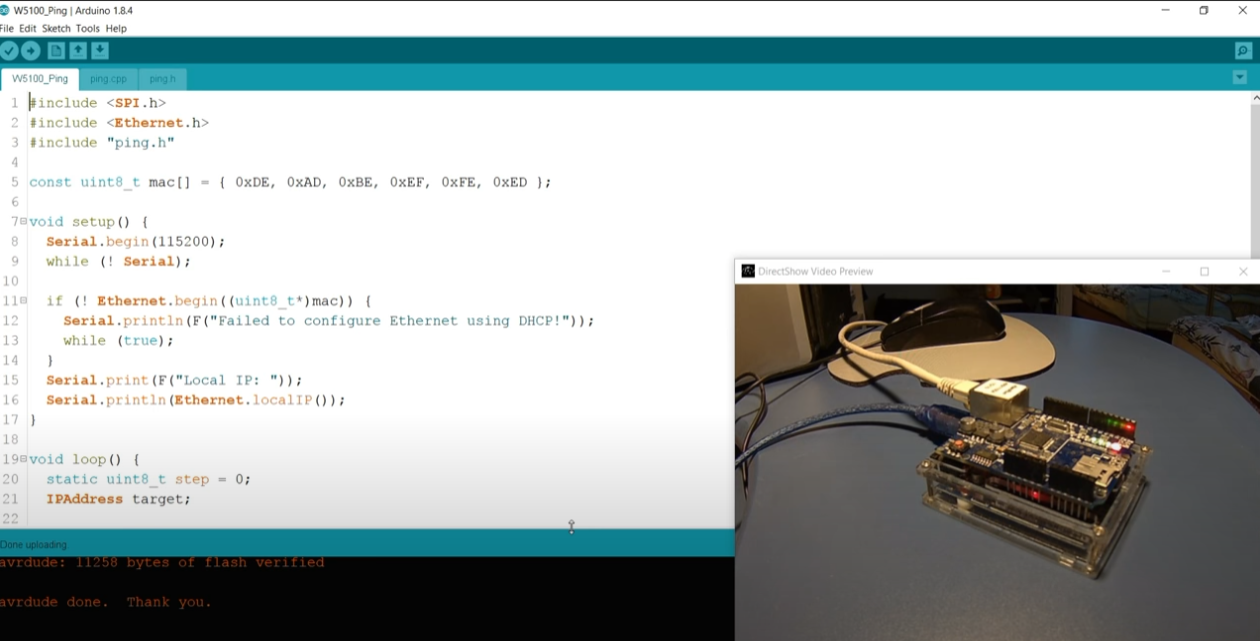

ping test code
