🚀 What is Visuino? — A Complete Overview for Makers, Engineers, and IoT Developers
Visuino is a visual programming environment that allows you to design Arduino-based embedded systems without writing manual C++ code.
Instead of typing functions, libraries, or pin definitions, you simply drag, drop, and connect functional blocks, and Visuino automatically generates the corresponding Arduino sketch.
In short:
Visuino turns complex embedded development into a visual workflow—fast, intuitive, and hardware-friendly.
🧩 Core Functions of Visuino

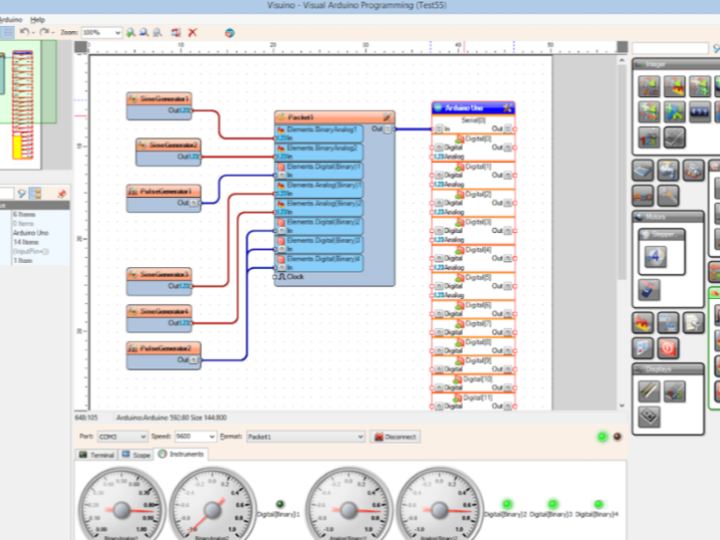

1) Visual Logic Editor
A full graphical environment where you build logic using blocks and signal connections.
No manual coding required
Input → Processing → Output is represented as a visual flow
Complex algorithms can be built by combining components
2) Real-Time Simulation
Visuino can simulate:
- Sensor data
- Timing logic
- Communication signals
- Outputs and UI elements
This allows you to verify the entire logic without any hardware connected.
3) Automatic Arduino C++ Code Generation
- With one click, Visuino generates:
- Valid Arduino C++ code
- All required libraries
- Correct pin mappings
- Upload-ready source files
Developers can also manually modify the generated code if needed.
4) Hundreds of Built-in Components
- Visuino includes ready-to-use blocks for:
- UART, I²C, SPI, RS485
- Ethernet (W5100/W5500)
- WiFi (ESP8266, ESP32)
- BLE, LoRa, NRF24L01
- LCD/OLED displays
- Motors, relays, servos
- Filters, PID, PWM, math operators
Even complex protocols and sensors can be configured within seconds.
5) Advanced Debugging Tools
- Live serial monitoring
- Real-time data plotting
- Visual signal tracing
Perfect for embedded troubleshooting and rapid iteration.
6) Multi-Board Support
- Visuino supports a wide range of hardware:
- All Arduino boards
- ESP32 / ESP8266
- STM32 variations
- Controllino industrial PLC series
- Custom Arduino-compatible devices
This makes Visuino a universal platform for both hobby and industrial applications.
The Visuino website is more than just a download page—it is a full learning ecosystem designed for real-world hardware development.

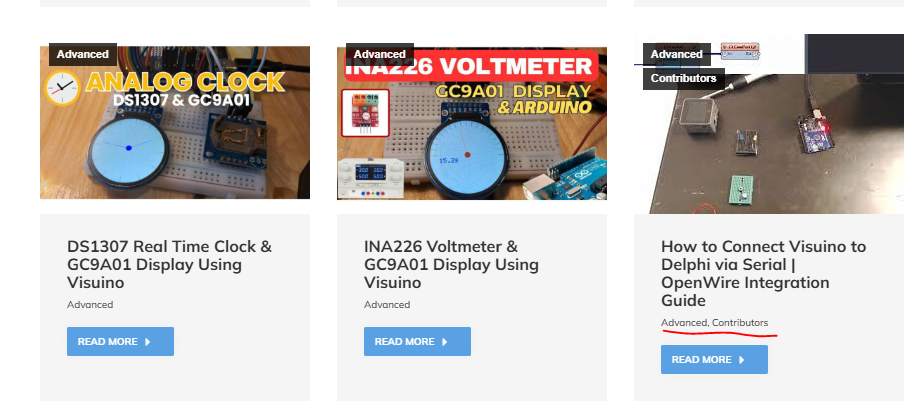

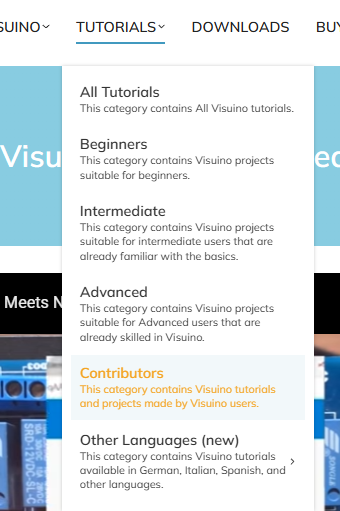

You can show difficulty Level Tags. The “Contributors” section contains projects created directly by users
As of today(25/11/27), there are 458 projects published on the site.

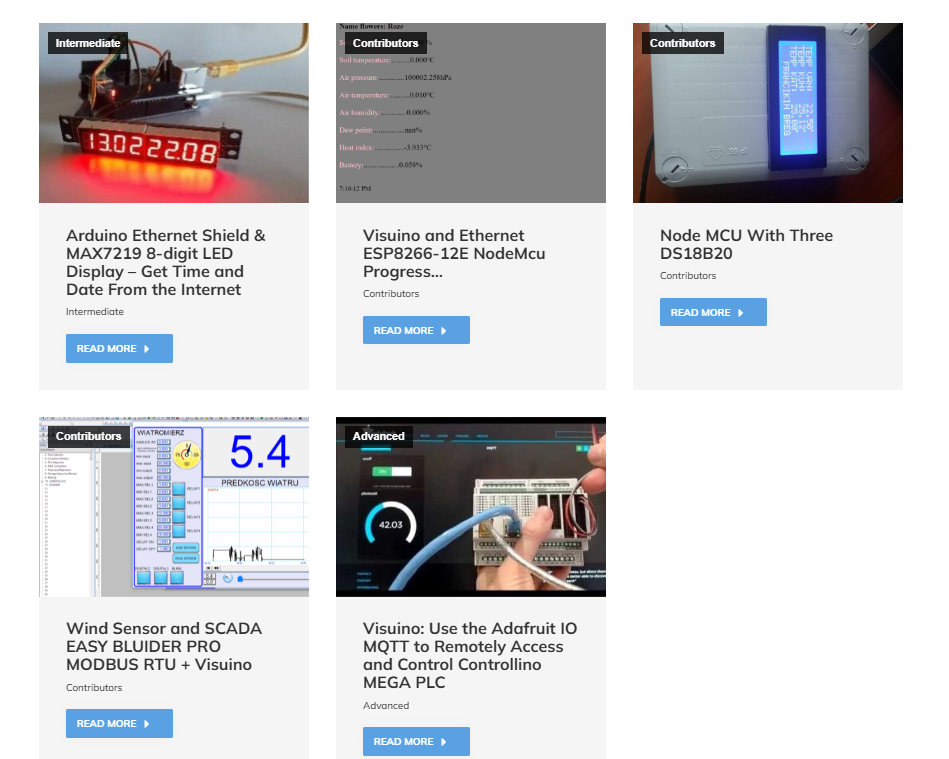

I discovered that there are about 5 tutorial videos covering Ethernet-related topics.
https://www.visuino.com/?s=ethernet
