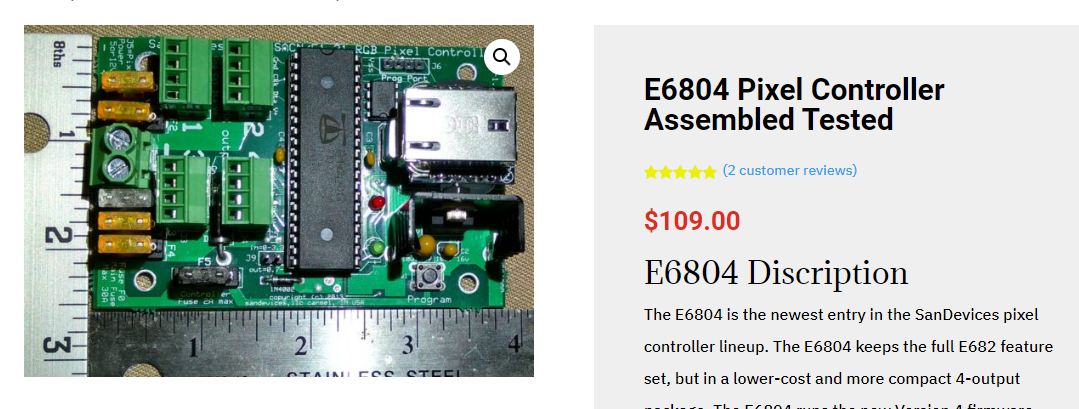

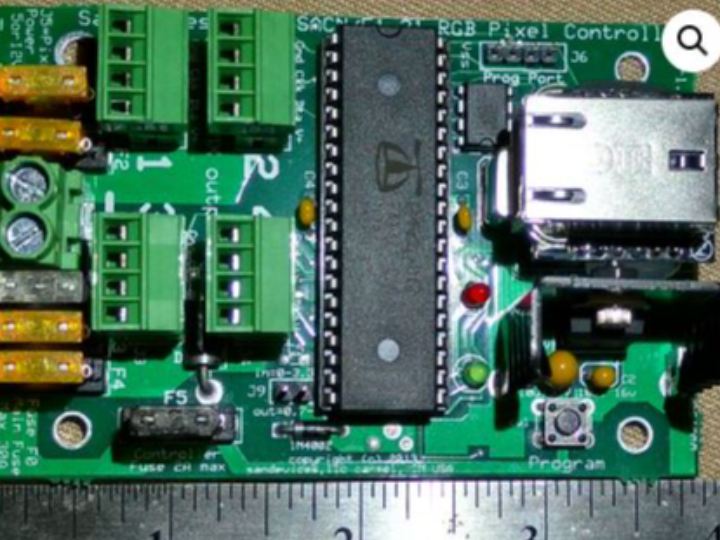

E6804 Pixel Controller Assembled Tested
The E6804 keeps the full E682 feature set, but in a lower-cost and more compact 4-output package.
3
Project description
Industry's first 12-bit pixel support with user-selectable gamma correction: (TLS3001 and CYT3005 pixels) • Control of up to 4 separate pixel strings or strips • Any output can drive any number of pixels, over multiple universes, up to the full capacity of the controller. • Control of up to 2,040 individual pixels using Unicast E1.31 or Art-Net, 1,190 pixels using Multicast E1.31 • Uses industry standard E1.31 and Art-Net protocols. • Many pixel types supported including: LPD6803, LPD880x, WS2801, TM180x, TLS3001, CYT3005, DMS9813, GE ColorEffects, WS2811, 1903, 9813, WS2811, and 1-wire…
