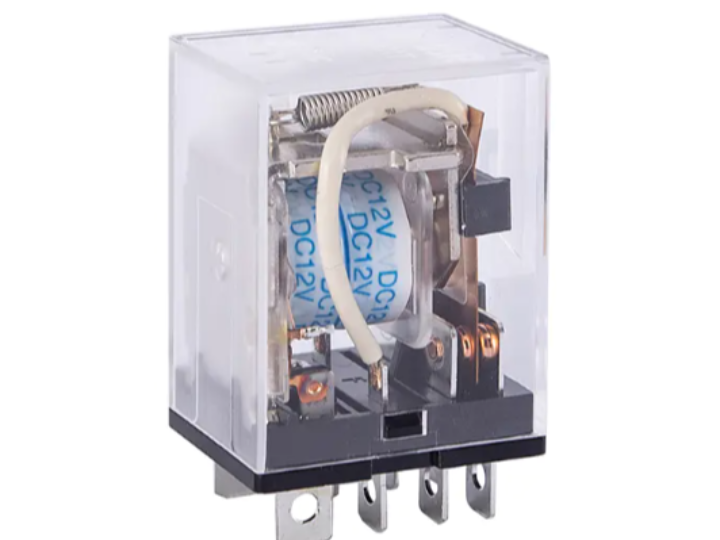

FH37 12A 15A Industrial Relay
Industrial Relay
In the world of industrial control, reliability is not a luxury; it is a necessity. When a relay fails, production lines stall, safety systems are compromised, and maintenance costs escalate. The FH37 12A 15A Industrial Relay has been engineered to address these exact challenges, offering a switching solution that combines high current capacity with exceptional durability. Whether you are designing a new panel or upgrading an existing system, this relay stands as a cornerstone component for critical load management.
Core Specifications and Performance
The FH37 series is defined by its dual-current rating, offering both 12A and 15A configurations to suit varying application requirements. This flexibility allows engineers to standardise on a single relay family while covering a broad range of load types, from resistive heating elements to inductive motor starters.
Key electrical parameters include:
Contact Configuration: DPDT (2 Form C) for versatile control logic
Rated Coil Voltage: Available in standard DC (12V, 24V, 48V, 110V) and AC (110V, 220V, 240V) options
Maximum Switching Voltage: 250VAC / 30VDC
Mechanical Life: Exceeding 10 million operations
Electrical Life: Rated for over 100,000 operations at full resistive load
The contacts are manufactured using silver-alloy technology, ensuring low contact resistance and minimal arcing even under repeated high-current interrupts. This translates directly into longer service intervals and reduced unscheduled downtime.
Design and Construction Advantages
What sets the FH37 apart is its attention to mechanical robustness. The relay features a sealed, dust-proof housing that protects the internal mechanism from particulate ingress, humidity, and mild corrosive atmospheres—common threats in manufacturing plants, HVAC systems, and power distribution cabinets.
The terminal layout has been optimised for secure screw-type connections, accommodating both solid and stranded wires up to 2.5mm². This design reduces the risk of loose terminations, a frequent source of heat generation and intermittent faults. Furthermore, the FH37 incorporates a clear, moulded-in polarity indicator and coil status LED (on illuminated versions), simplifying visual inspection during troubleshooting.
Thermal Management and Safety
High-current switching generates heat, and thermal runaway is a permanent risk with inferior relays. The FH37 addresses this through a high-grade thermoplastic base with a UL94 V-0 flammability rating, combined with generous creepage and clearance distances between contacts and coil terminals. This ensures that even under sustained 15A loads, the relay remains within its safe operating temperature range, preserving both the relay itself and adjacent components.
The relay also meets dielectric strength requirements of 1500VAC between open contacts and 2500VAC between coil and contacts, providing a robust safety margin for transient overvoltage events common in industrial grids.
Application Suitability
The FH37 12A 15A Industrial Relay is a natural fit for:
Motor control circuits (up to 0.75kW at 230VAC)
Lighting and heating banks in commercial and industrial buildings
PLC output interfacing for medium-power loads
Battery charging systems and DC power supplies
Elevator and conveyor control panels
HVAC compressor and fan switching
Its DPDT configuration also allows for redundant switching or simultaneous control of two independent circuits, enhancing design flexibility without increasing panel footprint.
Installation and Maintenance
Mounting is straightforward via standard 35mm DIN rail or panel-mounting tabs, with a plug-in socket option available for rapid replacement. The socket features captive screws and clear terminal numbering, reducing wiring errors during installation. For maintenance personnel, the FH37 offers a test button (on select variants) that permits manual actuation without energising the coil—a valuable feature for loop checking and system commissioning.
Environmental Compliance
The FH37 is manufactured in accordance with RoHS and REACH directives, ensuring that it meets global environmental standards. Its operating temperature range spans from -40°C to +70°C, making it suitable for both cold storage facilities and high-temperature boiler rooms.
