W5500 stuck

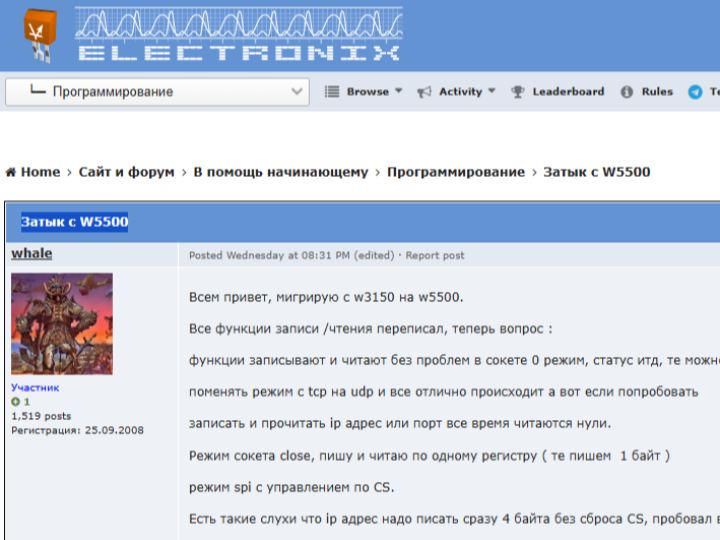

Electronix W5500 Issue — “An Important Signal from a Migration/Technical Support Perspective”
0
Project description
Electronix W5500 Forum Thread - Summary in English 🔴 Problem in One Line Item Content Issue W5500 IP/PORT register write failure (always reads 0x00) Root Cause CS timing issue in SPI transaction (4-byte registers must complete within a single CS cycle) Solution Process all data in one SPI transmission (7 bytes: address 2 + control 1 + data 4) 📊 W5500's Role Overview Layer W5500's Function Core Function Hardware TCP/IP Offload Engine (TOE) - Handles all Ethernet network processing Physical Interface RJ45 Ethernet (external) ↔ SPI/parallel port (MCU communication) Control Method…
