W5500EVB IoT environment data collection, real-time monitoring system
IoT environment data collection, real-time monitoring system using W5500 EVB
10
Components
Hardware components
DFRobot - Gravity: DHT11 Temperature Humidity Sensor For Arduino
x 1
. - GY-30 light sensor
x 1
Project description

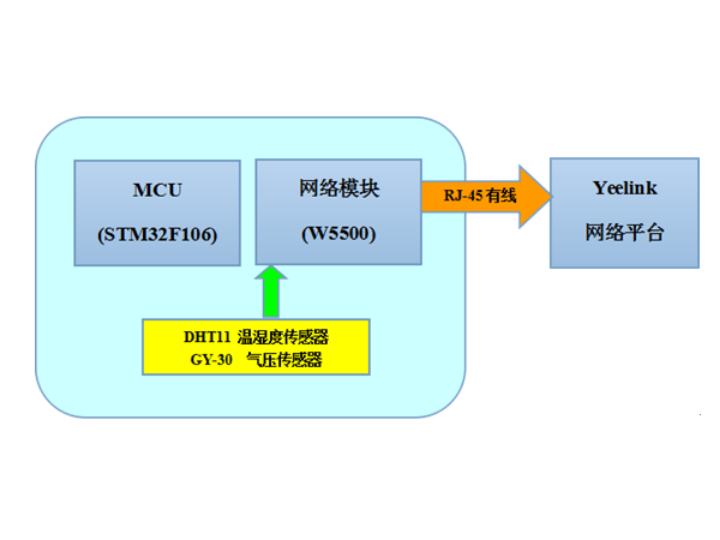

System basic functions: It has the function of collecting environmental information, which can collect the temperature, humidity and light intensity of the environment. With networking function, the collected environmental information can be directly uploaded to the Yeelink cloud platform. With the network viewing function, you can use any networked device to view the information of the collection point on the Internet. The figure shows the system flow chart. W5500EVB (including STM32 microcontroller) + DHT11 temperature and humidity sensor + GY-30 light sensor + router + Yeelink network…
