Home Automation Project Arduino, Ethernet shield, Webserver, 4 relays board & SD card support
DIY home automation project to turn your appliances on or off via internet/wifi using any device.
3
Components
Hardware components
Arduino - Arduino UNO
x 1
Arduino - Arduino 4 Relays Shield
x 1
Arduino - Arduino Ethernet Shield
x 1
Project description

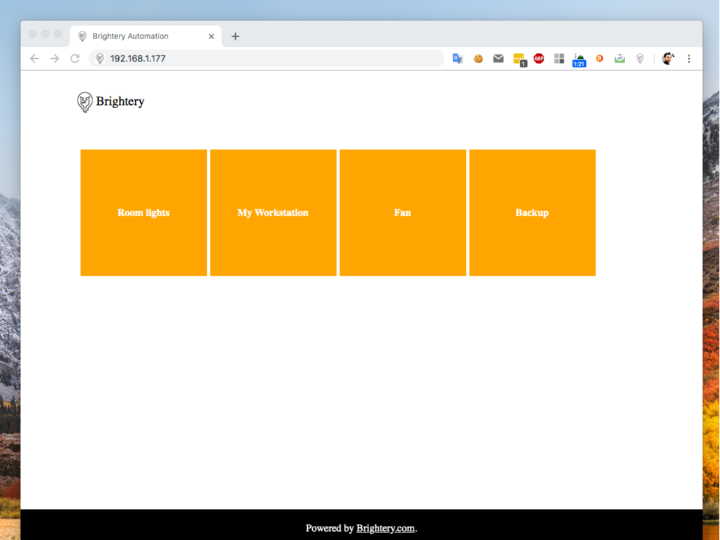

DIY home automation project to turn your appliances on or off via internet/wifi using any device (PC, Mobile, Tablet or any device have access to internet through web browser).
Technology used
- Bootstrap to keep our app responsive and accessable from any device
- Angularjs to quickly bind buttons status from Arduino web service (API)
- jQuery for bootstrap
- CSS3 keyframes feature for a beautiful loading event
Components
- Arduino uno rev3: it's the most used and documented board of the whole Arduino family. it's microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs.
- Ethernet Shield with SD card support: allows an Arduino board to connect to the internet using the Ethernet library, also read and write an SD card using the SD library.
- 4 relays board: control your appliances using 2 states (NO and NC) normally closed circuit and normally opened circuit.
- SD card formatted in Fat16 or Fat32
- Jumber wires
