FPGA expansion board W5500 Ethernet TCP/IP CYPRESS USB2.0 GF interface
FPGA expansion board W5500 Ethernet TCP/IP CYPRESS USB2.0 GF interface
![](/upload/project/4746/cover38.jpg)

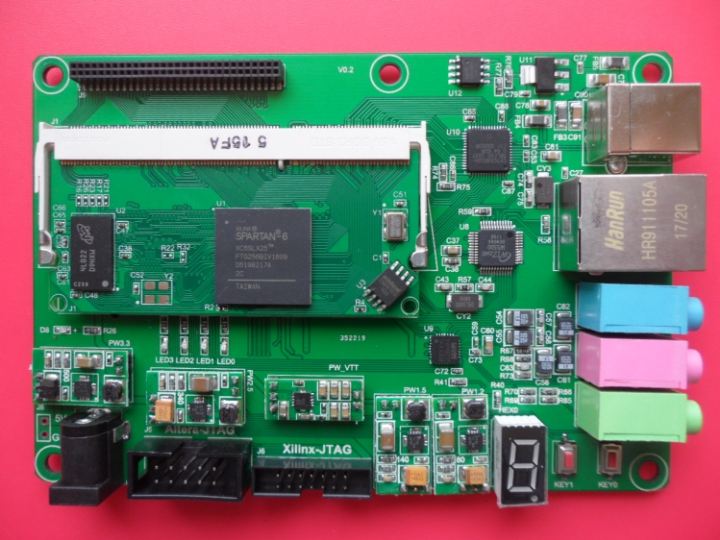

Expansion board front
![](https://img.alicdn.com/imgextra/i2/3479810284/O1CN014Rs3F91Dy76jJDkUA_!!3479810284.jpg)
The expansion board is docked with the Goldfinger core board (this product does not include the Goldfinger core board)
![](https://img.alicdn.com/imgextra/i3/3479810284/O1CN01yf8jZq1Dy76lmdhGq_!!3479810284.jpg)
baby description
![](https://gd3.alicdn.com/imgextra/i3/3479810284/O1CN01PfpUNt1Dy76i4kJ6Y_!!3479810284.jpg)
Expansion board resources:
1. The SO-DIMM-204PIN socket can be connected to various FPGA golden finger core boards in our store.
2. TI power module TPS62130, 3.3V/2.5V/1.5V/1.2V voltage.
3. TI power module TPS51200, DDR reference voltage, current sink and source (Sink and Source).
4. Support Altera and Xilinx standard JTAG download interface.
5. USB2.0 chip CY7C68013A, supports 480Mbps high-speed mode, GPIF interface.
6. Ethernet chip W5500, support 100Mbps, support TCP/IP/UDP protocol, SPI interface.
7. Audio chip WM8731, 24bit ADC/DAC, 96Kbps, IIS interface.
8. User IO expansion socket 2*30PIN.
9. 1 SD socket, 1 digital tube, 2 buttons, 4 LED lights.
Shipping list
1. One expansion board (FPGA_Expand_GF, excluding Golden Finger core board).
2. The development board information is provided by the network disk link.
https://pan.baidu.com/s/1fJxEaR4gV8JMTG-nUfx3FA Extraction code: jy67
(This link contains all the development board materials in this store, please find the corresponding catalog to download according to the keywords)
3. One DC 5V-2A power supply, several copper pillars.
