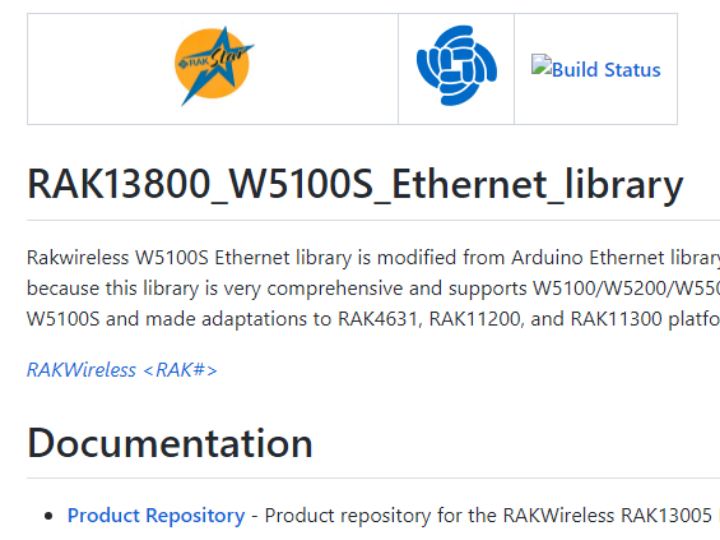

Rakwireless W5100S Ethernet library is modified from Arduino Ethernet library (V2.0.0) for the Arduino platform, because this library is very comprehensive and supports W5100/W5200/W5500 devices. We have added support for W5100S and made adaptations to RAK4631, RAK11200, and RAK11300 platforms.
- Product Repository - Product repository for the RAKWireless RAK13005 LIN Bus module.
- Documentation - Documentation and Quick Start Guide for the RAK13800 Ethernet module.
In Arduino IDE open Sketch->Include Library->Manage Libraries then search for RAK13800.
In PlatformIO open PlatformIO Home, switch to libraries and search for RAK13005. Or install the library project dependencies by adding
lib_deps = RAKWireless/RAK13800_W5100S
For manual installation download the archive, unzip it and place the RAK13800_W5100S folder into the library directory. In Arduino IDE this is usually /libraries/ In PlatformIO this is usually <user/.platformio/lib>
The library provides an interface class, which allows communication with W5100S via SPI. These examples show how to use RAK13800.
- RAK13800_Ethernet_DHCP_W5100S Get an IP address via DHCP and print the address obtained.
- RAK13800_Ethernet_HTTP_Client_W5100S This example connects to a website (http://www.google.com).
- RAK13800_Ethernet_HTTP_Server_W5100S A simple web server that shows the value of the analog input pins.
- RAK13800_Ethernet_MQTT_Publish_W5100S This example connects to a MQTT broker and publishes a message to a topic once a second.
- RAK13800_Ethernet_MQTT_Subscribes_W5100S This example connects to a MQTT broker and subscribes to a single topic. When a message is received it prints the message to the serial monitor.
- RAK13800_Ethernet_TCP_Client_W5100S Establish connection with TCP server and send data.
- RAK13800_Ethernet_TCP_Server_W5100S A simple server can communicate with any connected TCP client.
- RAK13800_Ethernet_UDP_W5100S Receives UDP message strings, prints them to the serial port and sends an "acknowledge" string back to the sender.
This class provides the following methods:
Notes: Below is the important API. For more, please look the official instructions.
**static void begin(uint8_t *mac, IPAddress ip); static void begin(uint8_t *mac, IPAddress ip, IPAddress dns); static void begin(uint8_t mac, IPAddress ip, IPAddress dns, IPAddress gateway); static void begin(uint8_t mac, IPAddress ip, IPAddress dns, IPAddress gateway, IPAddress subnet);
Initializes the ethernet library and network settings.
|in||mac||The MAC (Media access control) address for the device (array of 6 bytes). this is the Ethernet hardware address of your shield. Newer Arduino Ethernet Shields include a sticker with the device's MAC address. For older shields, choose your own.|
|in||ip||The IP address of the device (array of 4 bytes).|
|in||dns||The IP address of the DNS server (array of 4 bytes). optional: defaults to the device IP address with the last octet set to 1.|
|in||gateway||The IP address of the network gateway (array of 4 bytes). optional: defaults to the device IP address with the last octet set to 1.|
|in||subnet||The subnet mask of the network (array of 4 bytes). optional: defaults to 255.255.255.0.|
|return||The DHCP version of this function, Ethernet.begin(mac), returns an int: 1 on a successful DHCP connection, 0 on failure. The other versions don't return anything.|
static void init(uint8_t sspin = 10);
Used to configure the CS (chip select) pin for the Ethernet controller chip. The Ethernet library has a default CS pin, which is usually correct, but with some non-standard Ethernet hardware you might need to use a different CS pin.
|in||sspin||The pin number to use for CS (byte).|
static IPAddress localIP();
Obtains the IP address of the Ethernet shield. Useful when the address is auto assigned through DHCP.
|return||The IP address.|
*static void MACAddress(uint8_t mac_address);
Fills the supplied buffer with the MAC address of the device.
|in||mac_address||Buffer to receive the MAC address (array of 6 bytes).|
static IPAddress gatewayIP();
Returns the gateway IP address for the device.
|return||The gateway IP address for the device (IPAddress).|
void setLocalIP(const IPAddress local_ip);
Set the IP address of the device. Not for use with DHCP.
|in||local_ip||The IP address to use (IPAddress)|
*void setMACAddress(const uint8_t mac_address);
Set the MAC address. Not for use with DHCP.
|in||mac_address||The MAC address to use (array of 6 bytes).|
void setGatewayIP(const IPAddress gateway);
Set the IP address of the network gateway. Not for use with DHCP.
|in||gateway||The IP address of the network gateway (IPAddress)|
static EthernetHardwareStatus hardwareStatus();
Ethernet.hardwareStatus() tells you which WIZnet Ethernet controller chip was detected during
Ethernet.begin(), if any. This can be used for troubleshooting. If no Ethernet controller was detected then there is likely a hardware problem.
|return||which WIZnet Ethernet controller chip was detected during |
