Finik_W5500

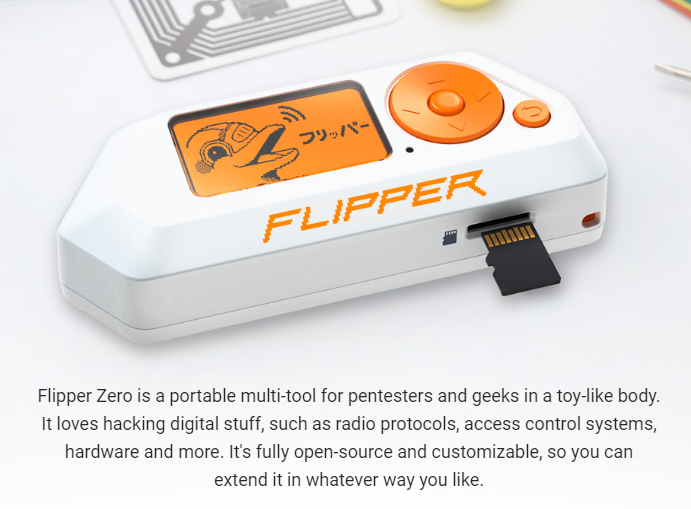

Ethernet PHY W5500 for Flipper Zero
COMPONENTS
Hardware components
WIZnet - W5500
x 1
PROJECT DESCRIPTION
Description
Profile：Ethernet PHY W5500 for Flipper Zero
License: Public Domain
Description
Ethernet PHY W5500 for Flipper Zero
Design Drawing
schematic diagram
PCB
（ 1 / 2 ）
PCB
（ 1 / 2 ）
| ID | Name | Designator | Footprint | Quantity | BOM_Supplier | BOM_Manufacturer Part | BOM_Manufacturer | BOM_Supplier Part | BOM_JLCPCB Part Class |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 100nF | C1,C2,C4,C5,C8,C9,C11 | C0402 | 7 | LCSC | CL05B104KO5NNNC | SAMSUNG(三星) | C1525 | Basic Part |
| 2 | 10uF | C3,C6,C7,C10 | C0402 | 4 | LCSC | CL05A106MQ5NUNC | SAMSUNG(三星) | C15525 | Basic Part |
| 3 | 1kΩ | L1 | L0402 | 1 | LCSC | BLM15HD102SN1D | muRata(村田) | C21516 | Extended Part |
| 4 | 22 | R1,R3 | R0402 | 2 | LCSC | RC0402FR-0722RL | YAGEO(国巨) | C114765 | Extended Part |
| 5 | 12.4K | R2,R7,R9,R10 | R0402 | 4 | LCSC | RC0402FR-0712K4L | YAGEO(国巨) | C138060 | Extended Part |
| 6 | 49.9Ω | R4,R5 | R0402 | 2 | LCSC | RC0402FR-0749R9L | YAGEO(国巨) | C87044 | Extended Part |
| 7 | 330Ω | R6,R8 | R0402 | 2 | LCSC | 0402WGF3300TCE | UNI-ROYAL(厚声) | C25104 | Basic Part |
| 8 | W5500 | U1 | LQFP-48_L7.0-W7.0-P0.50-LS9.0-BL | 1 | LCSC | W5500 | WIZNET | C32843 | Extended Part |
| 9 | XC6206P332MR | U2 | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | 1 | LCSC | XC6206P332MR | TOREX(特瑞仕) | C5446 | Basic Part |
| 10 | 25MHz | X1 | OSC-SMD_4P-L3.2-W2.5-BL_SIT8008BI | 1 | LCSC | S3D25.000000B20F30T | SCTF(星通时频) | C387396 | Extended Part |
Unfold
