RE: [From QnA] WIZ120SR questions
by irina WIZnet ·
Dear customer,
Thanks for your interest in WIZ120SR.

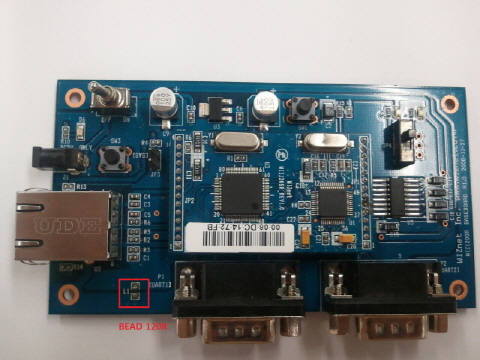

1.red square box is BEAD 120R.
2. L1 have an impedance of 120R at 100MHz.
3.4. You can use whatever resistance or chip you like.
Thanks.
WIZnet
