RE: Wizfi 360 for body wearable appliction
by Aimee0 WIZnet ·
Hi,

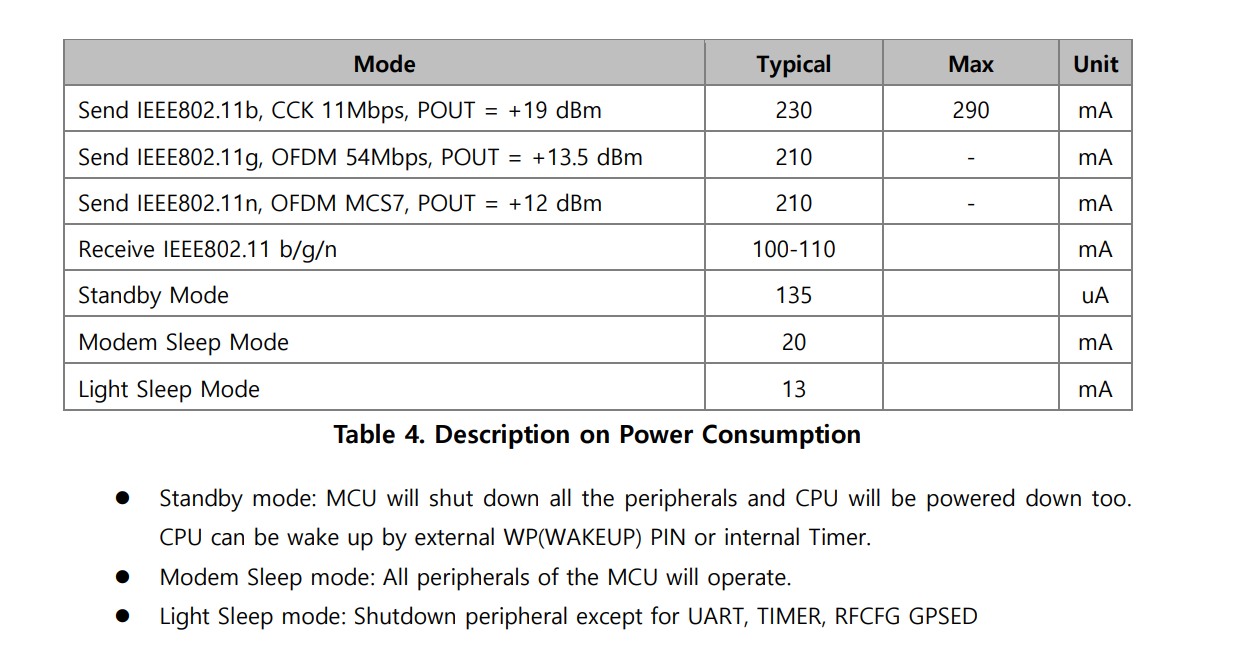

Firmware later than v1.0.2 have sleep mode using AT command.
AT+GSLP will enter standby mode
AT+SLEEP will enter light-sleep mode and modem sleep mode

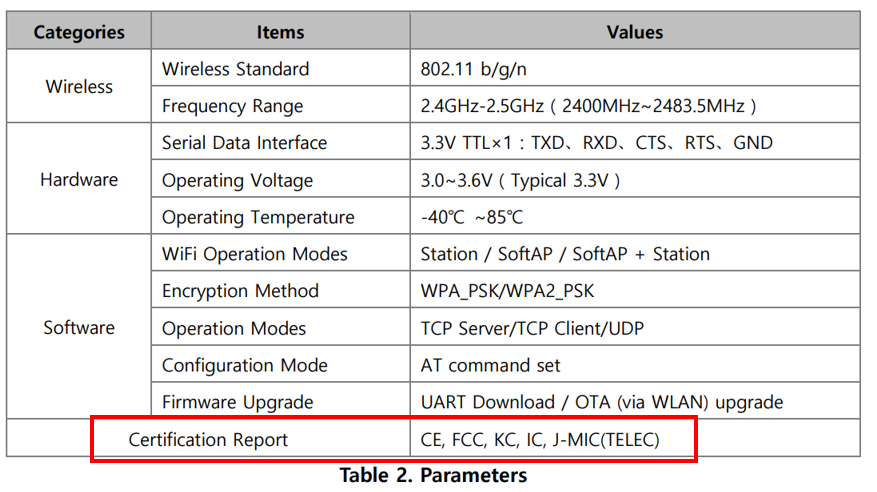

WizFi360 has these certifications.
Refer to datasheet :
( https://docs.wiznet.io/img/products/wizfi360/wizfi360ds/wizfi360_ds_v112_en.pdf )
